Automation Direct DURApulse GS4 - Conduit Box Installation - Frame F

Page A–28
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Appendix A: Accessories

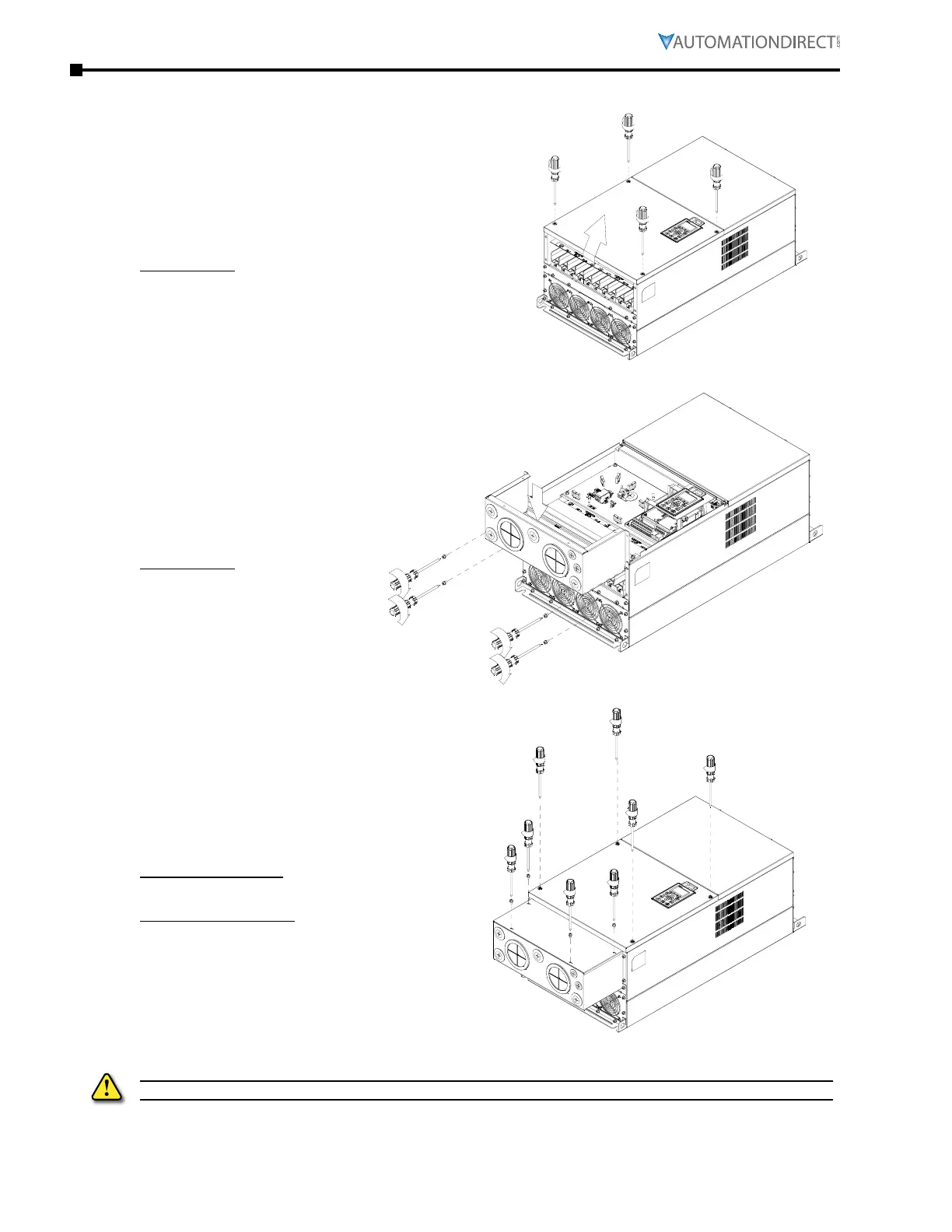

ConduiT box insTallaTion – frame f
Loosen the cover screws to remove the cover, as
shown.
Screw torque: 14~16 kg·cm (12.2~13.9 Ib·in)
2
3
4
1
Install the conduit box by
fastening the 4 screws, as
shown.
Screw torque:
24~26 kg·cm (20.8~22.6 Ib·in)
5
6
7
8
Install the covers of conduit box and driver by
fastening all the screws as shown.
Screw #9~12 torque:
14~16 kg·cm (12.2~13.9 lb·in.)
Screw #13~16 Torque:
24~26 kg·cm (20.8~22.6 lb·in.)
9
10
11
12
13
14
15
16
Remove poWeR fRom dRIve pRIoR to INstAllAtIoN ANd/oR RemovAl of AccessoRIes.
