Appendix A: Accessories

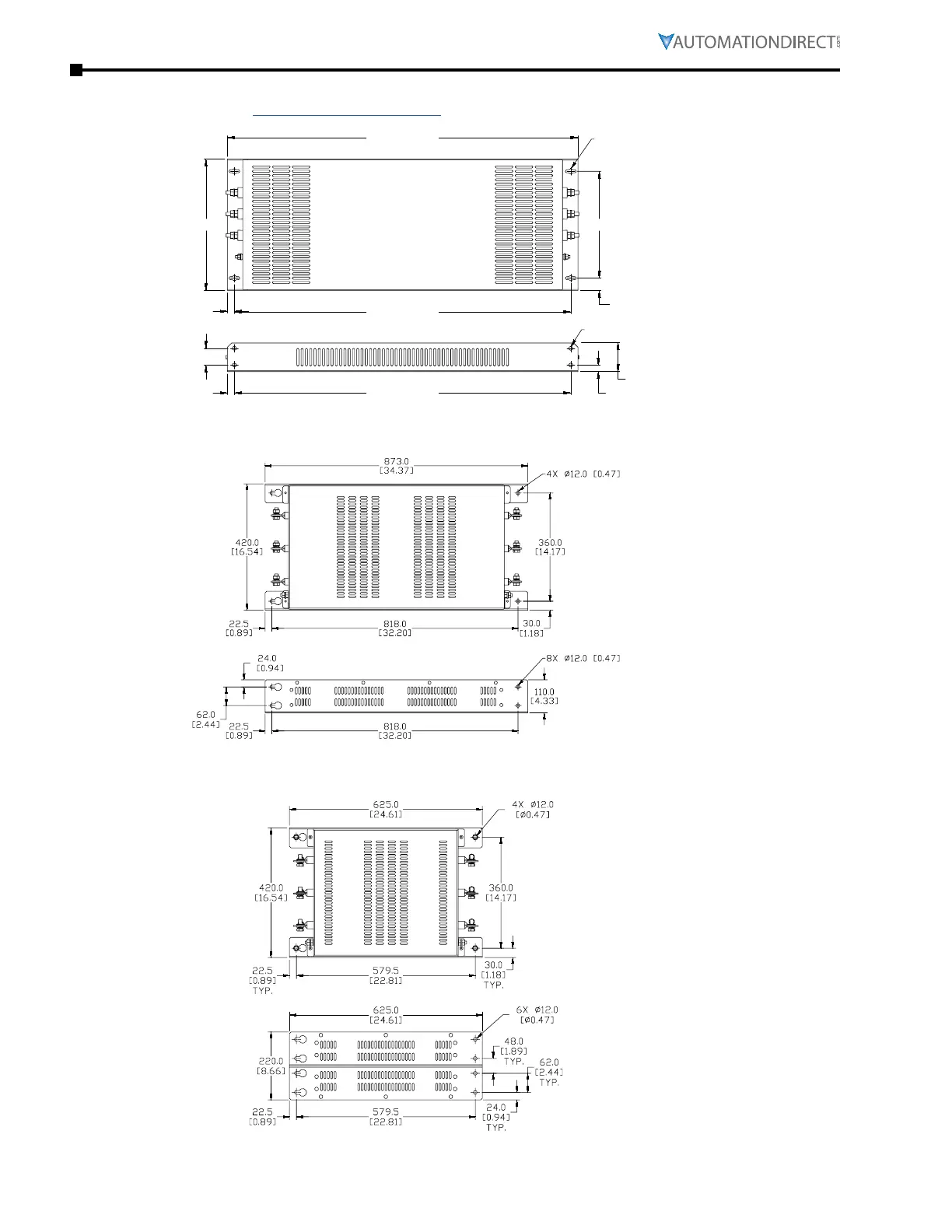

emi filTer dimensions (Units = mm [in])
See our website: www.AutomationDirect.com for complete engineering drawings.
229.0 [9.01]
618.0 [24.32]
4x Ø11.0[0.43]
160.0 [6.30]
20.0 [0.79]
34.5 [1.36]
578.0 [22.75]
4x Ø7.0[0.28]
68.2 [2.68]
18.2 [0.72]
20.0 [0.79] 578.0 [22.75]
35.0 [1.38]
MIF3150
MIF3400B
MIF3800
