Page A–16
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Appendix A: Accessories

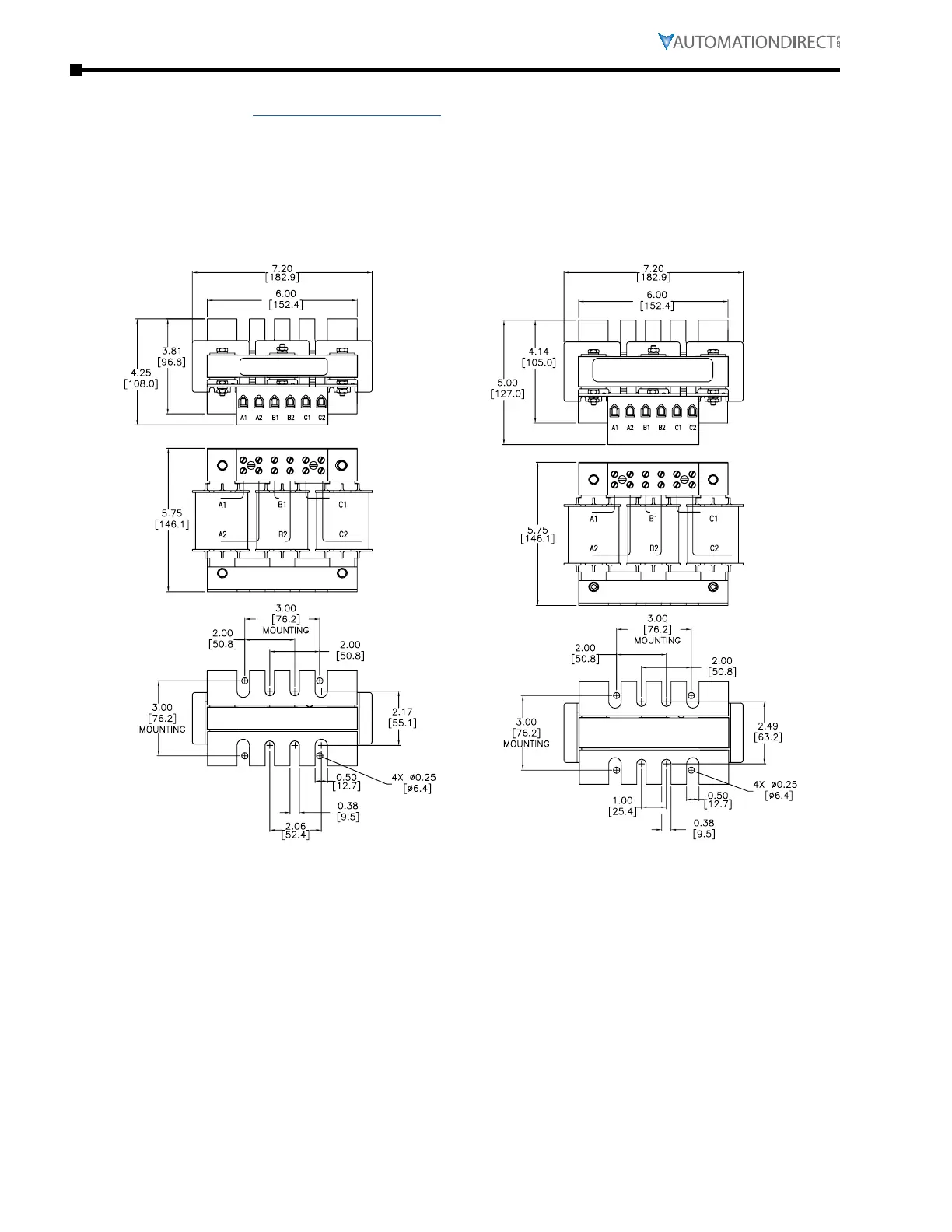

line reaCTor dimensions (Units = in [mm])
See our website: www.AutomationDirect.com for complete engineering drawings.
Mounting feet with multiple mounting slots allow replacement of most other reactors using
existing mounting holes. Use four bolts to mount the LR reactors.
LR-2010, LR-2015, LR-2020, LR-4025, LR-4030 LR-2025, LR-4040
