Page A–18
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Appendix A: Accessories

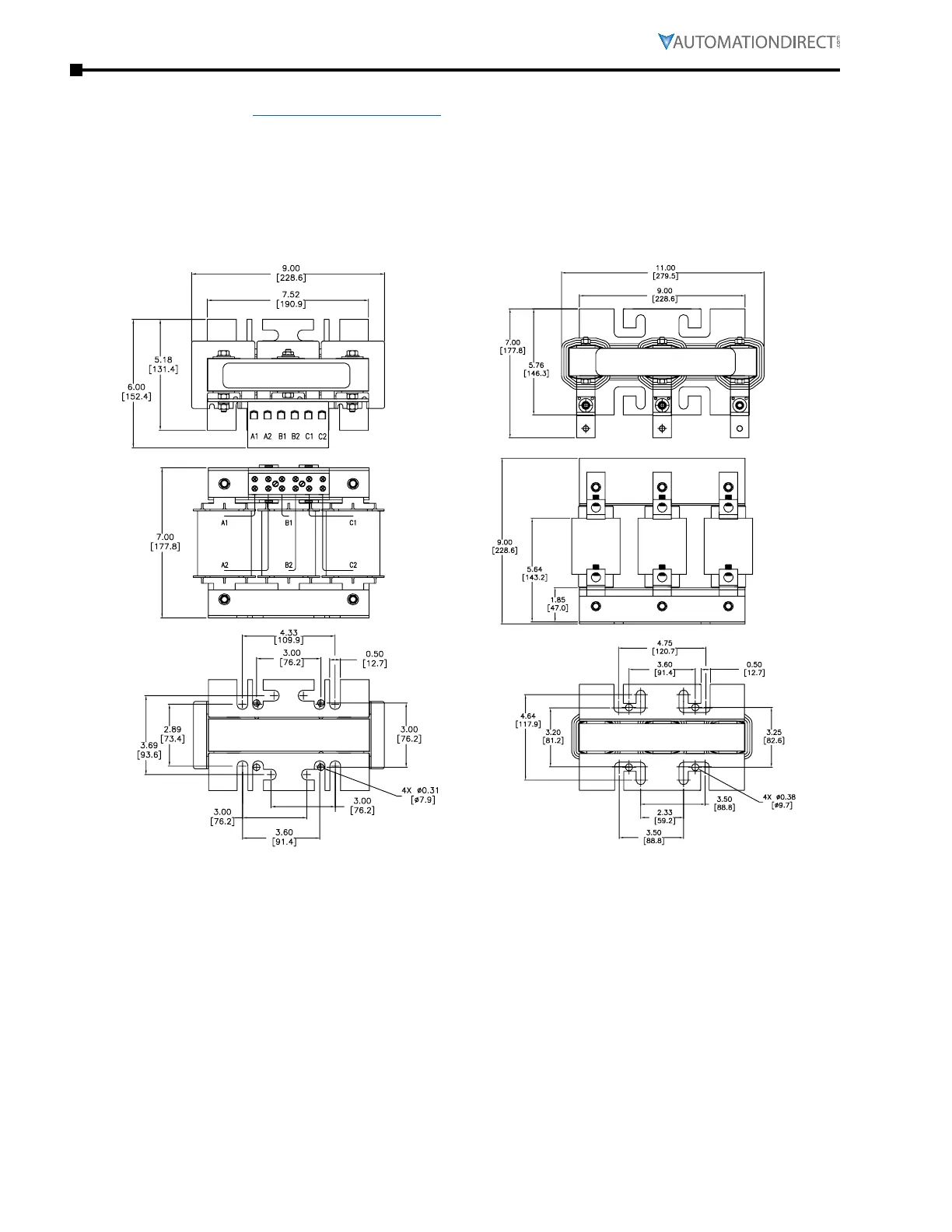

line reaCTor dimensions (Units = in [mm])
See our website: www.AutomationDirect.com for complete engineering drawings.
Mounting feet with multiple mounting slots allow replacement of most other reactors using
existing mounting holes. Use four bolts to mount the LR reactors.
LR-4050, LR-4060 LR-4100, LR-4125, LR-4150
