Page A–22
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Appendix A: Accessories
single-phase appliCaTions

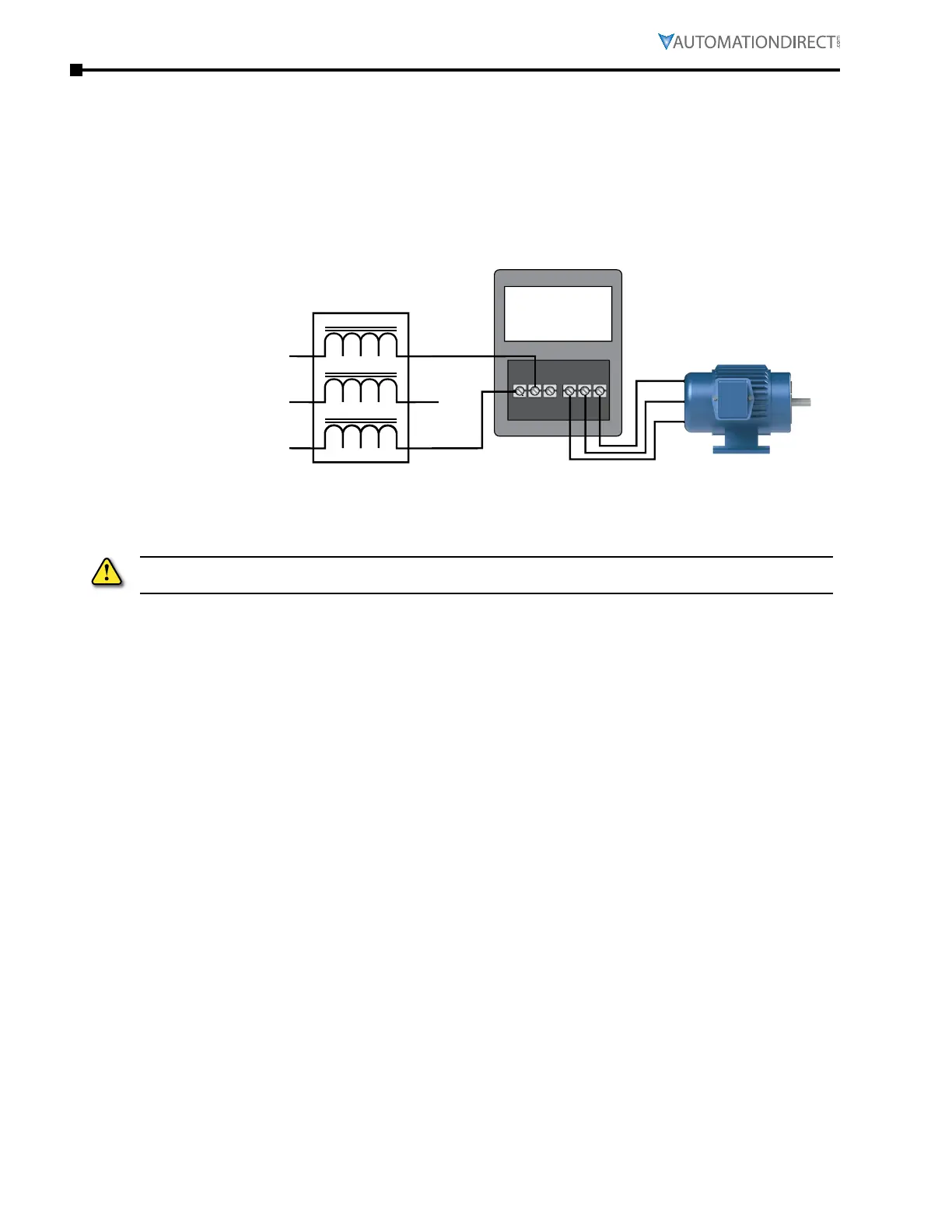

Some three-phase line reactors are listed for use with single-phase input power. Follow the
connection diagram shown below. Make sure that terminals B1 and B2, if present, are properly
insulated before any connections are made. If a 3-phase reactor is used on the line side of a
single-phase input drive application, ensure that the actual single-phase current does not exceed
the Line Reactor's current rating (example: a 3-phase, 5hp Line Reactor and 3-phase 5hp drive will
not handle enough current to power a 5hp motor on a single-phase supply - both the drive and the
Line Reactor will have to be upsized).
C1
A2
B2*
C2
A1
*B1
GS4 Drive
T1
T2
T3
L1
L2
*LR series 1-phase reactors do not include a B-phase winding.
Reactor
Incoming power and
external circuit protection
provided by customer
Please refer to "Chapter 2: Installation and Wiring" for detailed wiring information for the GS4 drive.
eNsuRe thAt you pRopeRly INsulAte teRmINAls b1 ANd b2 befoRe mAkING ANy coNNectIoNs
to sINGle-phAse poWeR.
