Appendix A: Accessories
ConduiT box insTallaTion – frames d0 and d

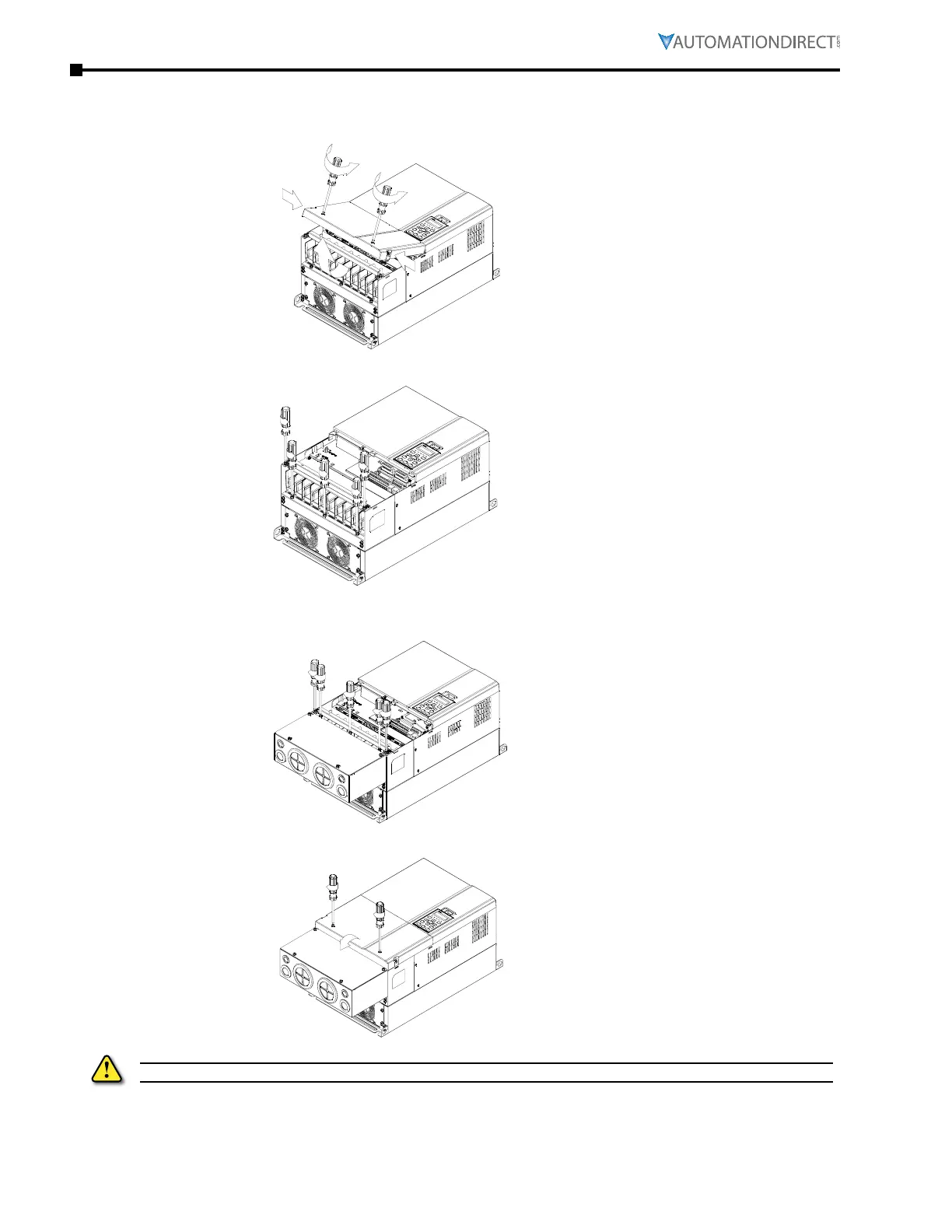

Loosen the cover screws and press the tabs on each side of the cover to remove the cover, as
shown in the following figure. Screw torque: 10~12 kg·cm (8.66~10.39 lb·in).
Remove the 5 screws shown in the following figure. Screw torque: 24~26 kg·cm (20.8~22.6 lb·in).
Install the conduit box by fastening the 5 screws shown in the following figure.
Screw torque: 24~26 kg·cm (20.8~22.6 lb·in).
Fasten 2 screws shown in the following figure. Screw torque: 10~12 kg·cm (8.66~10.39 lb·in).
Remove poWeR fRom dRIve pRIoR to INstAllAtIoN ANd/oR RemovAl of AccessoRIes.
