Automation Direct DURApulse GS4 User Manual

Appendix A: Accessories
Page A–35
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

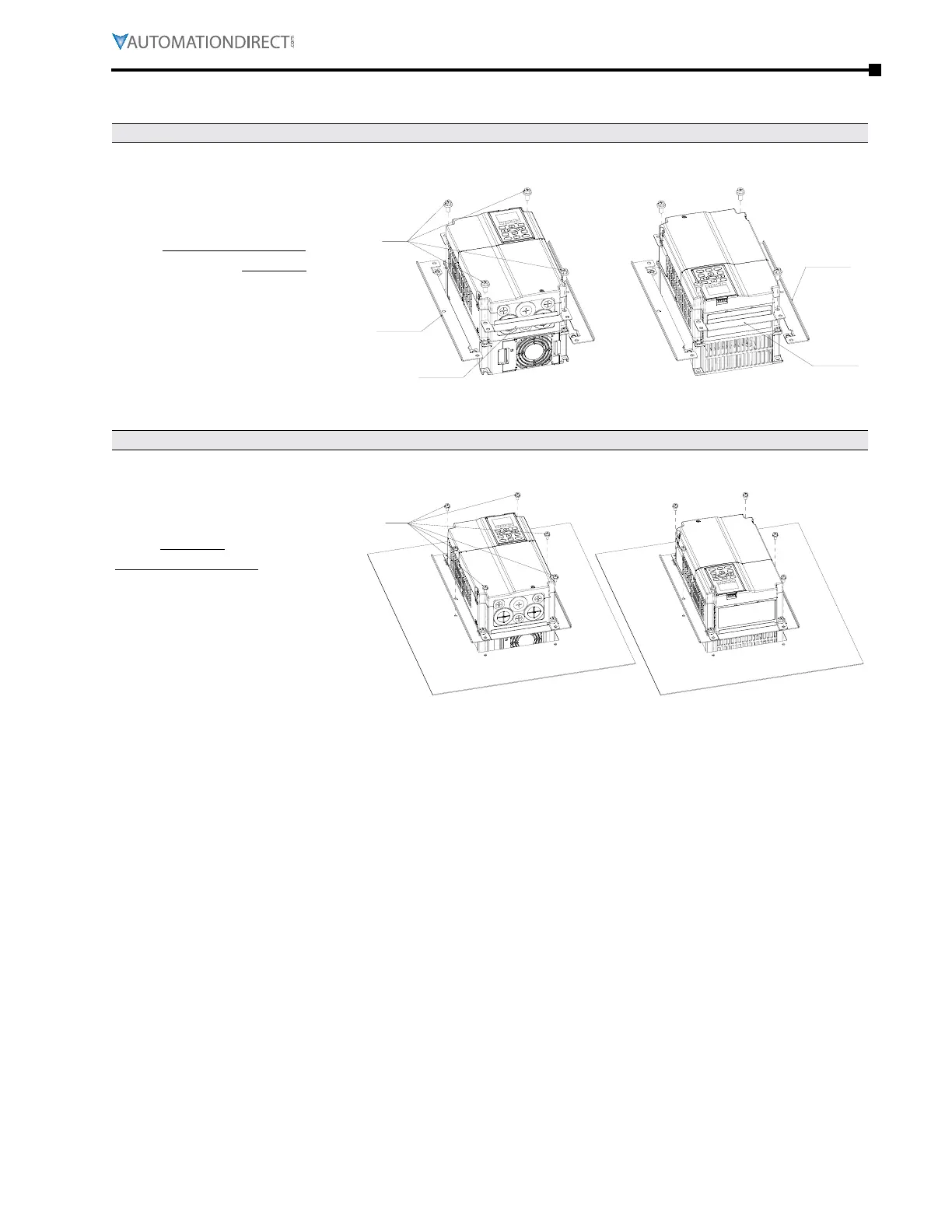

gs4-fmkiT-b insTallaTion
STEP 1
Install accessories 1 and 2 by
fastening 4 of the screws 1 (M8).
Screw torque:
40 - 45 kg·cm (34.7 - 39.0 Ib·in).
SCREW 1
A
CCESSORIES 1
ACCESSORIES 2
ACCESSORIES
2
ACCESSORIES 1
STEP 2
For plate installation, place 6
of the screws 2 (M6) through
accessories 1 and 2 and fasten to
the plate.
Screw torque:
25 - 30 kg·cm (5.21 - 6.94 Ib·in).
SCREW 2
