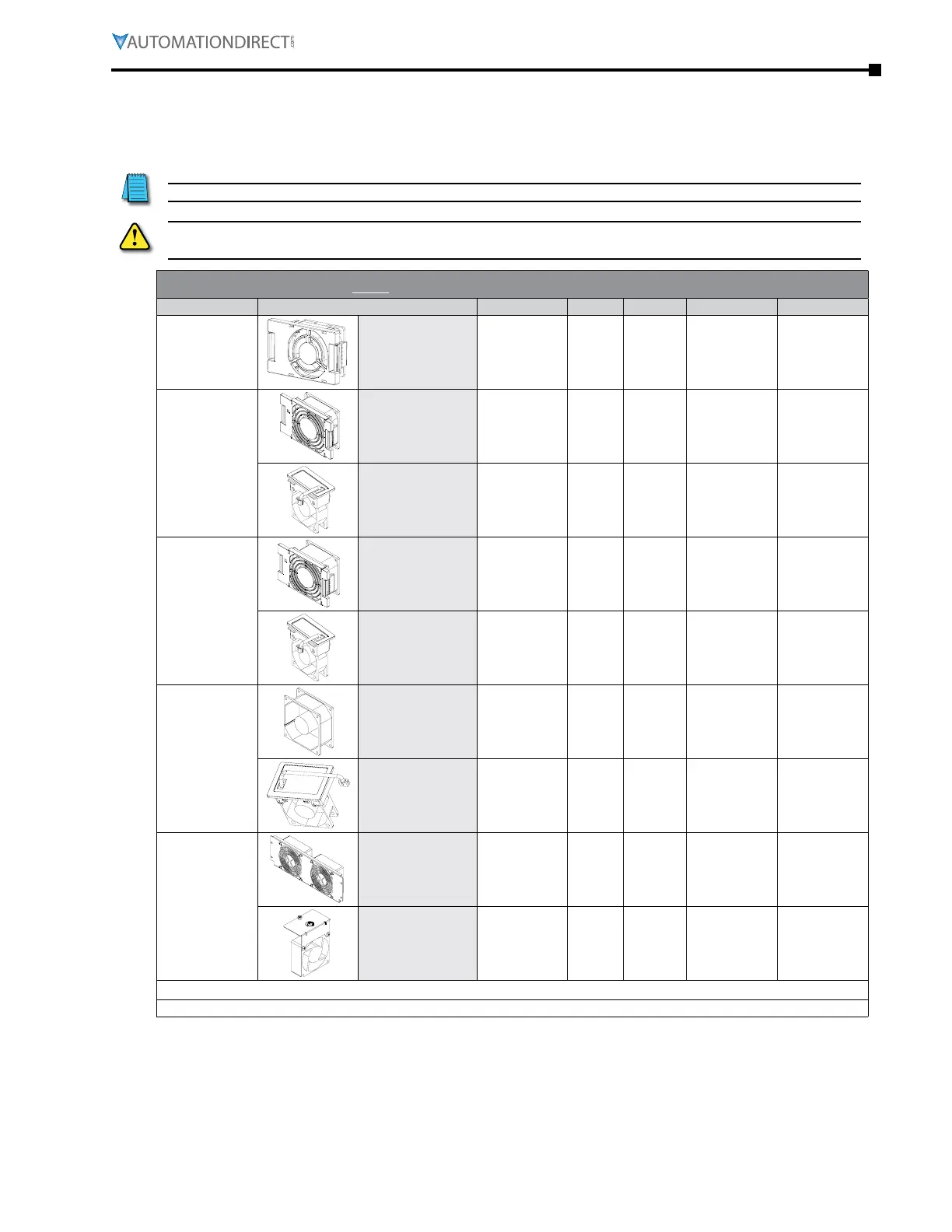

sPare fan kits
Most GS4 drives have built-in cooling fans, and replacement fans are also available. These fans are
direct replacements for the internal factory-installed fans.
Installation instructions are included in this Appendix.
fAN ReplAcemeNt should oNly be peRfoRmed by peRsoNNel skIlled IN the dIsAssembly ANd RepAIR of
vARIAble fRequeNcy Ac dRIves.
GS4 230V Models – (GS4-2xxx) – Fan Selection Table
Drive Model Fan Model * Description Size Voltage Amps / Fan Fans / Kit
GS4-22P0
GS4-23P0
GS4-25P0
GS4-FAN-AM Frame A main 40mm 24 0�15 1
GS4-27P5
GS4-FAN-BM1 Frame B main 80mm 24 0�33 1
GS4-FAN-BB
Frame B
board level
40mm 24 0�18 1
GS4-2010
GS4-2015
GS4-FAN-BM2 Frame B main 80mm 24 0�51 1
GS4-FAN-BB
Frame B
board level
40mm 24 0�18 1
GS4-2020
GS4-2025
GS4-2030
GS4-FAN-CM Frame C main 92mm 24 0�75 1
GS4-FAN-CB1
Frame C
board level
40mm 24 0�18 1
GS4-2040
GS4-2050
GS4-FAN-DM
Frame D
main
92mm 24 0�75 2
GS4-FAN-DB
Frame D
board level
70mm 24 0�33 1
* Electrical connectors are included.
(continued next page)
