Appendix B: Optional I/O and Communication Cards
Page B–3
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

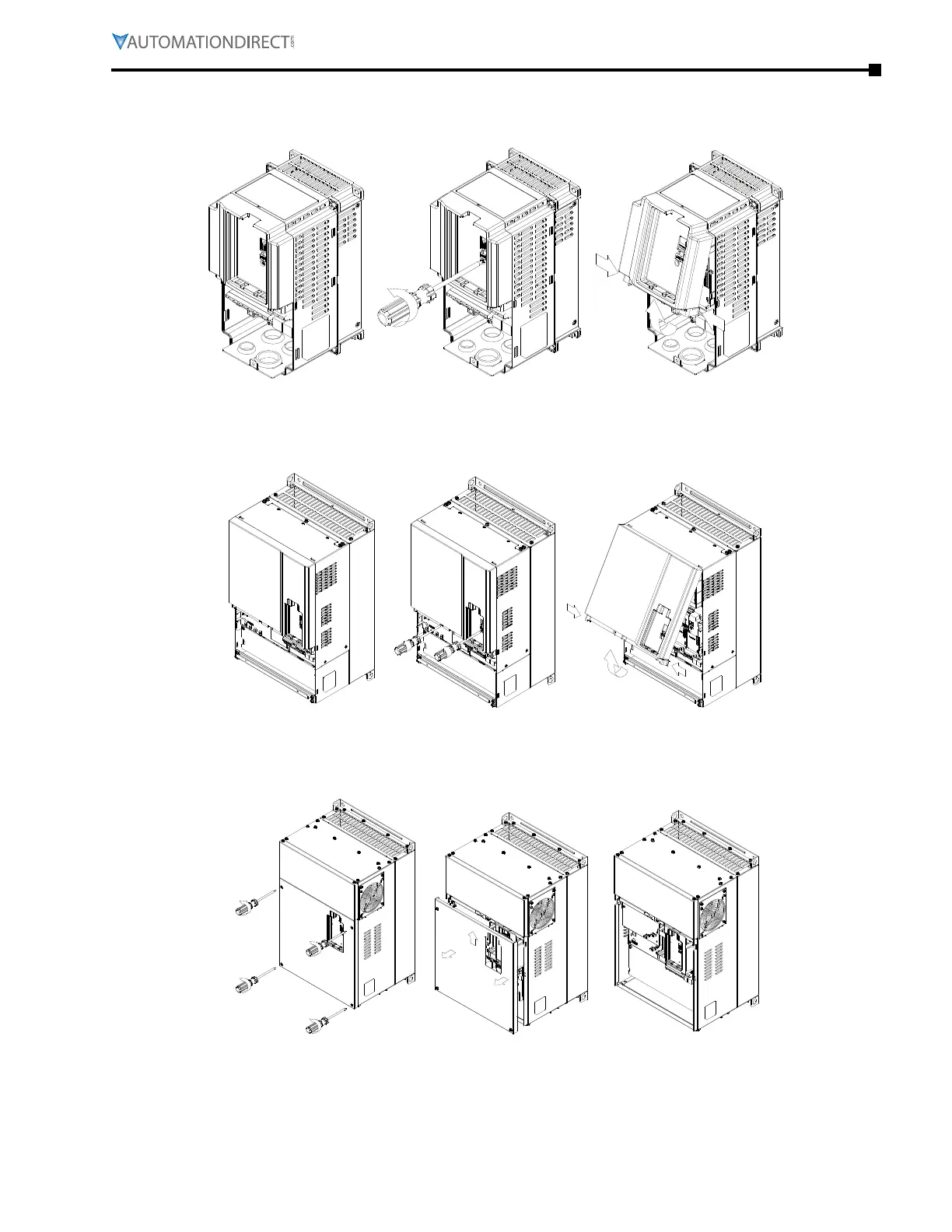

drive frames a, b, and C
Remove the cover screw and press the tabs on both sides to remove the cover.
Cover screw torque is 6.9~8.7 in·lb [0.78~0.98 N·m].
drive frame d
Loosen the captive screws and press the tabs on both sides to remove the cover.
Cover screw torque is 6.9~8.7 in·lb [0.78~0.98 N·m].
drive frames e, f, and g
Loosen the captive screws, lift the cover slightly and pull it outward to remove (Frame E shown).
Cover screw torque is 10.4~13.0 in·lb [1.18~1.47 N·m]
