Page D–18
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Appendix D: Using GS4 AC Drives with AutomationDirect PLCs
PrOgraM exaMPles Using aUtOMatiOnDireCt CliCk PlC
modbus rTu CliCk program example

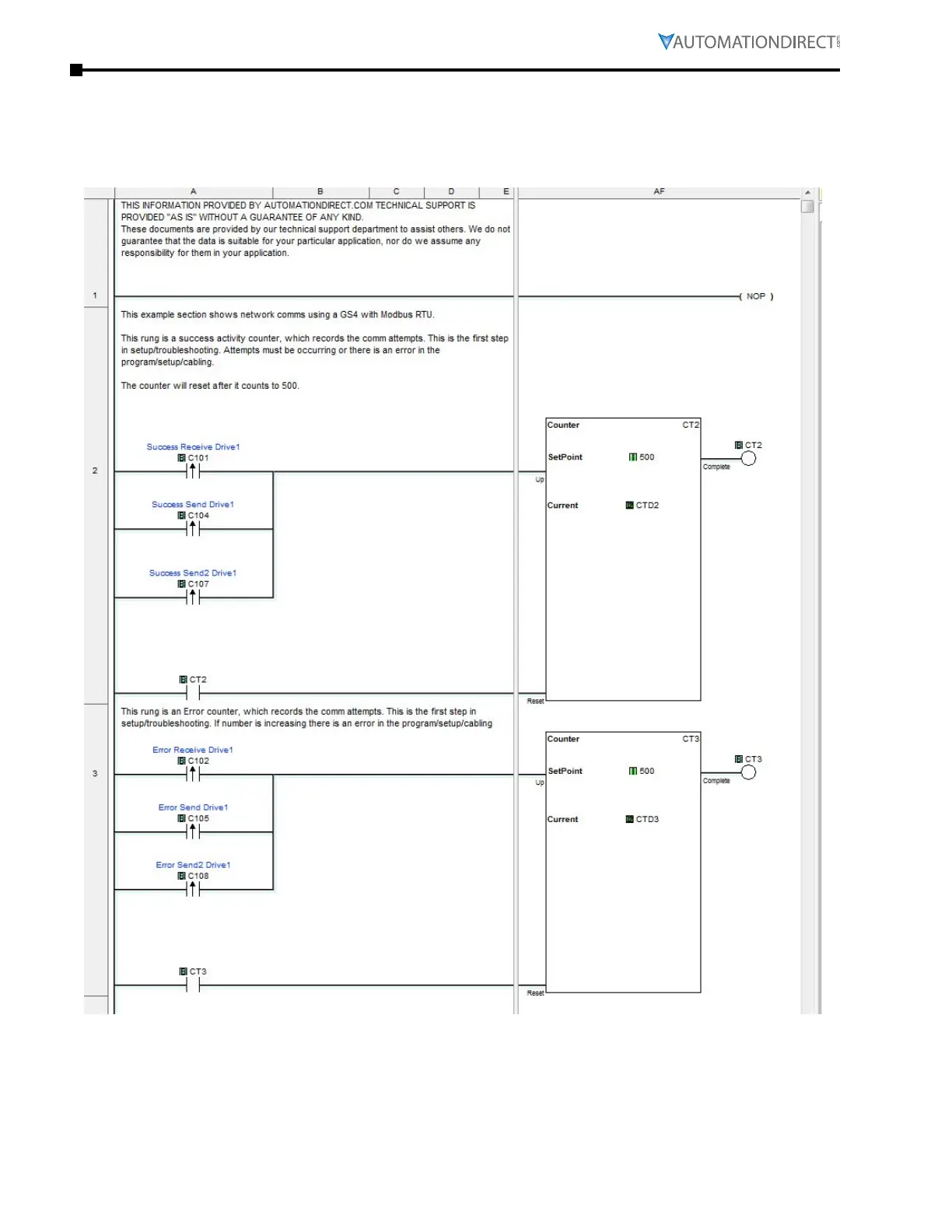

This example section shows CLICK ladder logic designed to show a method of establishing and
monitoring network communications when using two GS4 drives with Modbus RTU.
