Chapter 2: Installation and Wiring
Page 2–13
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

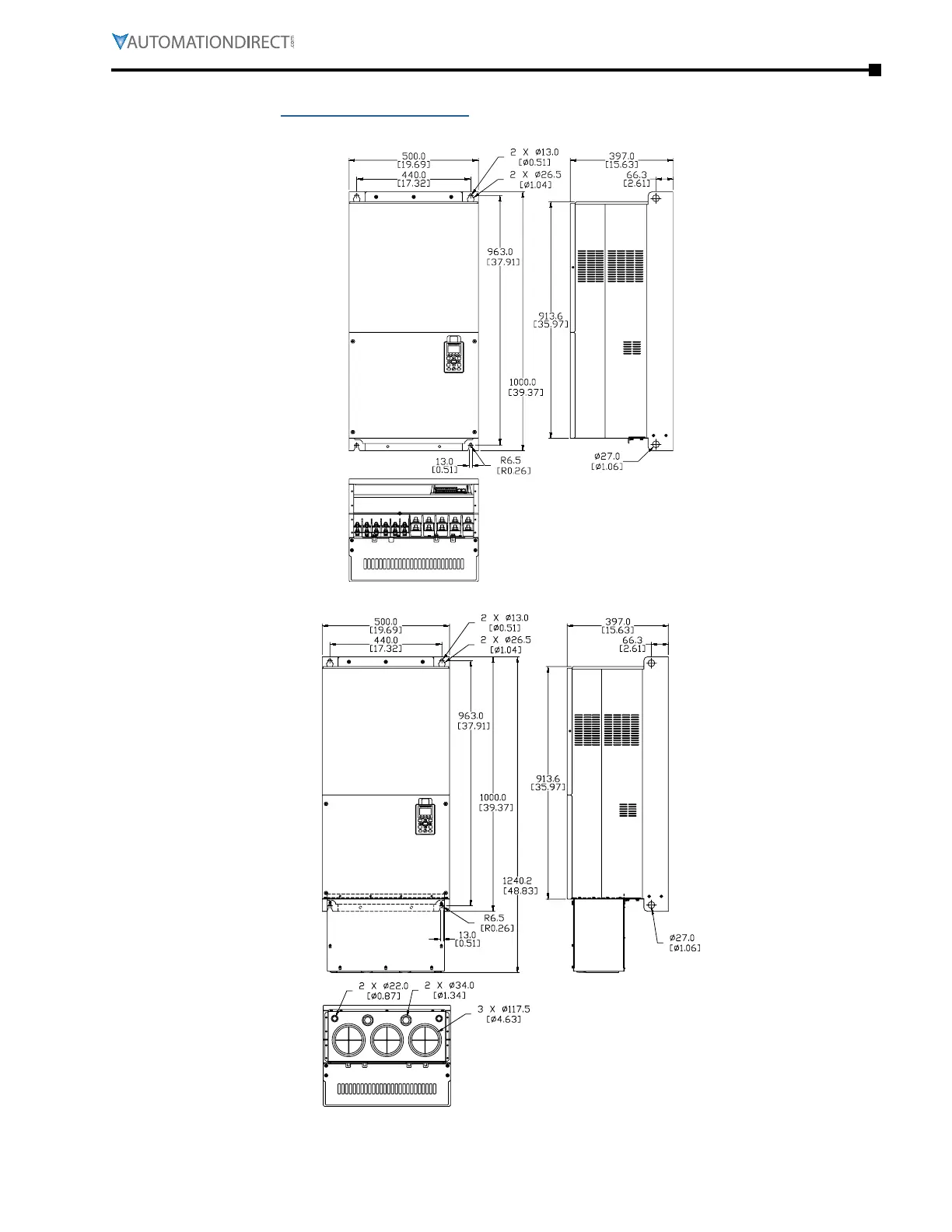

dimensions (Units = mm [in])
See our website: www.AutomationDirect.com for complete engineering drawings.
frame size g (noT Capable of flange moUnTing)
frame size g WiTh ConduiT box (noT Capable of flange moUnTing)
