22. TI Loop
2. 2. Rem ove the clip holding lens in place.
3. 3. Lift out the lens.
Note: The Blue Loop lense 4 is NO T directional.

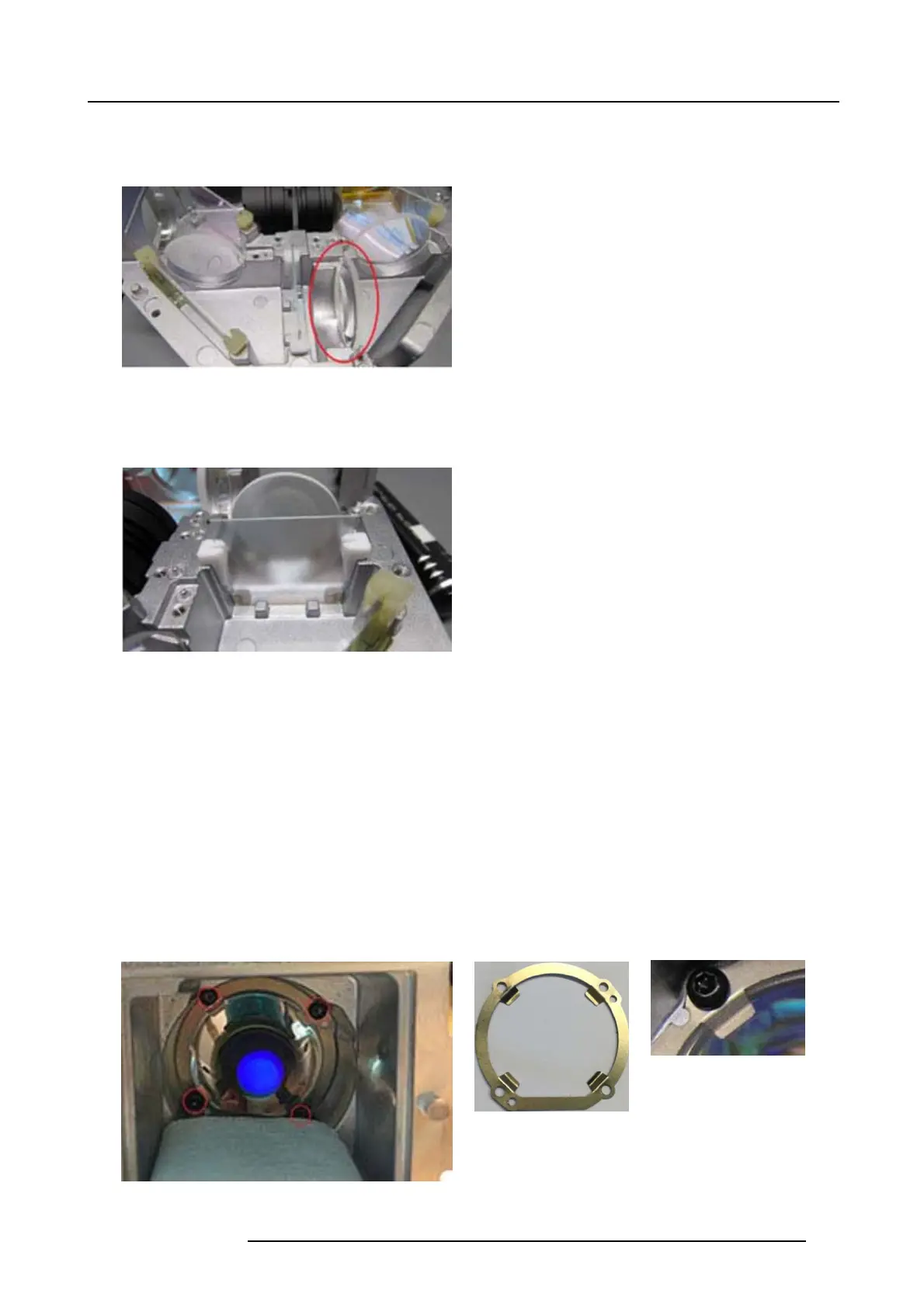

Image 22-11
22.2.8 Diffusor blue loop
1. 1. Use the wed ges to gently pull out the diffusor.
Image 22-12
22.2.9 390 RGBY Converging Lenses
Each T I Loop is equipped with 2 C onverging Lenses, one at the entrance and one at the exit of the loop.
•Alwaysusefinger cots or gloves when handling lens elements
• NOTE direction of lens when reinstalled. T he flat surface should be facing outwards towards Laser cluster, curved/concave
side in.
• NOTE direction of clip when mounting. The four ( 4) center flaps should point inwards.
22.2.9.1 Converging Lens (Entrance)
1. Place a cloth or similar on the entrance floor to p
rotect the lens in cas e it falls whe n screws/clips is released.
2. Remove 4 screws (Tx8 M2.5x6) releasing the c lip and lens.
3. Assemble in reverse order.
Image 22-13
Image 22-14
Image 22-15
723–0016 F90 01/12/2017 115
