21. DMD, DMD Board, CLGA & DMD heatsink elements
21.8 Remove the Laser Interface
The Laser Interface m us t be replaced as a comp lete assembly in the unlikely event of RO D or d iffusor d amag e.
• Laser cluster must be removed prior to this operation.
• Temp sensor and safety switch mu st be loosened before removing laser interface.
Take note o f the spacer below the left laser interface.
1. Release two screws (TX 20 m50X45) opening the Dow Ta il clamps . This will release the laser interface form the T I loop (not
necessary to open fully).
2. Remove two screws securing the laser interface to the base plate (Tx20 M4x12)

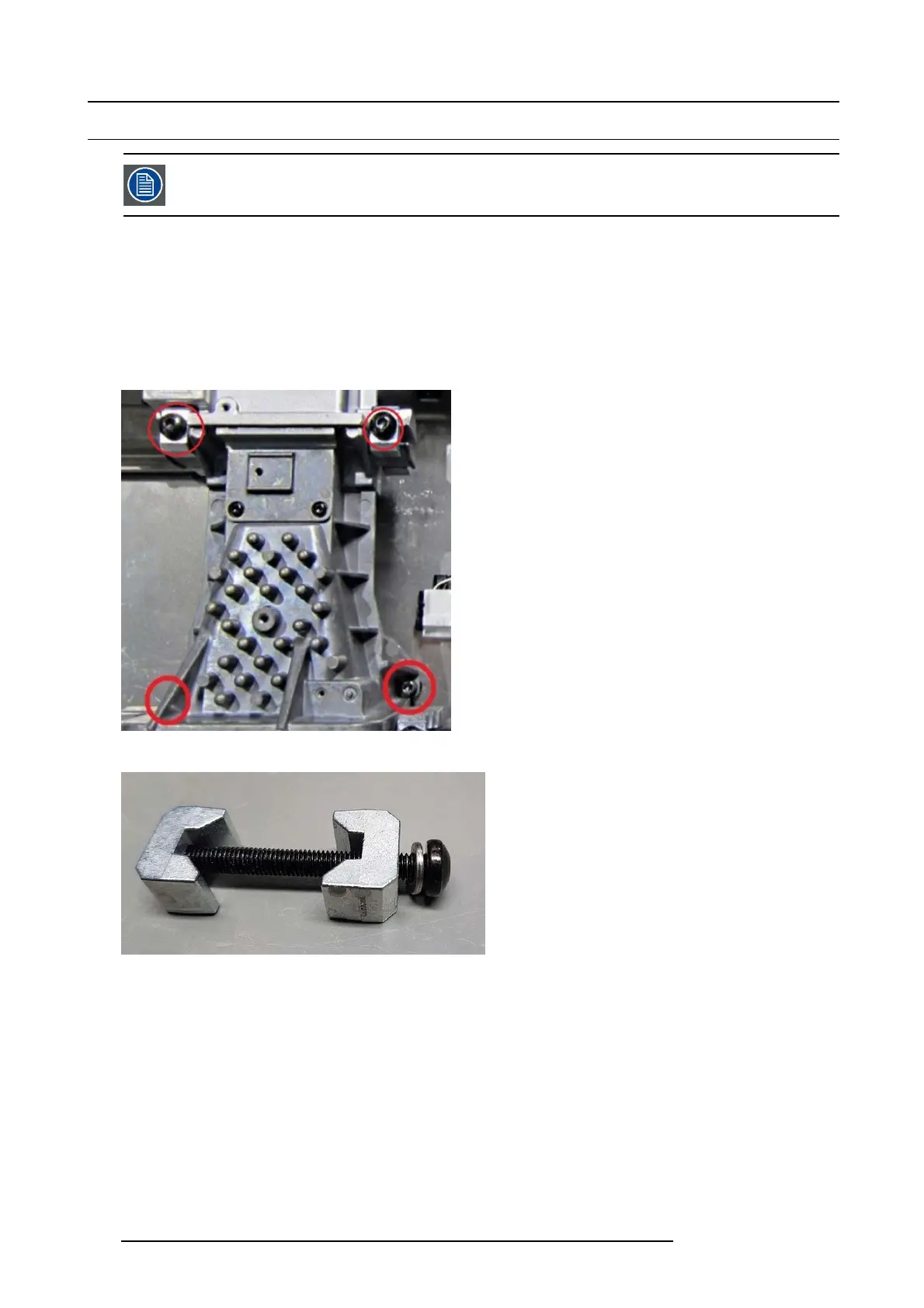

Image 21-14
Image 21-15
108 723–0016 F90 01/12/2017
