20. Scheduled operations

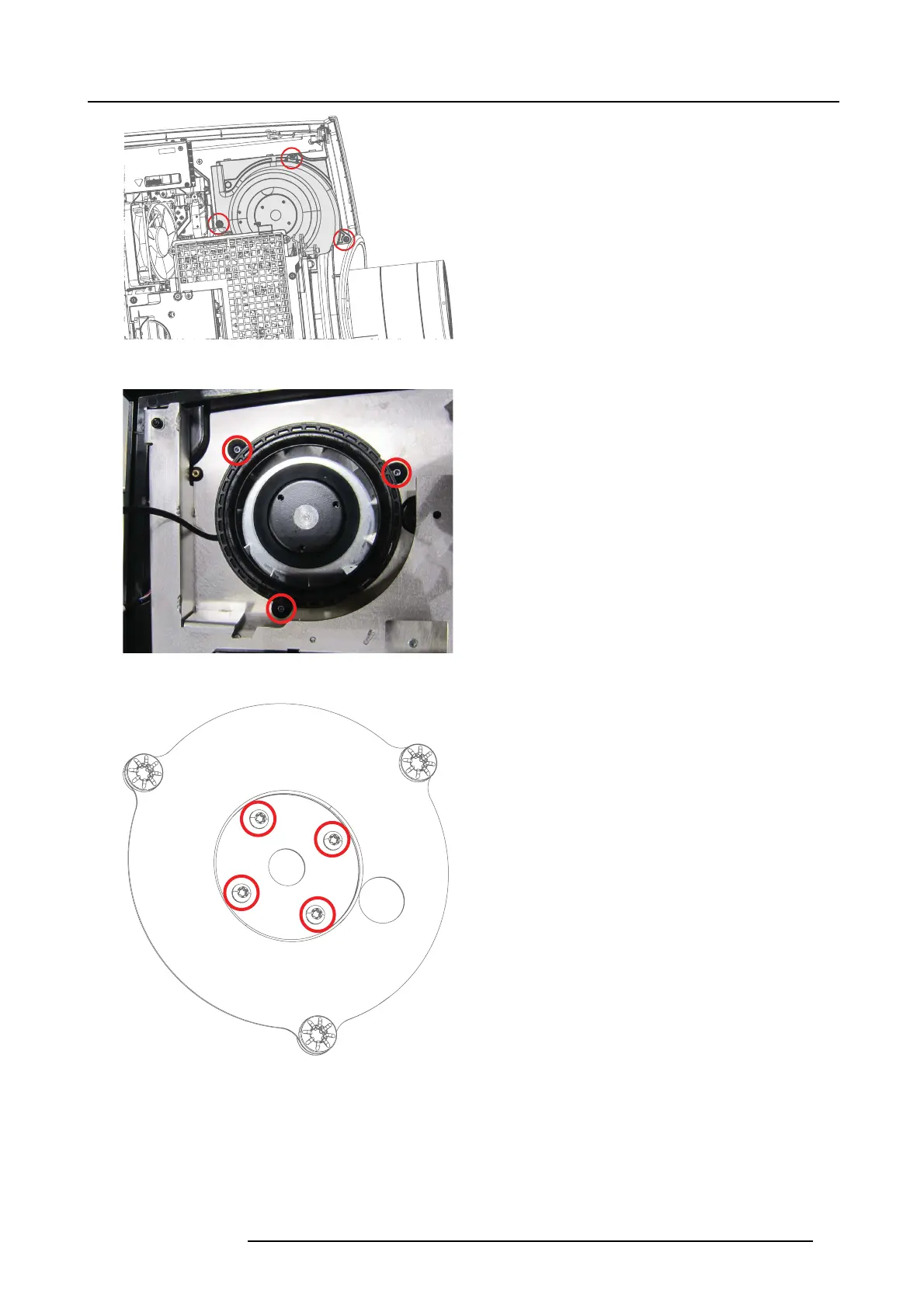

Image 20-14
4. Release fan assembly by removing 3 screws (TX10 M3x 8 w/washer)
Image 20-15
5. Separate fan from bracket by releaseing 4 screws (TX20 M4x10)
Image 20-16
20.2.5 Laser Clusters Blue (2pcs)
About
In order to ease access to the laser clusters, the PSU may be removed. S ee "PSU", page 136
TheGP6hastwobluel
aser clusters, which provide blue laser light to two separate so-called “TI Loops”.
723–0016 F90 01/12/2017
91
