24. Lens shift assembly
24. LENS SHIFT ASSEMBLY
The lens shift a ssembly is a complex device offered as one co mplete assy in the unlikely ev ent of m echanical malfunction. O nly the
following components are separately available.
1. 400-0909-xx Lens shift Motors
2. 534-0031-xx Lens position sensors (390 Sensor Optical End H)
3. 504-008 7-xx PCB Lens c onn (P ogo p in board).
4. Lens lock/scheimplug screws

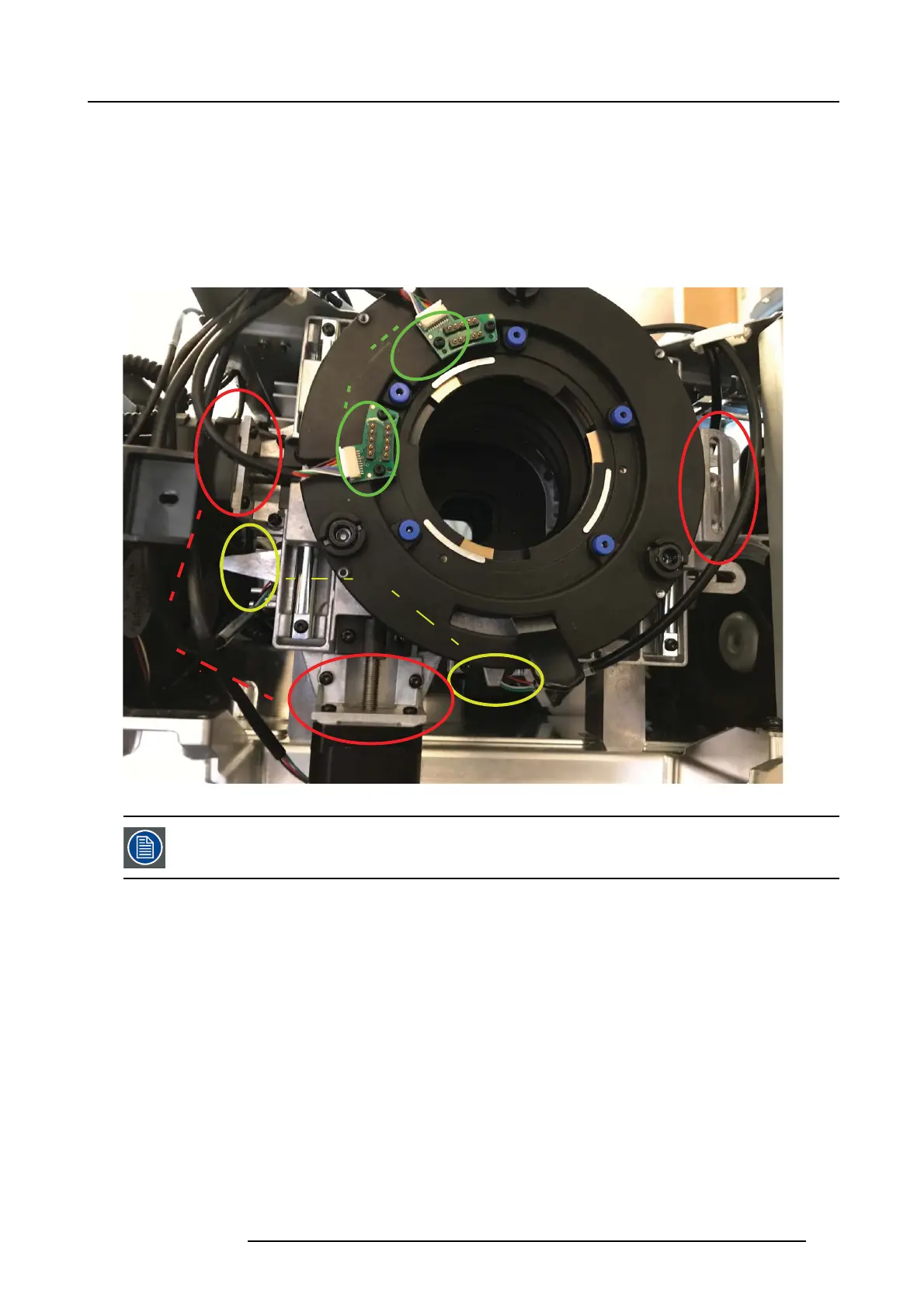

Image 24-1
These components are all accessible/remov able without taking out the comp lete lens shift assembly (provides
that the lens shift mech anism is centered). If lens shift needs to com e out, see "Lens shift assemb ly and
optical actuator", page 126
Dependent on the position of the lens s hift me chanism, it may be necessary to manually turn the lead screw to expose t he screws
8mm hex nut
723–0016 F90 01/12/2017 123
