17. Troubleshooting
17. T ROUB LESH OOTING
17.1 Status LED indications
The status LE D o n the rear top of the projector, has only one indication; constant red illumination. T
hisindicatesamajorsystem
failure. A mor e complementary indication w ill come on later versions of the software.
17.2 LED’s on Thermal Hub a nd Mainboard.
On the Thermal Hub boa rd and the Main board, there are several LED’s which will illuminate if a failure occurs on the board. It is
primarily the different voltages on the boards which are monitored, but also some other control parameters. The table and figures
below show the failure matrix and the location of the different LED’s.
17.2.1 Thermal Hub Board LED’s.
Thermal Hub board failure indications
Ref. D es.
(Component No.)
Function Failure Illumination color
when failure
Silk screen print Comm e nt
DS 17 Supply v oltage fail
1,2V Red 1V2 Voltage outside
specification
DS 16 Supply v oltage fail
2,5V Red 2V5 Voltage outside
specification
DS 18 Supply v oltage fail 3,3V Red 3V3 Voltage outside
specification
DS 15 Supply v oltage fail
5V Red 5V Voltage outside
specification
DS 14 FPGA not configured
NA Red
FPGA_Done FPGA failure — no
data loaded
DS 3 SW signalling /
general purpose
NA Not Specified Busy Not specified
DS 7 SW signalling /
general purpose
NA Not specified Flag Not specified

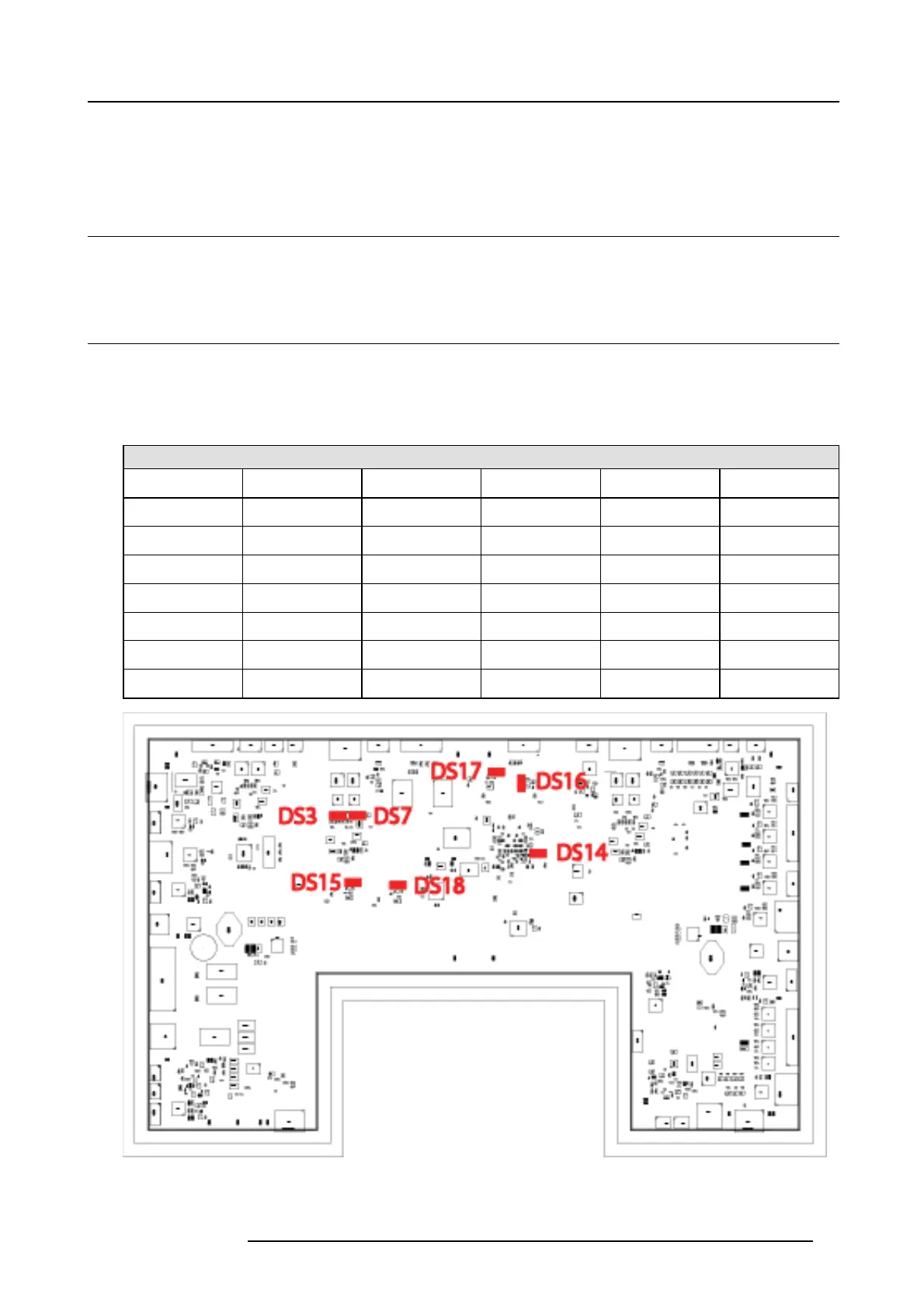

Image 17-1
723–0016 F90 01/12/2017 63
