17. Troubleshooting
17.4.1 Explanation of the codes
Overview
An unique numeric code which indicates the source of the error (the board or functional part t hat notifies the problem) and the sensor
or sub location that shares the information.
Code X0000000: “XXX - xx xxxxxxx” (Error)
X0000000
2 3 4
1
5 6

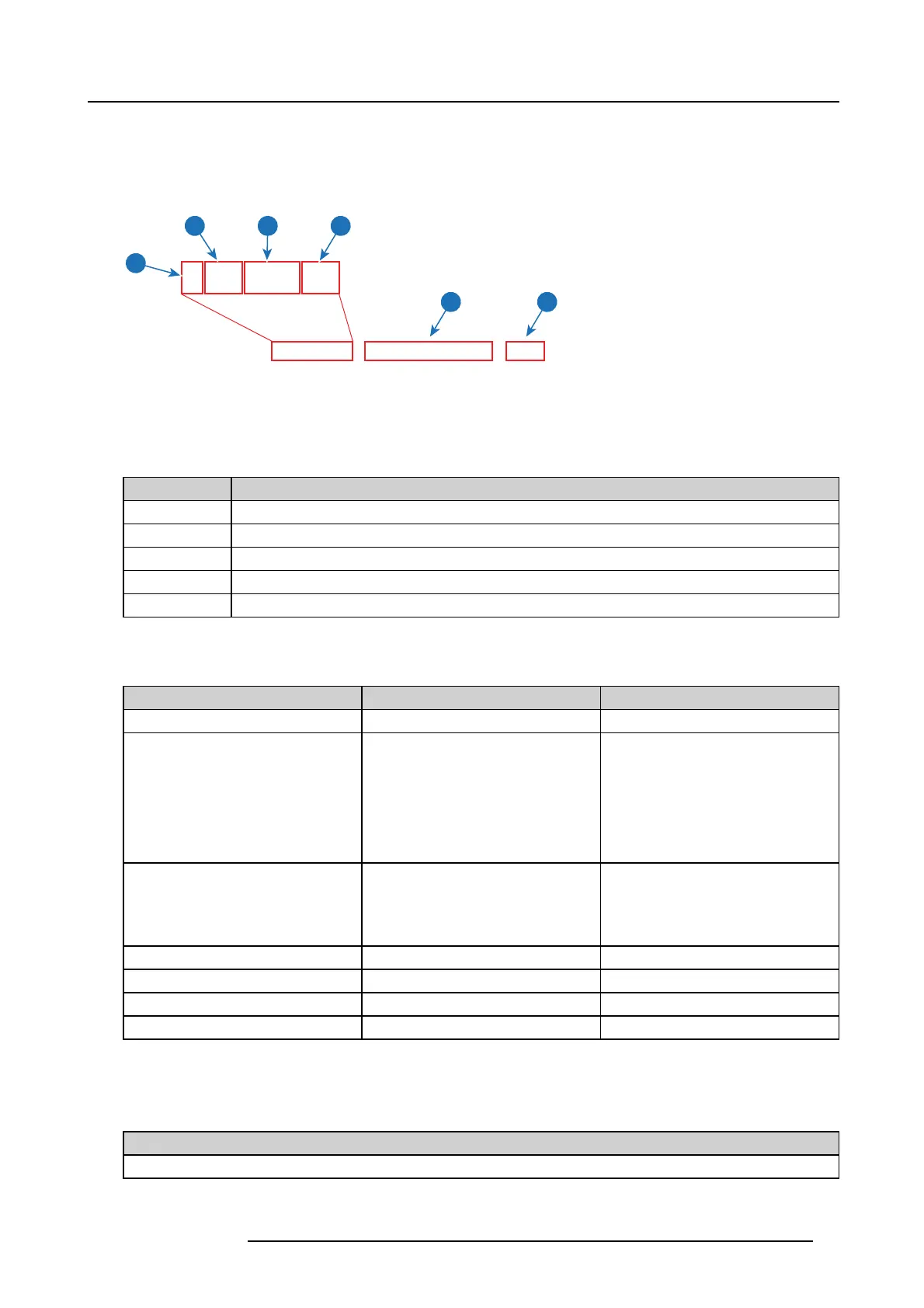

Image 17-3
1 Category
2 Physical location
3 Physical sub location
4 Optional indicator
5 Me ssage
6Type
Category
Category
Description
S S yste m
L
Illumination (Light Source)
E
Mainboard, Thermal Hub, Laser Dr iver B oard, SMPS (PSU), Formatter, Color wheel
B Board detection
I Input
Physical location
Indicates the so urce of the er ror.
Physical location Value
Comments
Mainboard 00h
Laser driver 0 ("A" labelled connectors) *
10..15h 10h=bank0
11h=bank1
12h=bank2
13h=bank3
14h=bank4 (only on V 3)
15h=bank5 (only on V 3)
Laser driver 1 ("B" labelled connectors)*
20..23h 20h=bank0
21h=bank1
22h=bank2
23h=bank3
Thermal Hub 40h
Formatter 70h
Color wheel 80h
Mainpower 90h
(*) For further details, see diagram that details wiring layout from laser driver to Appotronics laser ban k in section .
Physical sub location
Can be sensor number, ban k num ber, coordinate, ID, ...
Physical sub location
0..FFFh
723–0016 F90 01/12/2017 67
