16. Power Supply Unit (PSU)

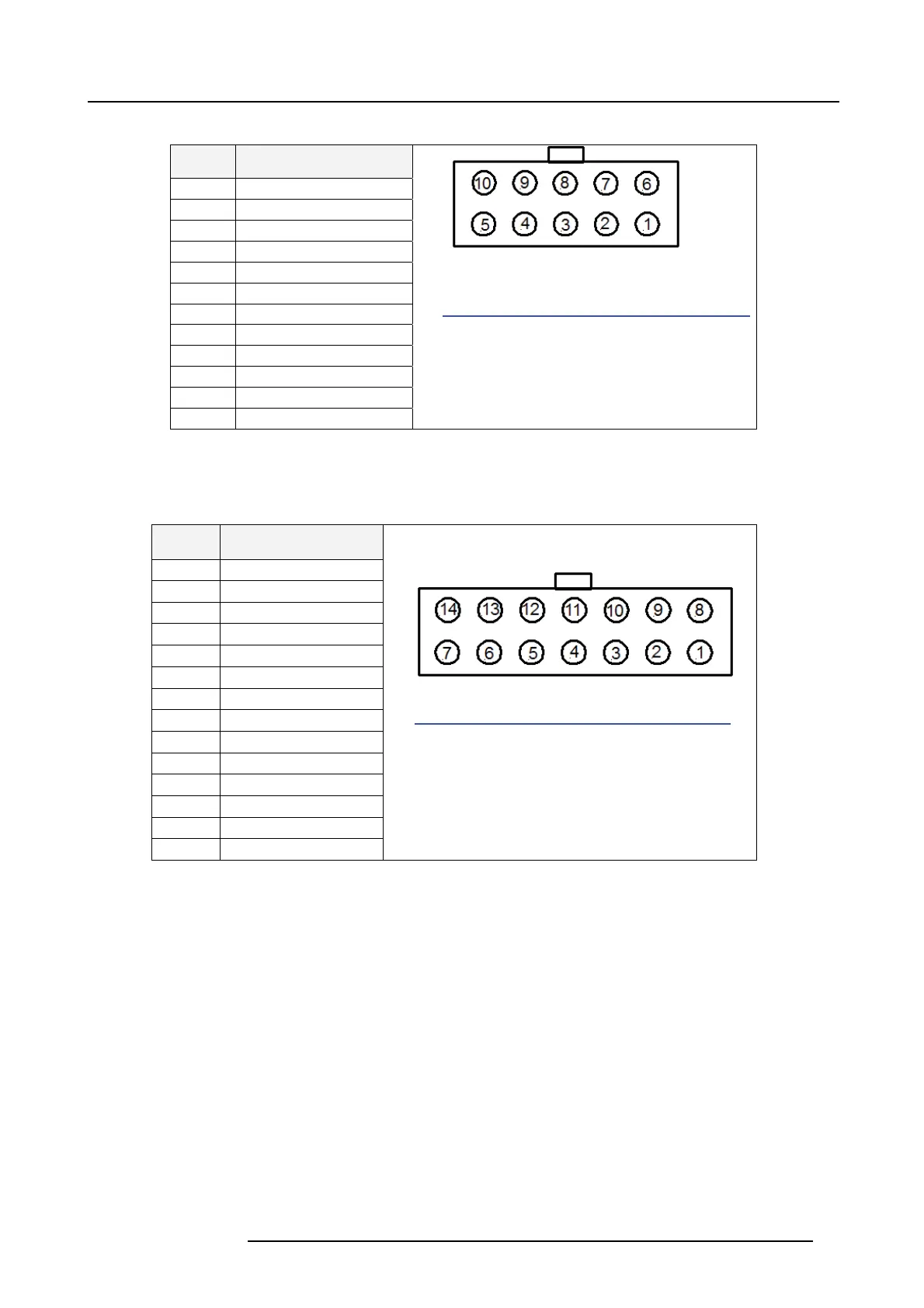

16.3.2 Mainboard connector:
PIN Nr Output name
MOLEX MICROFIT – HEADER SEEN FROM ABOVE
http://www.molex.com/pdm_docs/sd/430451006_sd.pdf
Pin 1 +12V-1
Pin 2 +12V-1
Pin 3 12V-1_GND
Pin 4 +11,5V_STB
Pin 5 SGND (Shield GND)
Pin 6 +12V-1
Pin 7 12V-1_GND
Pin 8 12V-1_GND
Pin 9 11,5V_STB_GND
Pin 10 SGND (Shield GND)
Image 16-3
16.3.3 Thermal Hub Connector
PIN Nr Output name
Molex Microfit
SEEN FROM ABOVE
http://www.molex.com/pdm_docs/sd/430451206_sd.pdf
Pin 1 +12V-2
Pin 2 +12V-2
Pin 3 12V-2_GND
Pin 4 +24V
Pin 5 +24V
Pin 6 24V_GND
Pin 7 SGND (Shield GND)
Pin8 +12V-2
Pin9 12V-2_GND
Pin10 12V-2_GND
Pin11 +24V
Pin12 24V_GND
Pin13 24V_GND
Pin14 SGND (Shield GND)
Image 16-4
723–0016 F90 01/12/2017 61
