20. Scheduled operations
20. SCHEDULED OPERATIONS
20.1 About
For details of the service intervals and components to be changed, see "GP6 periodical maintenance"
,page27
This section outlines replacement of parts which hav e a pre-deļ¬ ned life cycle, where replacement is required at regular intervals.
Such parts adhere to a life cycle manage ment sys tem w hich prompts the user when r eplaceme nt is due. R esetting the part life cycle
in the service menu m ay be required.
The GP6 platform LF M has 2 main service intervals, 20.000 hours and 40.000 hours.
If optical components such as color wheel, phosphor whee l or laser c lusters have been replaced, it may be necessary to do an index
adjustment of the color wheel and/or phosphor wheels. See chapter "Colorwheels", page 47 for details.
All service intervals shall be c arried out by authorized service technicians in controlled environments, typically at a service cen ter
20.2 20000 hours LFM Service
20.2.1 Phosphor wheels (2 pcs)
The projector covers mu st not be removed when performing this proced ure.
CAUTION: Heavy lifting! Barco recommen ds two persons c arry out t his procedure.
1. With the unit covers still installed, place the unit on its r ight side.
2. Release 7pcs ( TX10 M3x8 wa sher) used to secure the Bottom Cover

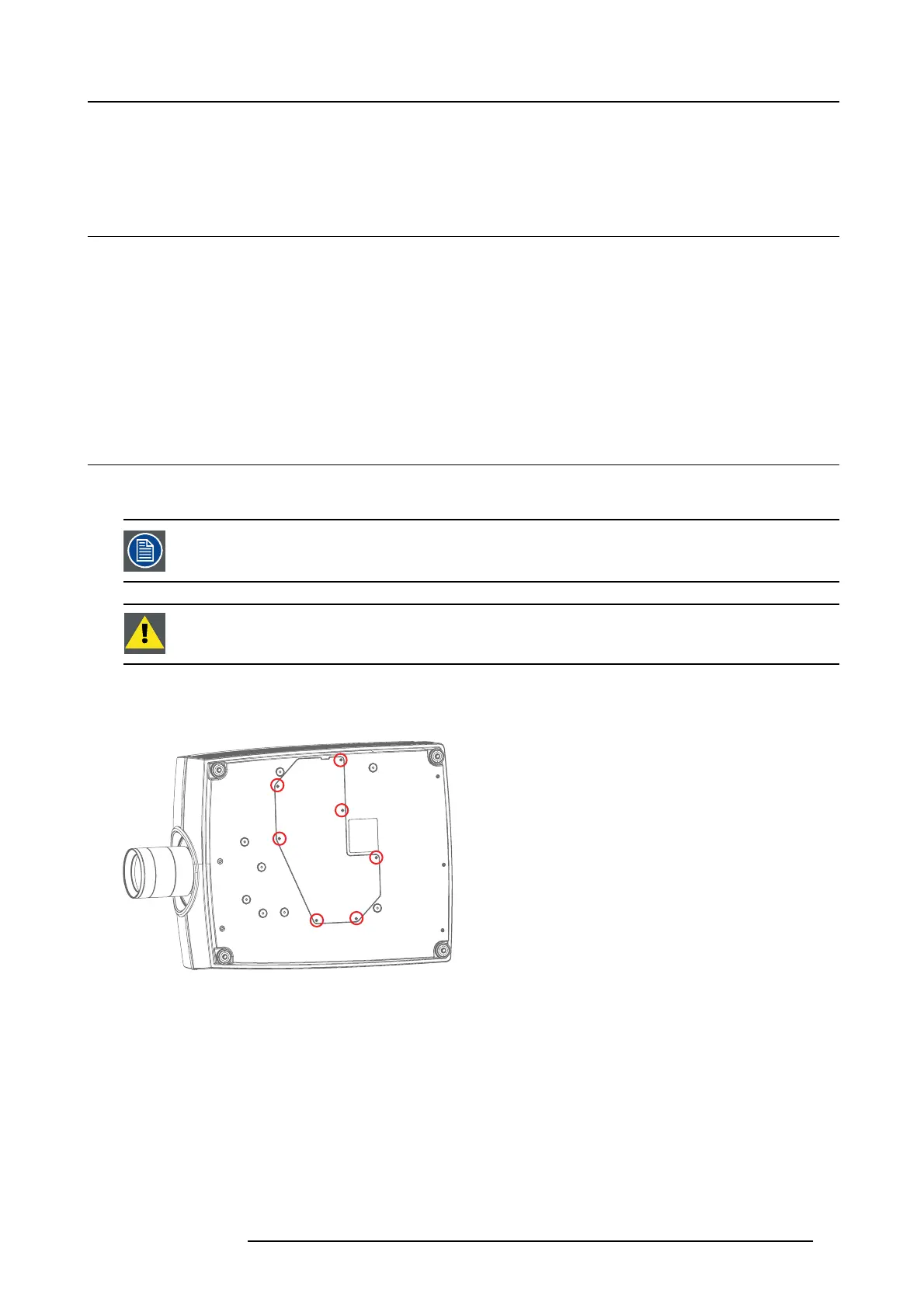

Image 20-1
3. Release 5 screws (Tx 10 M3x10) us ed to
secure each cover for the P hosphor wheel compartments.
4. Release 3 screws (Tx8 M2.5x6) securing the phosphor wheels.
723ā0016 F90 01/12/2017 87
