24. Lens shift assembly

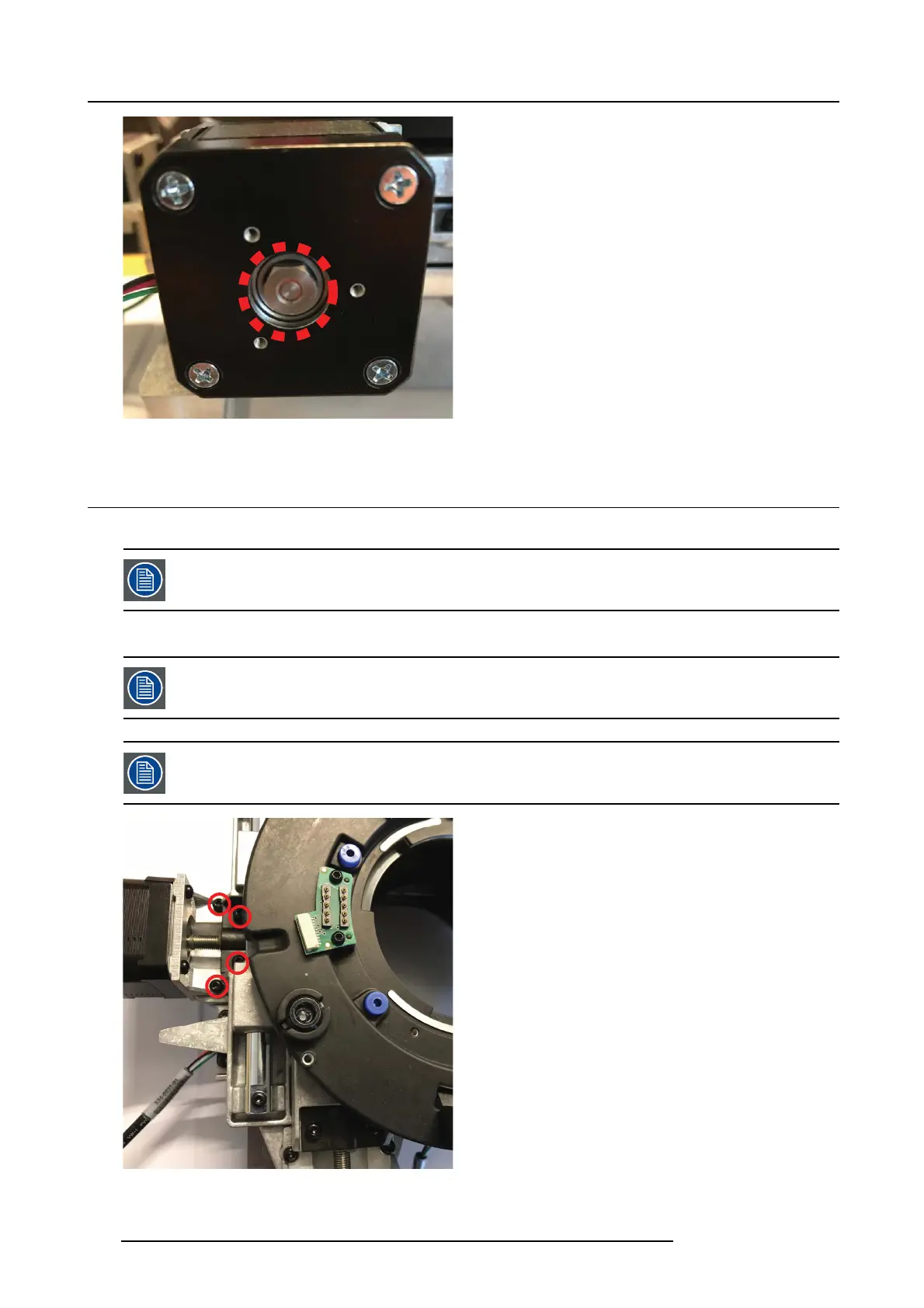

Image 24-2
24.1 Lens shift assembly motors
1. Remove 4 screws (M3x8 TX10 W/Lockw.) to remove lens shift motors with lead screw from lens shft assy.
Dependent on the position of the lens shift mechanism , it may b
e necessary t o manu ally turn leadscrew to
expose the screws (8mm h ex). Acc essing these, removal of com plete assembly is n ecess ary.
2. Rem ove 4 screws (M3x8 Tx10) to release lens shift motor from holder.
- Motor for horizontal shift (left) connects to PCB lens hub connector J1
- M otor for vertical shift (lower) con nects to PCB lens hub connector J2
Image 24-3
124 723–0016 F90 01/12/2017
