8. Thermal management system
8.6.3 Fan and pump number location
Fan 1
Fan 2
Fan 3
Fan 4
Fan 5

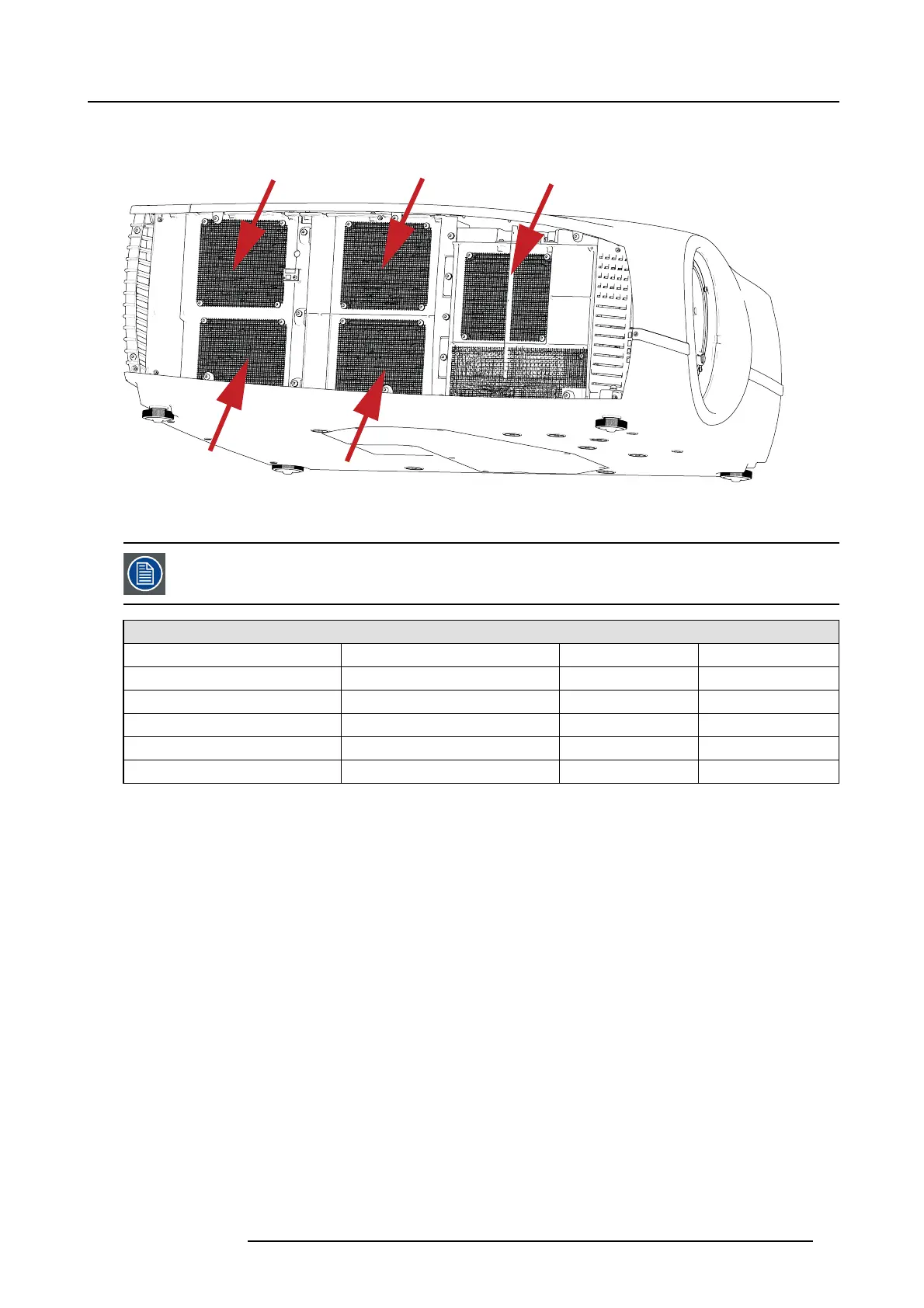

Image 8-4
Ref also chapter 19.2.7, Cooling Pump Connection Map.
Naming of the pumps vs the fans
Fan name Corresponding pump goes to: Pump No Connector No
Fan 1 Left Cluster, Back 2 2
Fan 2 Left Cluster, Top 1 1
Fan 3 Right Cluster, Back 4 4
Fan 4 Left Cluster, Top 3 3
Fan 5 DMD
5
