10. Optical adjustments
Image 10-2

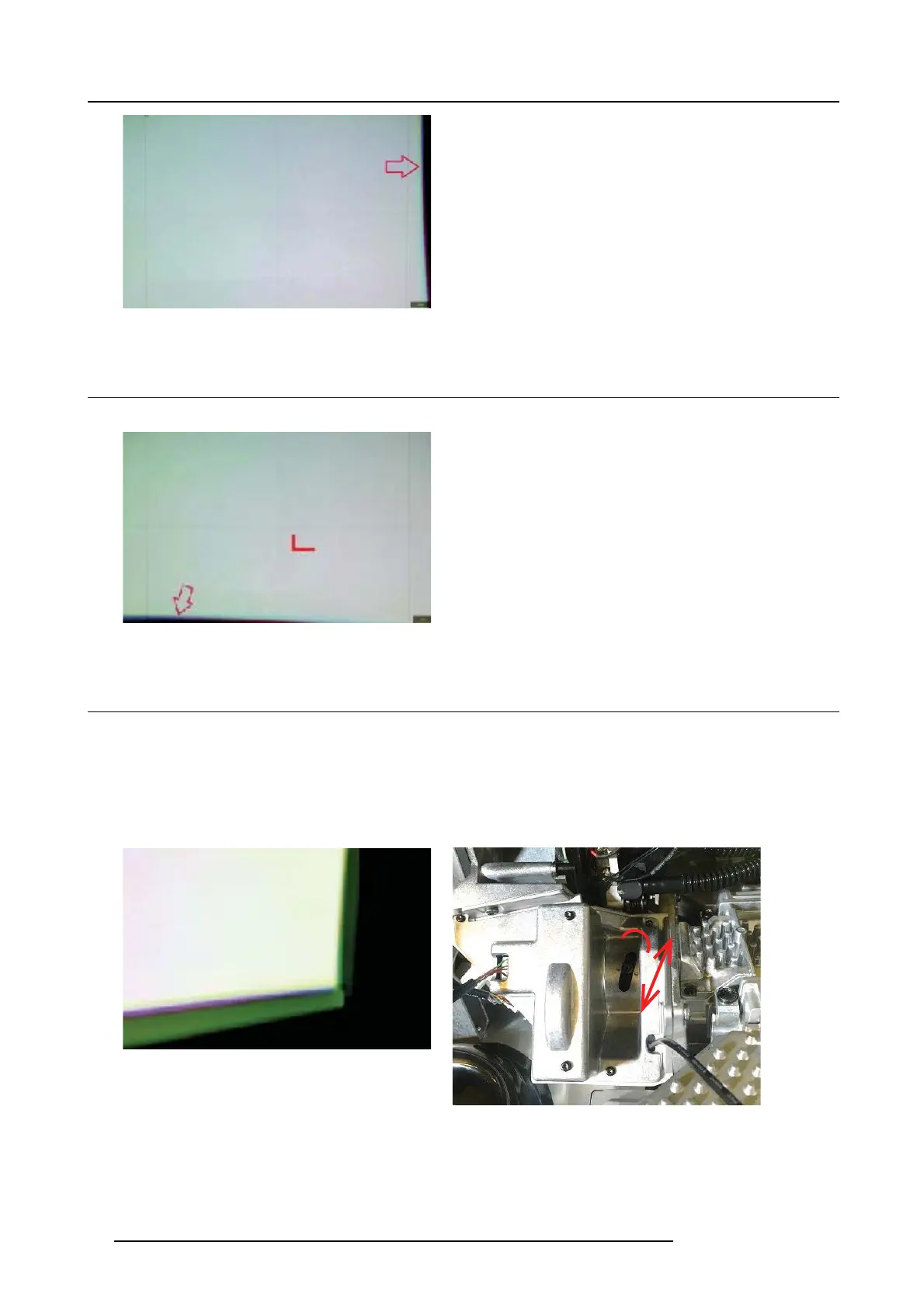

10.4 Lighting Mirror: Vertical (y) A djustment
Turn knob (B) with fin gers to adjust mirror vertically until no horizontal band is present in upper or lower ed ge of image
Image 10-3
10.5 Focus: Relay tu be lens focus adjustment
Adjust NU Bs (A&B) until the edges of both mirrors are visible in the projected image (See above picture A).
• - Turn stub screw counter clockwise to loos en (1)
• - A djust by pushing stub laterally up/down (2) to find the focal point where vertical band
• - Turn stub screw CW to lock adjustment.
Finalize operation by repeating mirror horizontal adjustment.
Image 10-4
Image 10-5
44 723–0016 F90 01/12/2017
