26. Technical Operations

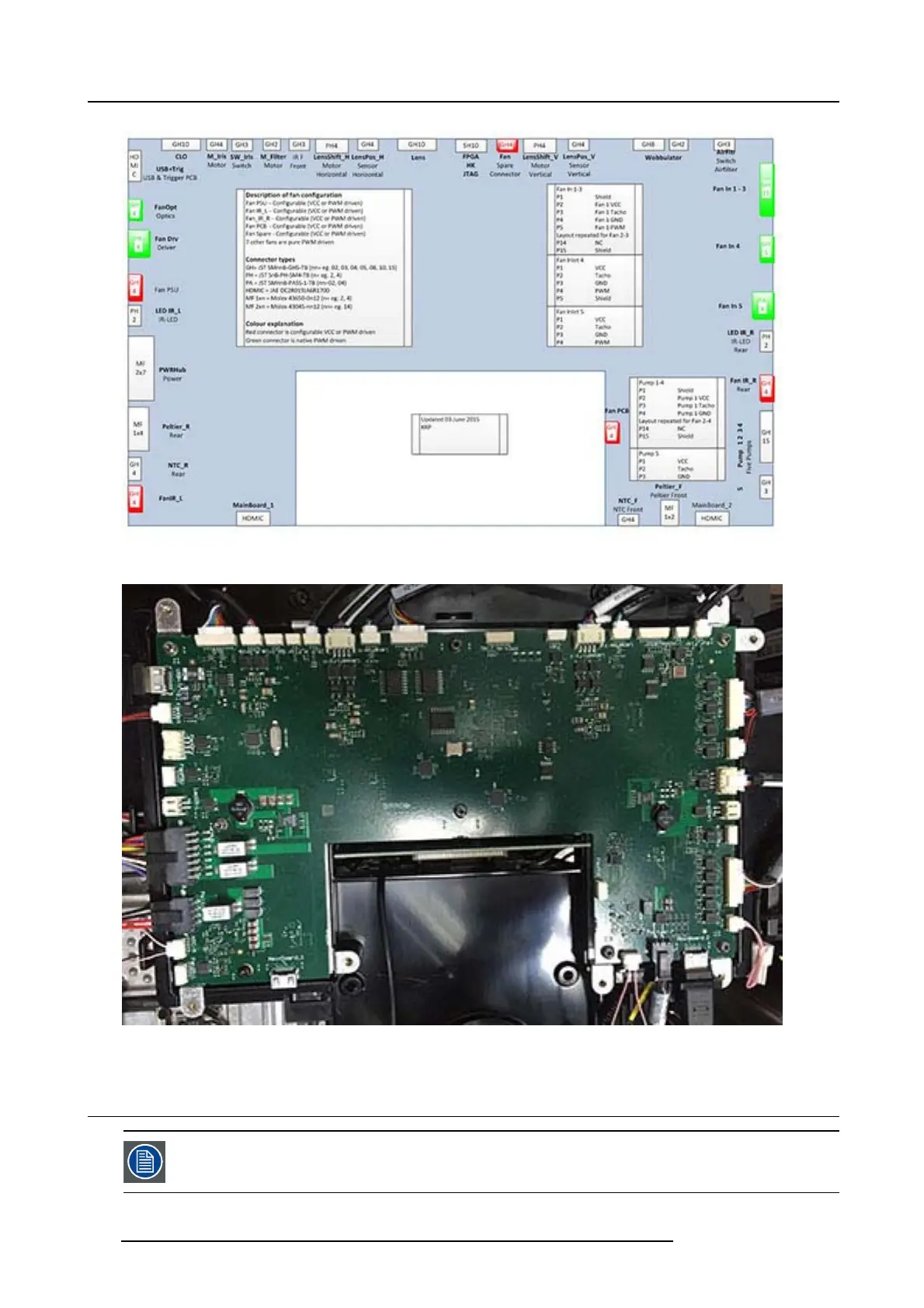

Image 26-7

Image 26-8

26.4 PSU

Removing the PSU to access the laser clusters in not essential but will m ak e the p rocedure easier. The PSU

can be rem oved without ﬁrst removing PCB Main and sheet metal brackets.
