Barco F90 User Manual

26. Technical Operations

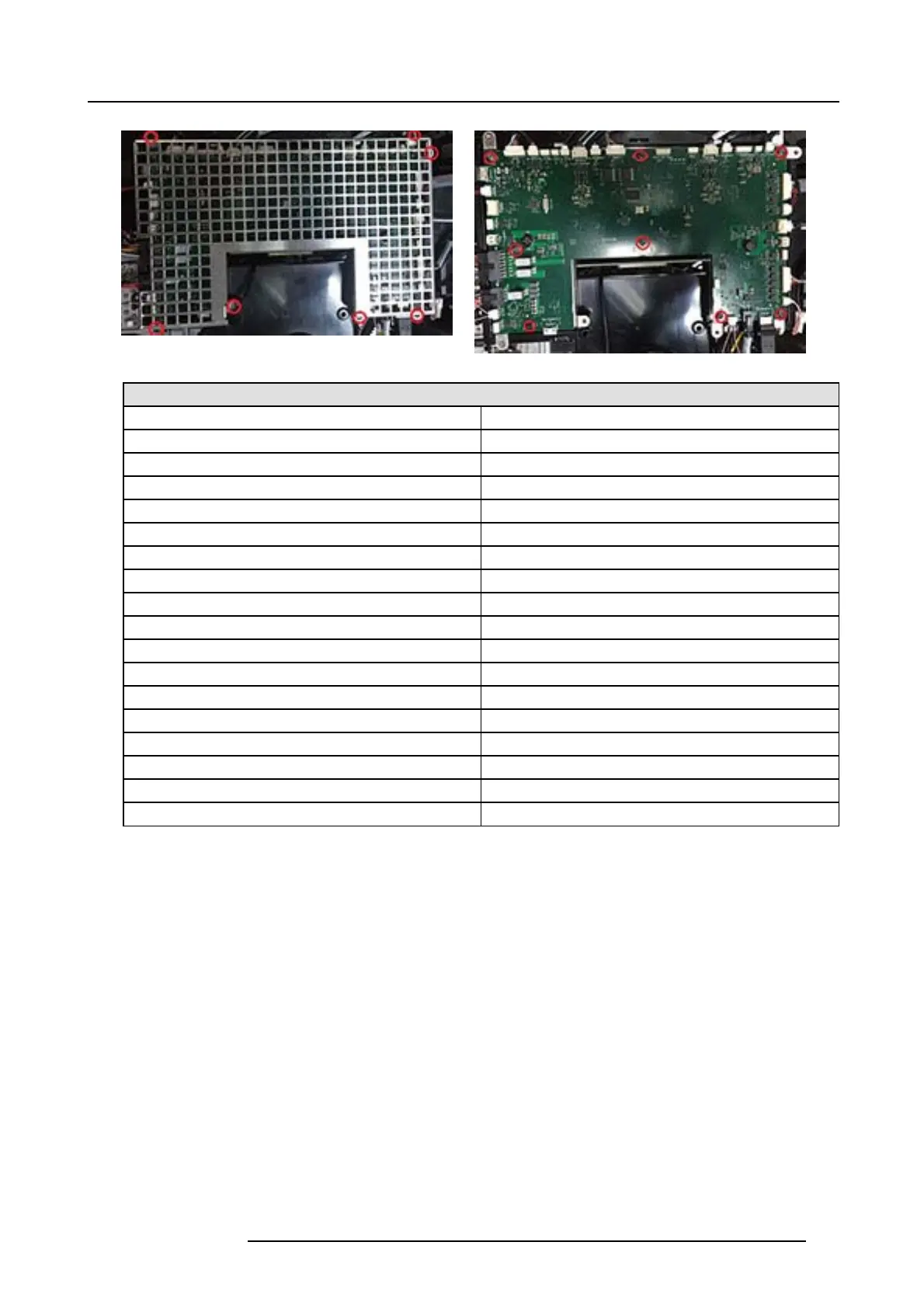

Image 26-5
Image 26-6
Cable overview (from clockwise), as shown in F igure 21-1, Cable overview GP6
1. CLO (F90 4K only, Constant light output) 19. LedIR-R (FS90 only)
2. M_Iris
i20. FanIR-R (FS90 only)
3. SW_Iris
21. Pump 1234
4. M_Filtr 22. P ump 5
5. IR_F (Front IR) 23. Mainboard 2 (HDMI)
6. Lens hift-H (Horizontal)
24. P eltier F
7. Lenspos-H (Hor.) 25. N TC-F
8. Lens
26. FAN P CB
9. FPCA HK JTA G (Not in use). 27. Mainboard 1 (HMDI)
10. Fan
28. Fan IR L (FS90 only)
11. Lensshift-V (Vertical) 29. NTC R (NTC DMD rear)
12. Lenspos-V (Vert.) 30. P eltier R (Peltier DMD Rear)
13. Wobbulator (Pixelshift) 4K only
31. Powr Hub
14. ?? 32. Led IR L (FS90 only)
15. Airfilter 33. FAN PSU
16. FanIn1-3
34. FAN DRV (Laser driver)
17. FanIn4
35. FanOpt (Optics).
18. Fan Radiator D MD.
36. USB +Trig
723–0016 F90 01/12/2017 135
