24. Lens shift assembly
24.4 Lens Lock screws
4 screws for locking lens follows unit as accessories. Sc rews can be ordered separately: 5xx-xxxx-xx

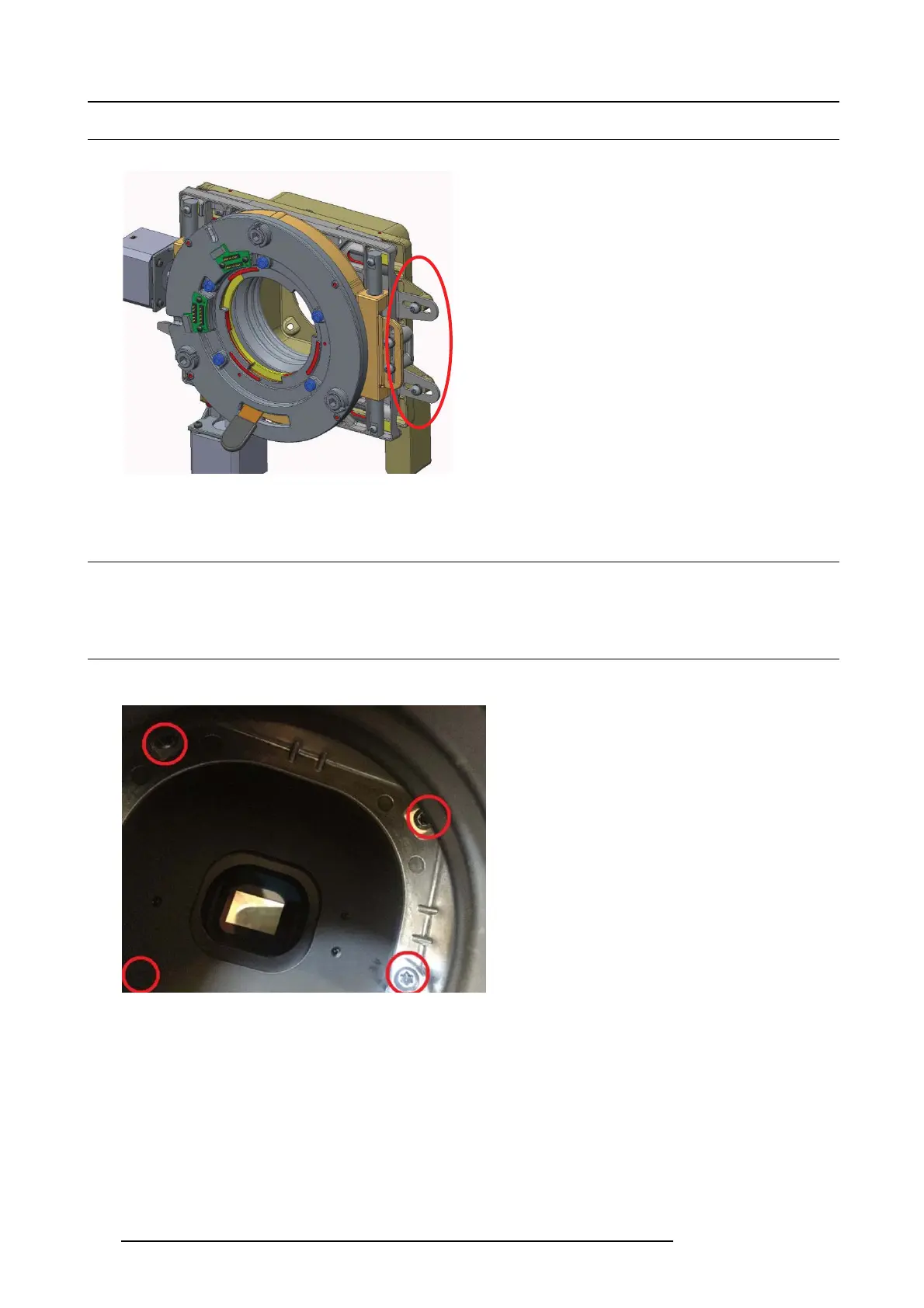

Image 24-6
24.5 Scheimpflug screws
Lock nut and adjustment screws are separately available order:
24.6 Lens shift assembly and optical actuator
1. Remove 4 sc rews (TX20 M4x12) av ailable from inside lens opening.
Image 24-7
2. Remove 2 screws (TX20 M4 x1
2) securing the assembly to the b a se plate and remove the complete assy.
126 723–0016 F90 01/12/2017
