Brother MFC-9330CDW Service Manual

2-96
Confidential

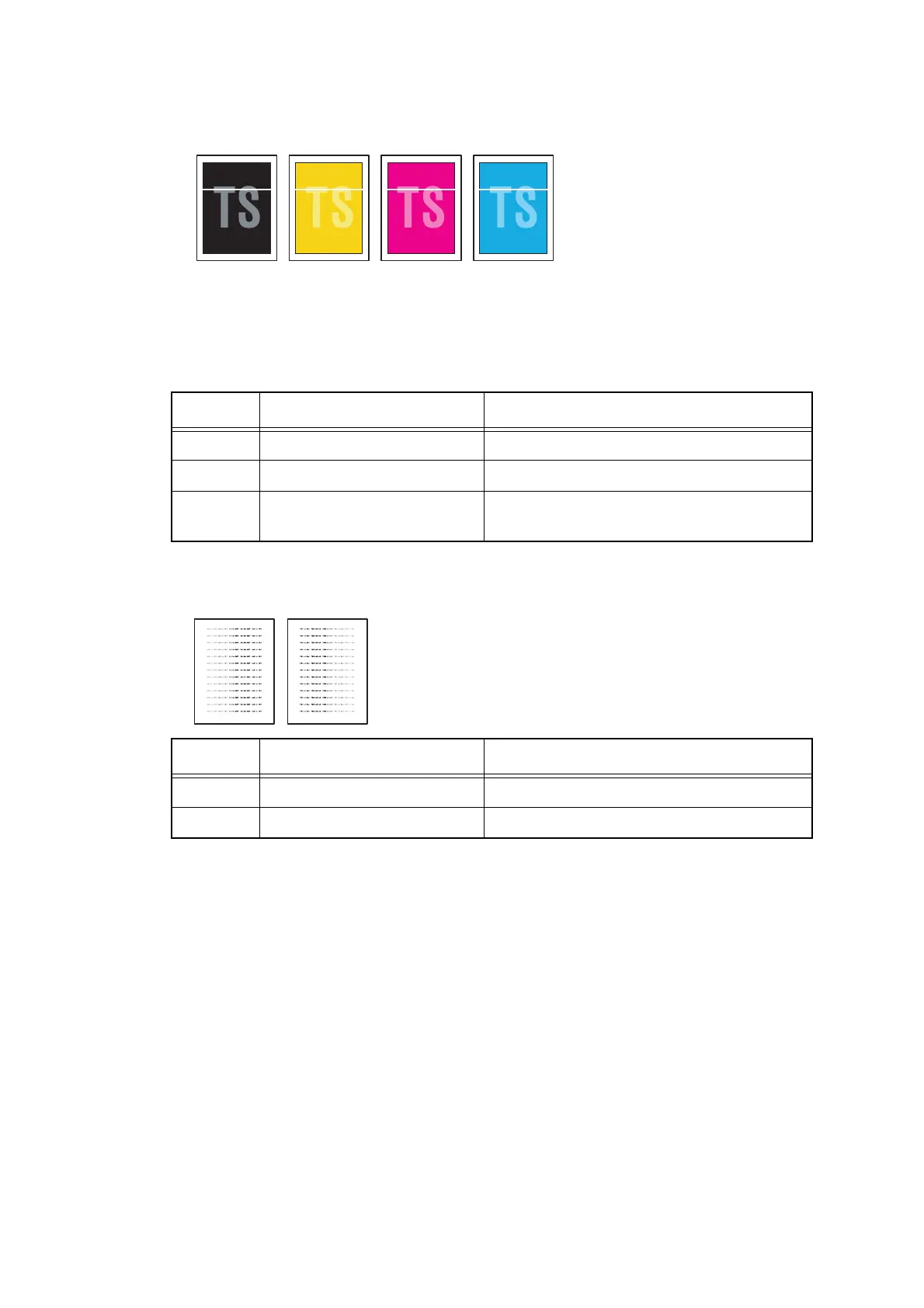

■ White horizontal stripes on one color image
<User Check>
- This symptom might stop occurring after making several prints.
- Refer to the User’s guide and remove the dirt on the exposure drum using a cotton swab.
- Replace the drum unit or toner cartridge with a new one.
■ Faint print
Step Cause Remedy
1 Dirt on charged electrode Wipe dirt off.
2 Scratch and dirt on fuser unit Replace the fuser unit.
3 High-voltage power supply
PCB failure
Replace the high-voltage power supply PCB
ASSY.
<User Check>
- Check that the machine is set on a level surface.
- Replace the drum unit or toner cartridge with a new one.
- Clean the LED ASSY.
Step Cause Remedy
1 LED ASSY failure Replace the LED ASSY.
2 Main PCB failure Replace the main PCB ASSY.

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
