Brother MFC-9330CDW Service Manual

3-149
Confidential

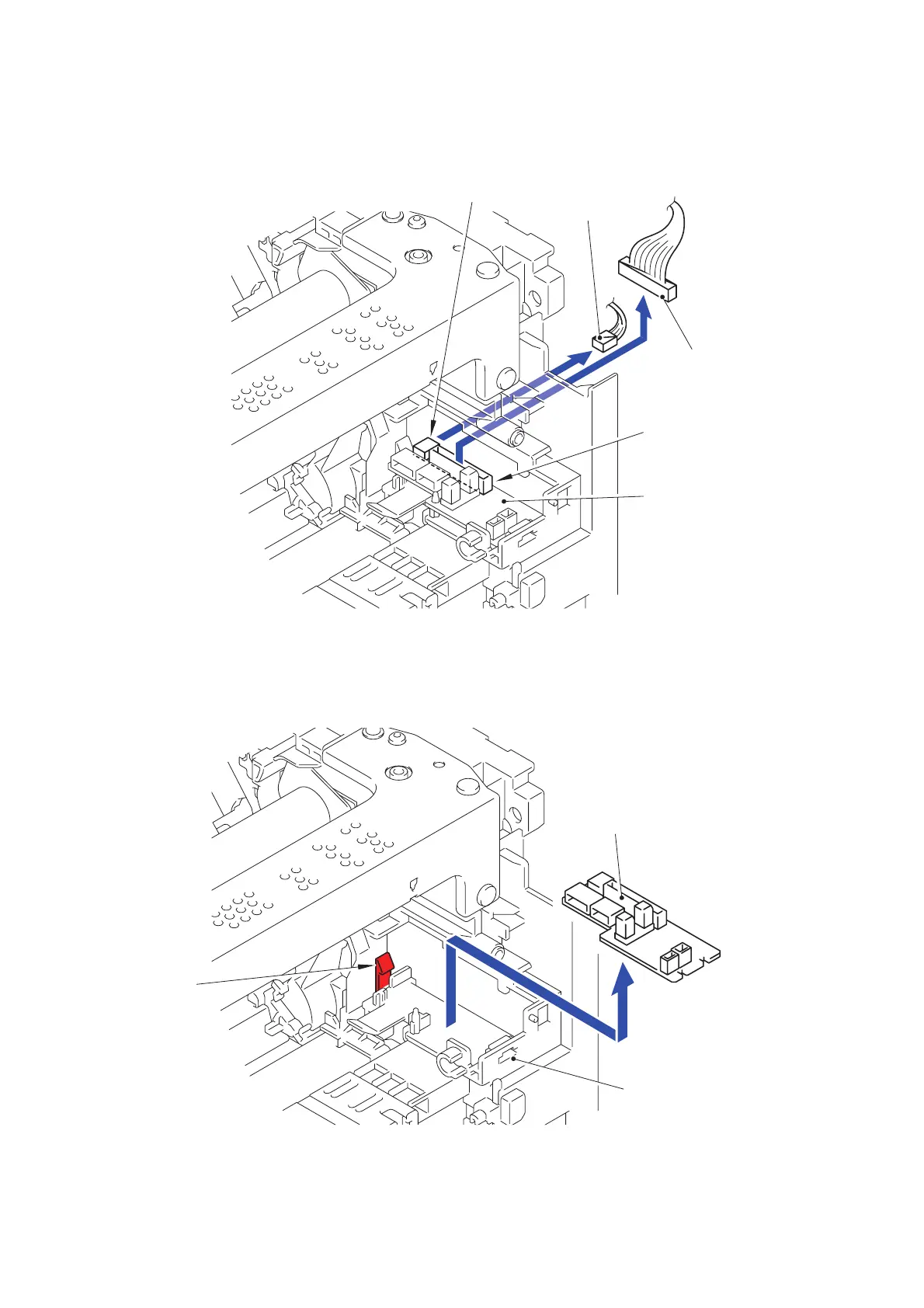

8.65 Eject Sensor PCB ASSY
(1) Disconnect the two Connectors (CN1 and CN3) from the Eject sensor PCB ASSY.
Fig. 3-215
(2) Release the Hook to remove the Eject sensor PCB ASSY from the Side frame L ASSY.
Fig. 3-216
Eject sensor PCB ASSY
CN1
CN3
Connector
Connector
<Back side>
Hook
Side frame L ASSY
Eject sensor PCB ASSY
<Back side>

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
