Brother MFC-9330CDW Service Manual

3-109
Confidential
8.44 LED Control Flat Cable

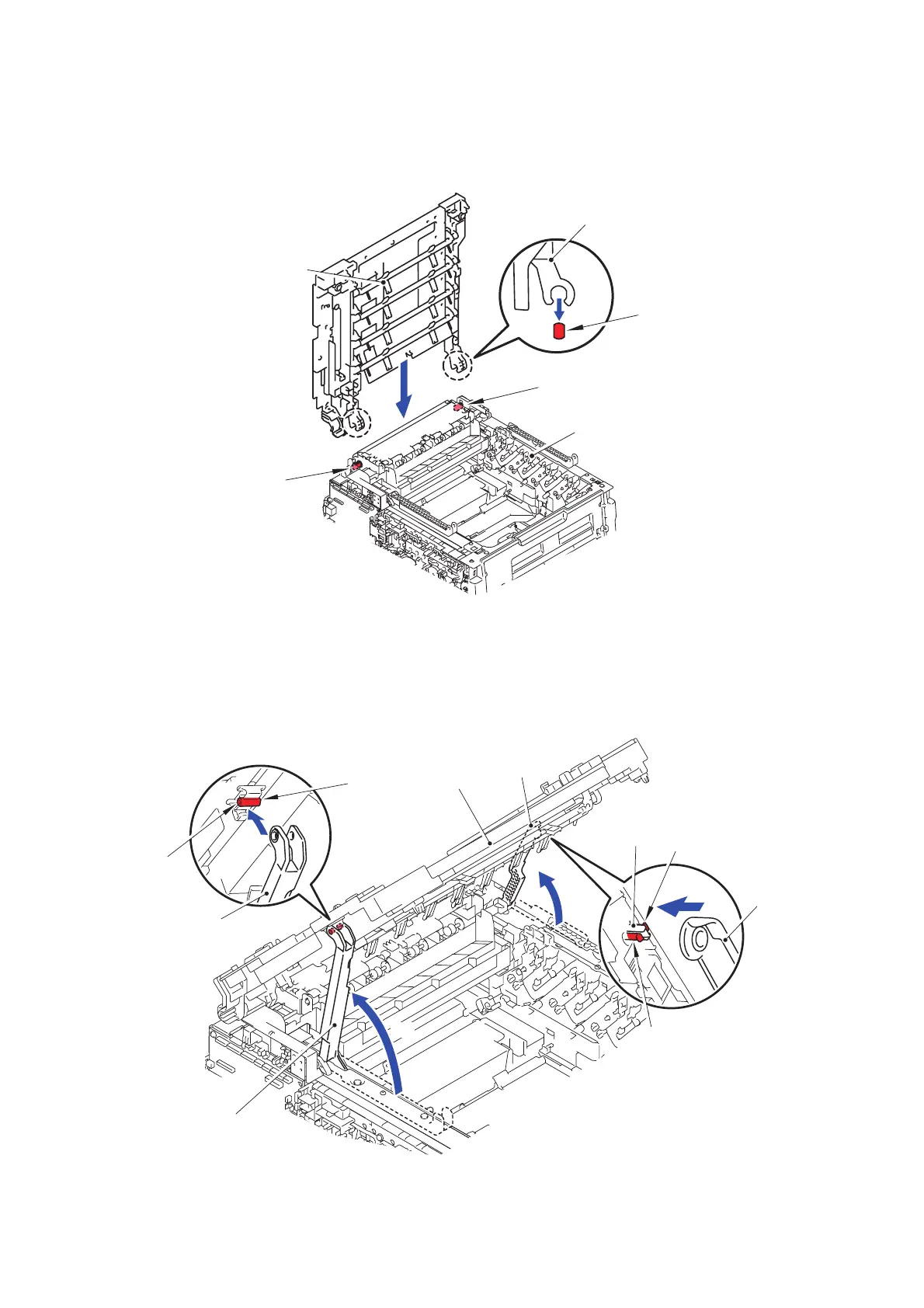

(1) Assemble the Sub frame ASSY to the two Bosses of the Main body.
Fig. 3-149
(2) Assemble the Joint arm L into the two Pins of the Sub frame ASSY.
(3) Assemble the Arm R into the Boss of the Sub frame ASSY.
Fig. 3-150
Sub frame ASSY
Sub frame ASSY
Main body
Boss
Boss
Boss
<Front side>
Sub frame ASSY
Arm R
Pin
Pin
Joint arm L
Joint arm L
Boss
Arm R
Hook
Hook
2a
2b
3a
3b

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
