Brother MFC-9330CDW Service Manual

2-11
Confidential

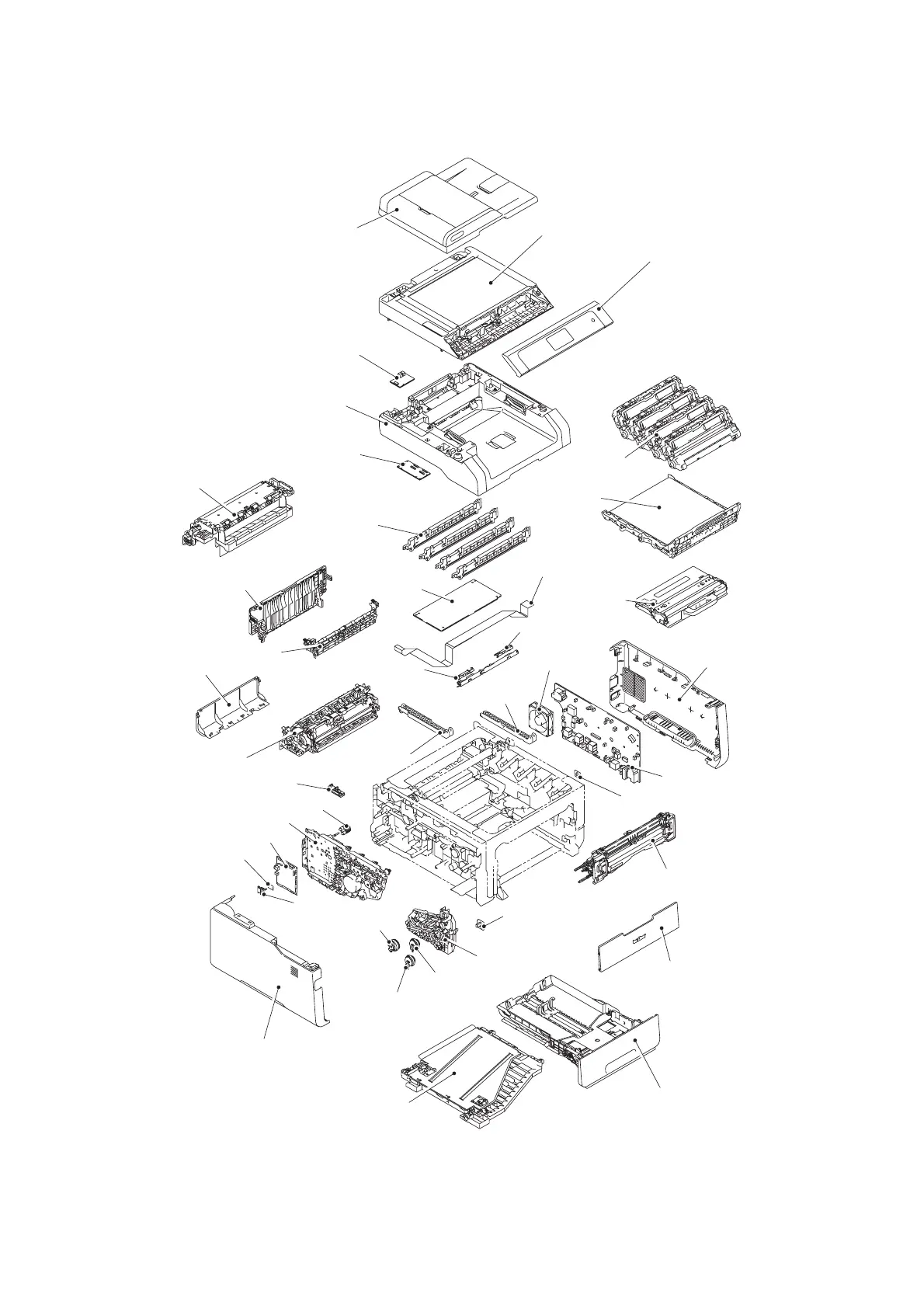

2.5 Components
Fig. 2-6
Belt unit
Paper eject ASSY
Side cover R
Side cover L
Joint arm L
Eject sensor PCB ASSY
Fuser drive gear Z25
Process drive unit
Main PCB ASSY
Paper feed unit
Main drive unit
Toner cartridge,
Back cover ASSY
Low-voltage power
Drum unit
supply PCB ASSY
HVPS flat cable
Waste toner
box
Fuser cover ASSY
Back cover lower
Registration mark
Registration mark
R PCB ASSY
L PCB ASSY
Main fan
High-voltage power
supply PCB ASSY
Develop release sensor PCB ASSY
Wireless LAN
PCB ASSY
Wireless LAN cap
Develop release clutch
Paper feed clutch
Registration clutch
External temperature/
humidity sensor
PCB ASSY
Manual feed slot
cover ASSY
Paper tray
Fuser unit
Duplex tray
LED ASSY
Joint cover ASSY
Joint arm R
ADF unit
Document scanner unit
Panel cover ASSY
Modem PCB ASSY
LED control PCB ASSY

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
