Brother MFC-9330CDW Service Manual

3-1
Confidential
CHAPTER 3 DISASSEMBLY AND
ASSEMBLY
1. SAFETY PRECAUTIONS
To avoid creating secondary problems by mishandling, follow the warnings and precautions
below during maintenance work.
Note:
- Be careful not to lose screws, washers, or other parts removed.
- Be sure to apply grease to the gears and applicable positions specified in this chapter.
- When using soldering irons or other heat-generating tools, take care not to accidentally
damage parts such as wires, PCBs and covers.
- Static electricity charged in your body may damage electronic parts. When transporting
PCBs, be sure to wrap them in conductive sheets.
- When replacing the PCB and all the other related parts, put on a grounding wrist band and
perform the job on a static mat. Also take care not to touch the conductor sections on the
flat cables or on the wire harness.
- After disconnecting flat cables, check that each cable is not damaged at its end or
shortcircuited.
- When connecting flat cables, do not insert them at an angle. After insertion, check that the
cables are not at an angle.
- When connecting or disconnecting cable harness, hold the connector body, not the cables.
If the connector has a lock, release the connector lock first to release it.
- After a repair, check not only the repaired portion but also handling of harnesses. Also
check that other related portions are functioning properly before operational checks.
- Violently closing the joint cover without mounting the toner cartridge and the drum unit can
damage this main body.
- After an assembly, recommend the operation of "dielectric strength voltage check" and
"continuity check".
- There must be no damage in the insulation sheet.

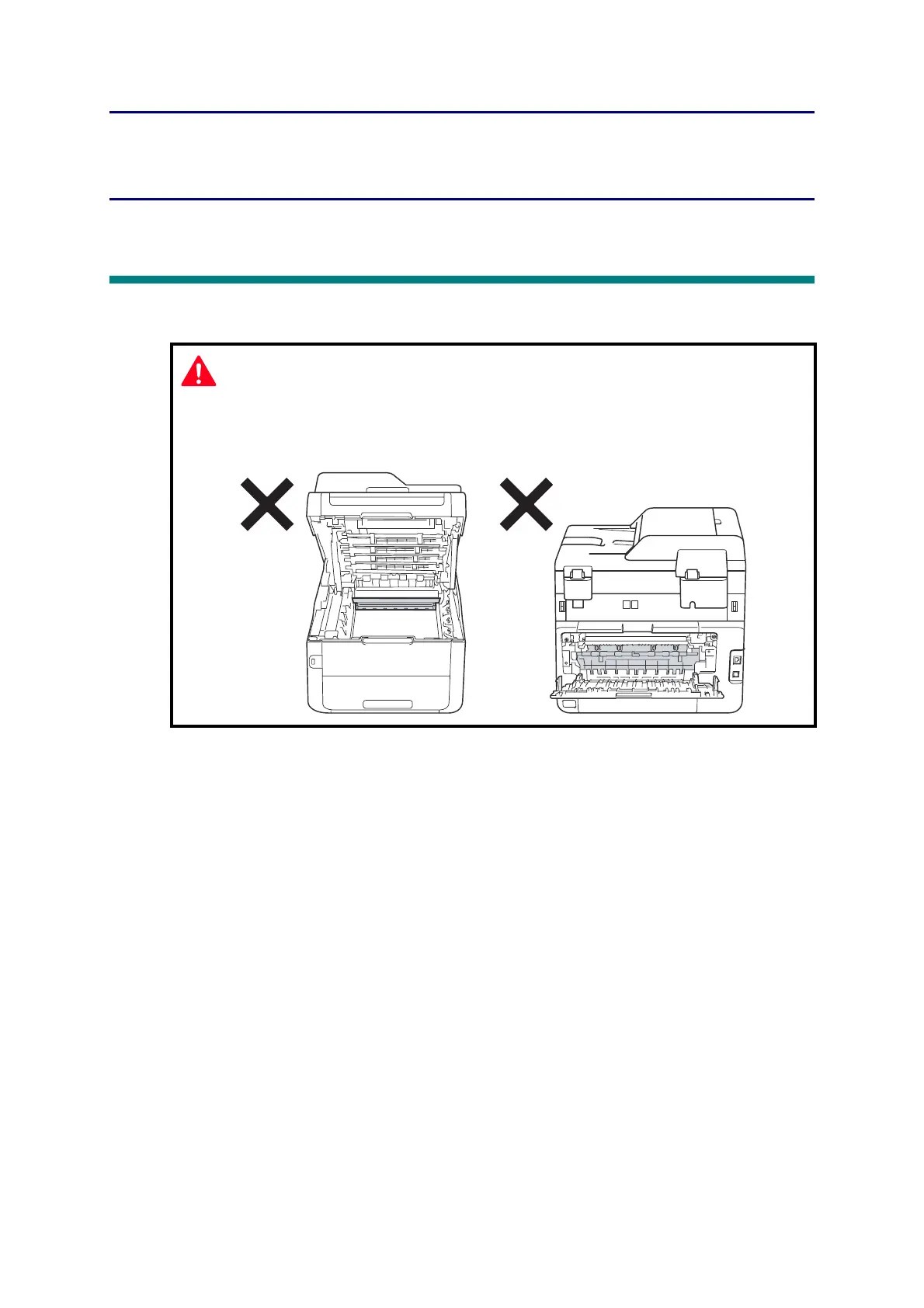

WARNING
Some parts inside the machine are extremely hot immediately after the machine is used.
When opening the joint cover ASSY or back cover to access any parts inside the machine,
never touch the shaded parts shown in the following figures.

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
