Brother MFC-9330CDW Service Manual

3-71
Confidential
8.27 First Side Document Scanning Position Sensor PCB
ASSY/Second Side Document Scanning Position Sensor
PCB ASSY (Duplex Scanning Models Only)

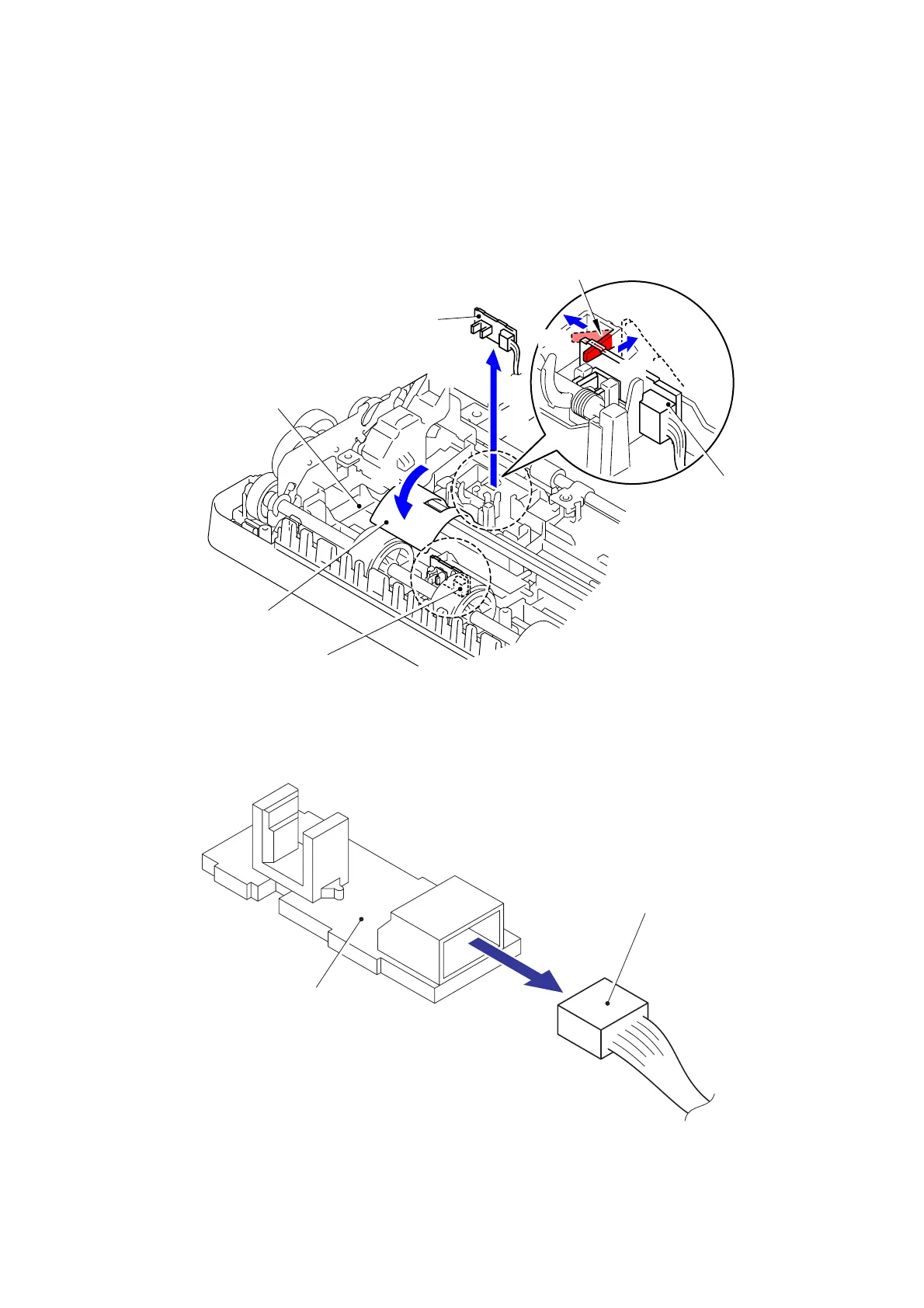

(1) Flip the Film to the opposite side, push the rib in the arrow direction, and detach the
Second side document scanning position sensor PCB ASSY from the Lower ADF chute.
Fig. 3-80
(2) Disconnect the Connector from the Second side document scanning position sensor PCB
ASSY.
Fig. 3-81
(3) Remove the First side document scanning position sensor PCB ASSY in the same way.
Rib
Lower ADF chute
Film
1d
1b
1a
1c
Second side document scanning
position sensor PCB ASSY
First side document scanning
position sensor PCB ASSY
Second side document
scanning position
sensor PCB ASSY
Connector
Second side document scanning
position sensor PCB ASSY

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
