3-141
Confidential

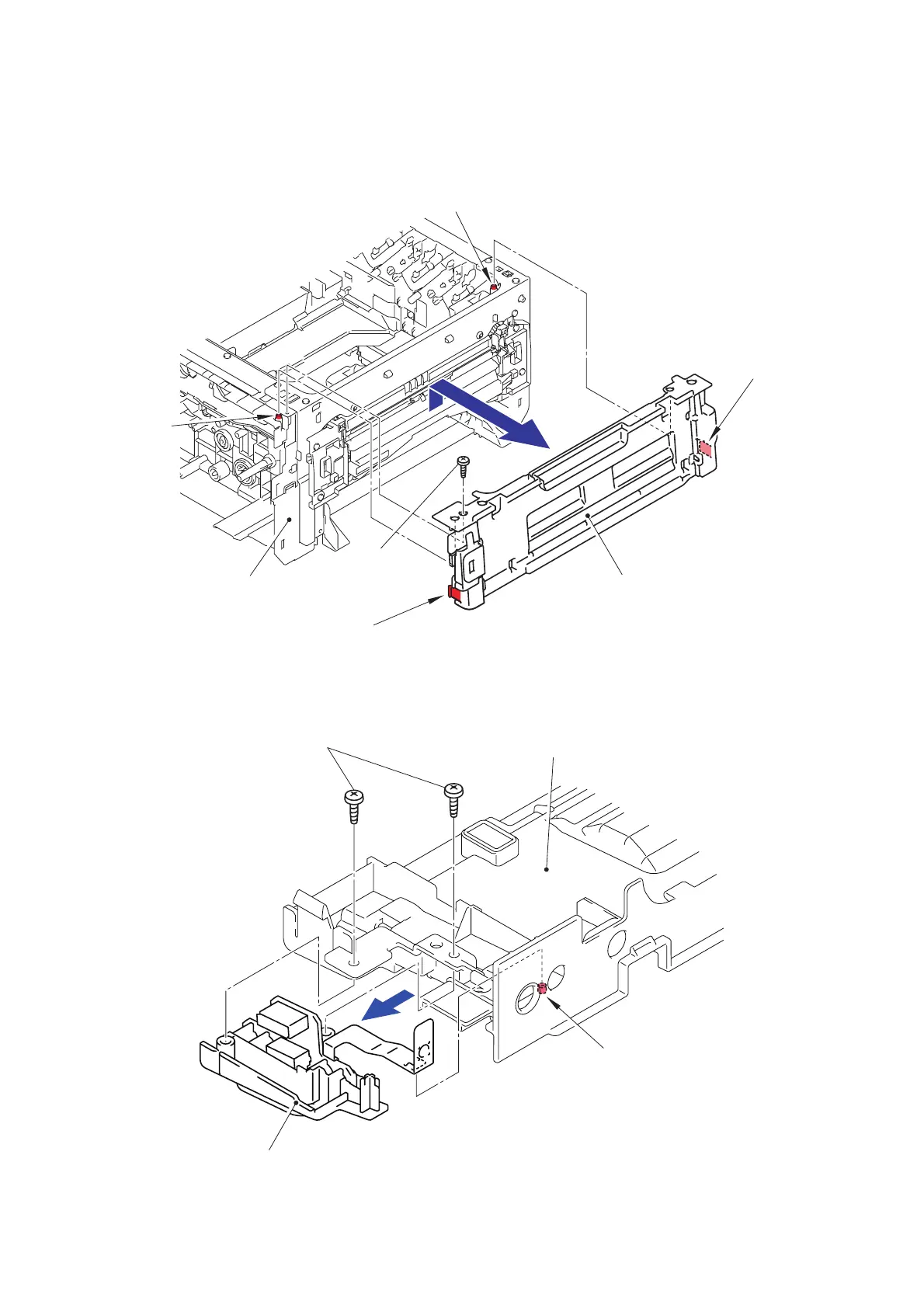

8.59 USB Host PCB ASSY/Inner Front Cover
(1) Remove the Taptite bind B M4x12 screw. Release the two Hooks and two Bosses to
remove the Inner front cover from the Main body.
Fig. 3-200
(2) Remove the two Taptite bind B 3x10 screws. Release the Boss to remove the USB
printed ASSY from the Inner front cover.
Fig. 3-201
Hook
Hook
Inner front cover
Boss
Boss
Main body
<Front side>
Taptite bind B M4x12
Boss
Inner front cover
USB cover ASSY
Taptite bind B 3x10
