8.48 Duplex Tray (2-sided Printing Model Only)
(1) Remove the two Taptite bind B M4x12 screws. Release the two Bosses to remove the
Duplex tray from the Main body.

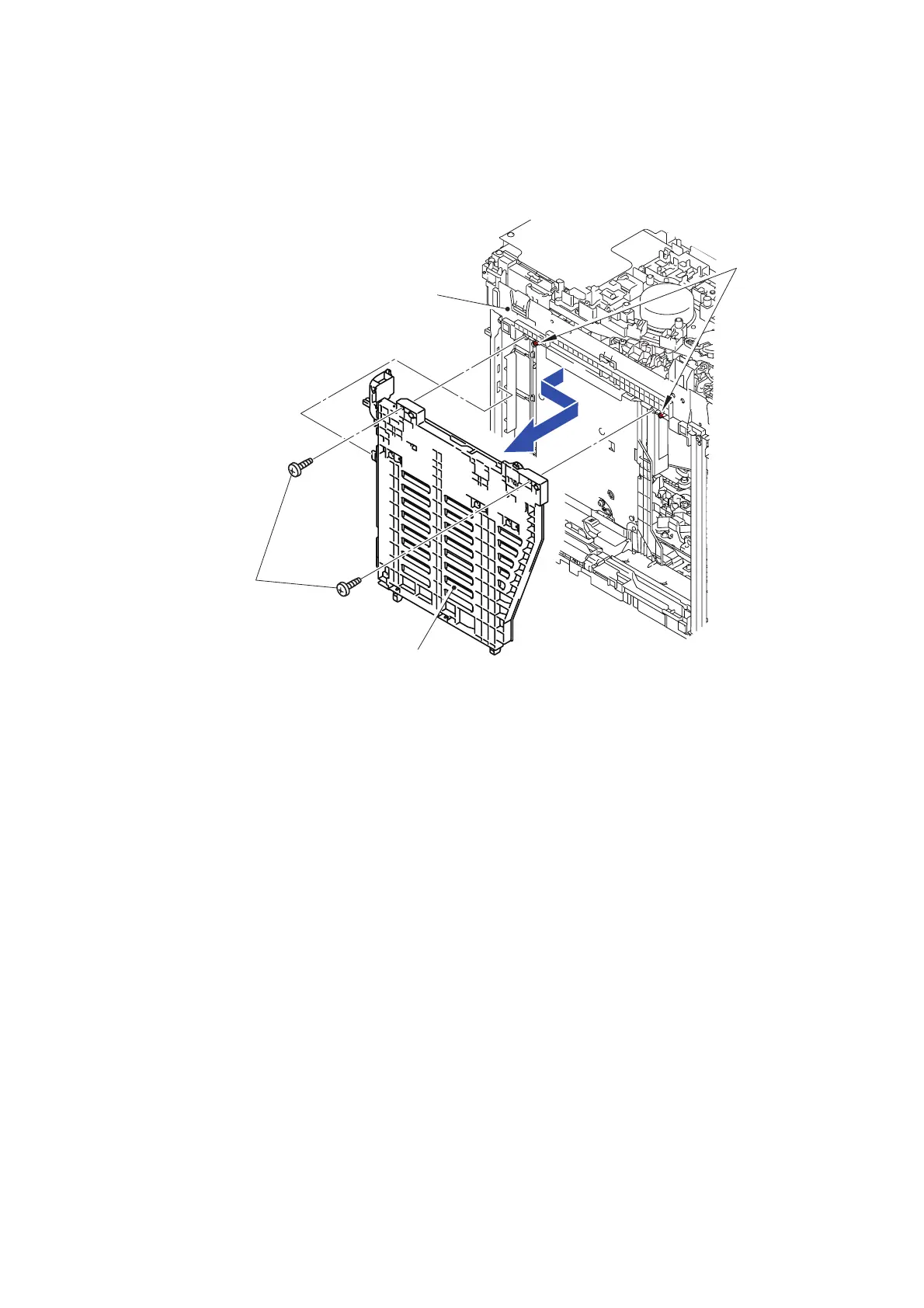

Fig. 3-166
Duplex tray
Taptite bind B M4x12
Main body
Boss
<Back side>
