Brother MFC-9330CDW Service Manual

3-79
Confidential

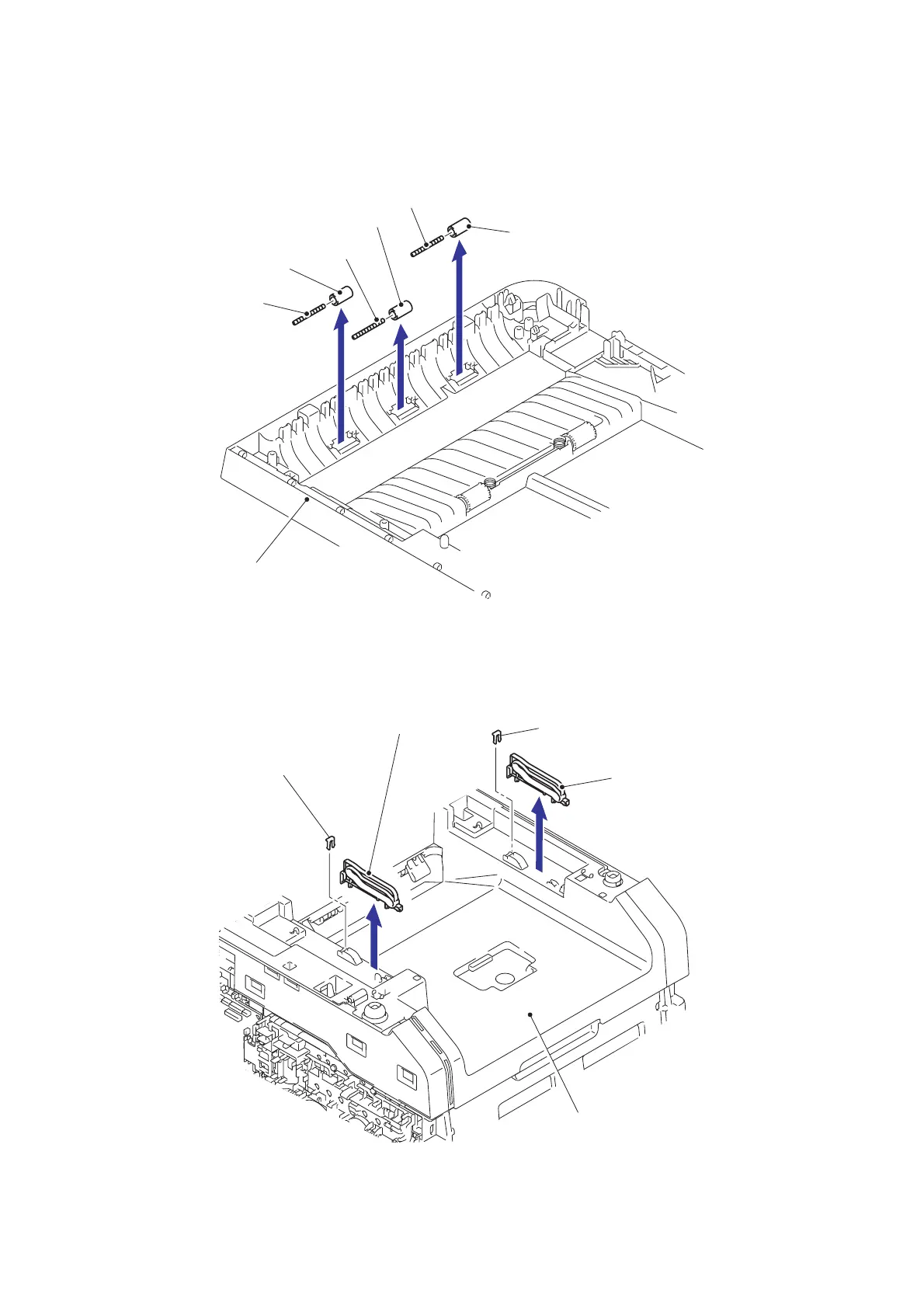

8.31 Document Cover ASSY
(1) Remove the three Document feed pinch roller spring shafts and three Document feed
pinch rollers.
Fig. 3-95
8.32 Pull Arm Guide/Lock Claw
(1) Remove the Lock claw and then remove the Pull arm guide from the Joint cover ASSY.
Fig. 3-96
(2) Remove the other Lock claw and Pull arm guide in the same way.
Document feed pinch roller
Document feed pinch roller
Document feed pinch
Document feed pinch roller spring shaft
Document feed pinch roller
Document cover ASSY
roller spring shaft
Document feed pinch roller spring shaft
Lock claw
Joint cover ASSY
Pull arm guide
Pull arm guide
Lock claw
<Front side>
