5. LUBRICATION
BG1.5: FLOIL BG-10KS (1.5 mm dia. ball)
The kind of the
lubricating oil
(Maker name)
Lubrication point Quantity of lubrication
FLOIL BG-10KS
(Kanto Kasei)
Paper feed clutch 1.5 mm dia. ball
Develop release clutch 1.5 mm dia. ball
Registration clutch 1.5 mm dia. ball
Eject roller 1.0 mm dia. ball
Eject roller bushing 1.0 mm dia. ball
MOLYKOTE EM-D110
(Dow Corning)
Back cover ASSY 2.0 mm dia. ball
FLOIL GE-676
(Kanto Kasei)
Document separate
roller ASSY
1.5 to 2.0 mm dia. ball
Document feed roller
ASSY1
1.5 to 2.0 mm dia. ball
Document feed roller
ASSY2
1.5 to 2.0 mm dia. ball
Document ejection roller 1.5 to 2.0 mm dia. ball
BDX313 (A) (Kanto Kasei) Hinge ASSY L 2.0 to 2.5 mm dia. ball
BG1.5
BG1.5
BG1.5
BG1.0
BG1.0
EM2.0
GE1.5 to 2.0
GE1.5 to 2.0
GE1.5 to 2.0
GE1.5 to 2.0
BDX2.0 to 2.5BDX2.0 to 2.5
BG1.5
BG1.5

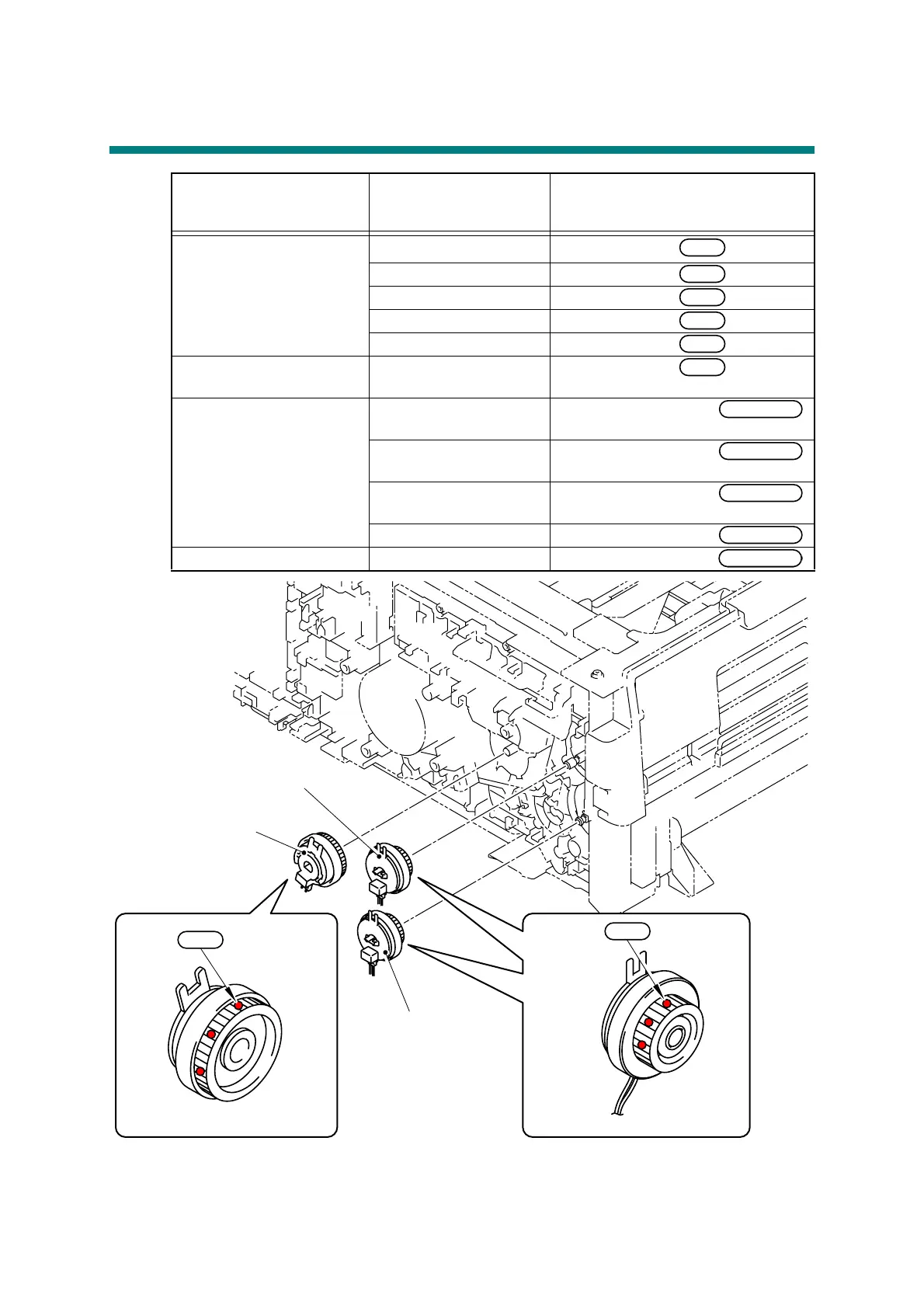

Paper feed clutch
Develop release clutch
Registration clutch

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
