Brother MFC-9330CDW Service Manual

3-33
Confidential
8.5 Fuser Unit

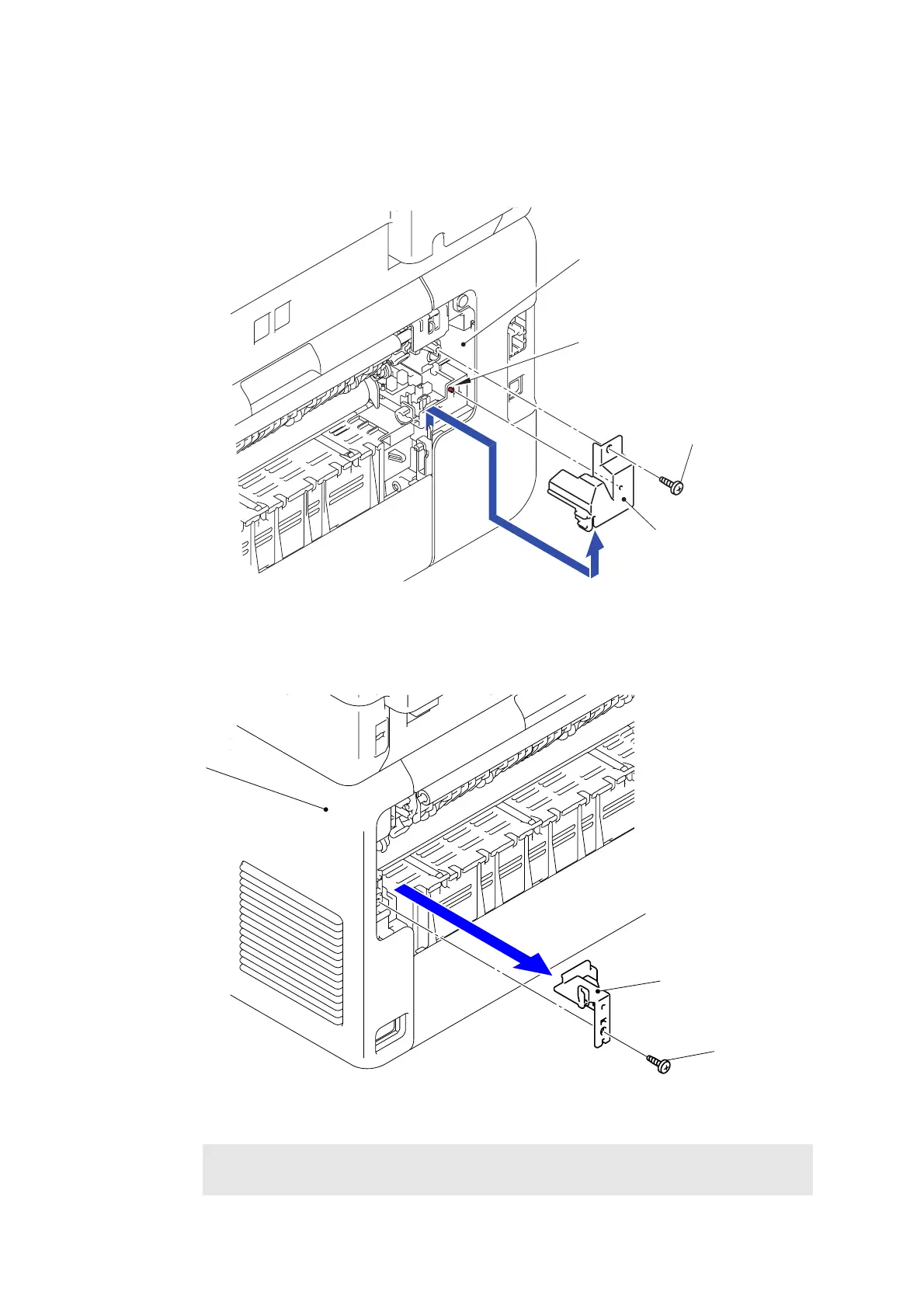

(1) Remove the Taptite bind B M3x10 screw from the Fuser cover L.
(2) Remove the Pin to remove the Fuser cover L from the Main body.
Fig. 3-9
(3) Remove the Taptite bind B M3x10 screw to remove the Fuser cover R from the Main body.
Fig. 3-10
Assembling Note:
After assembling the Fuser cover R, make sure that the Heater harness is not visible.
Fuser cover L
Pin
Main body
<Back side>
Taptite bind B M3x10
Taptite bind B
Fuser cover R
Main body
<Back side>
M3x10

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
