Brother MFC-9330CDW Service Manual

3-34
Confidential

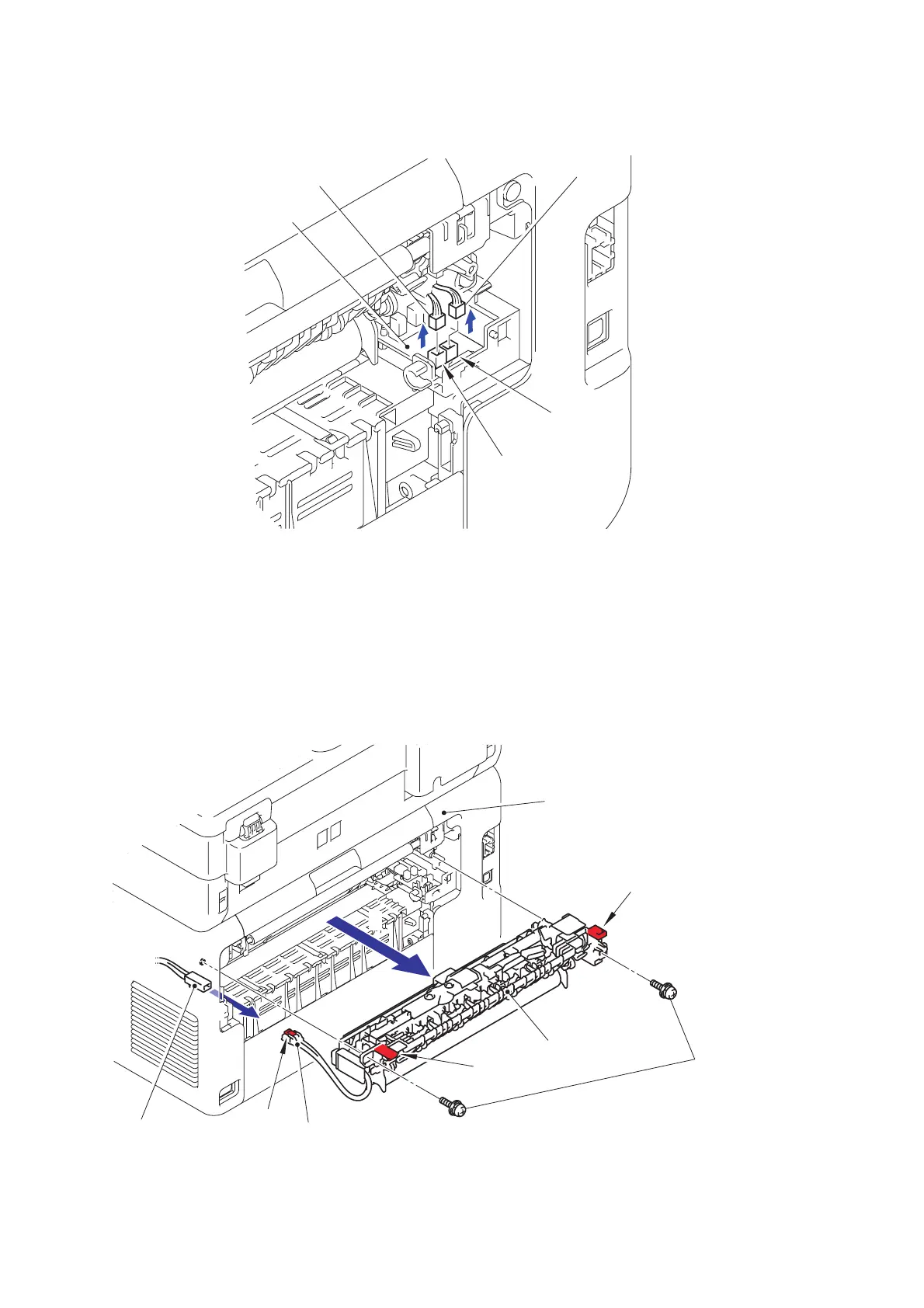

(4) Disconnect the two Connectors (CN4 and CN5) from the Eject sensor PCB ASSY.
Fig. 3-11
(5) Remove the two Taptite pan (washer) B M4x12 DA screws. Remove the Fuser unit from
the Main body holding the "A" parts.
(6) Disconnect the Electrode terminal of the Fuser unit from the Electrode terminal of the
Main body.
Fig. 3-12
CN4
CN5
Eject sensor PCB ASSY
Connector
Connector
<Back side>
Taptite pan (washer)
B M4x12 DA
Main body
Fuser unit
<Back side>
Electrode terminal
Electrode terminal
Hook
5
6
“A”
“A”

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
