Brother MFC-9330CDW Service Manual

3-133
Confidential
8.55 Registration Clutch

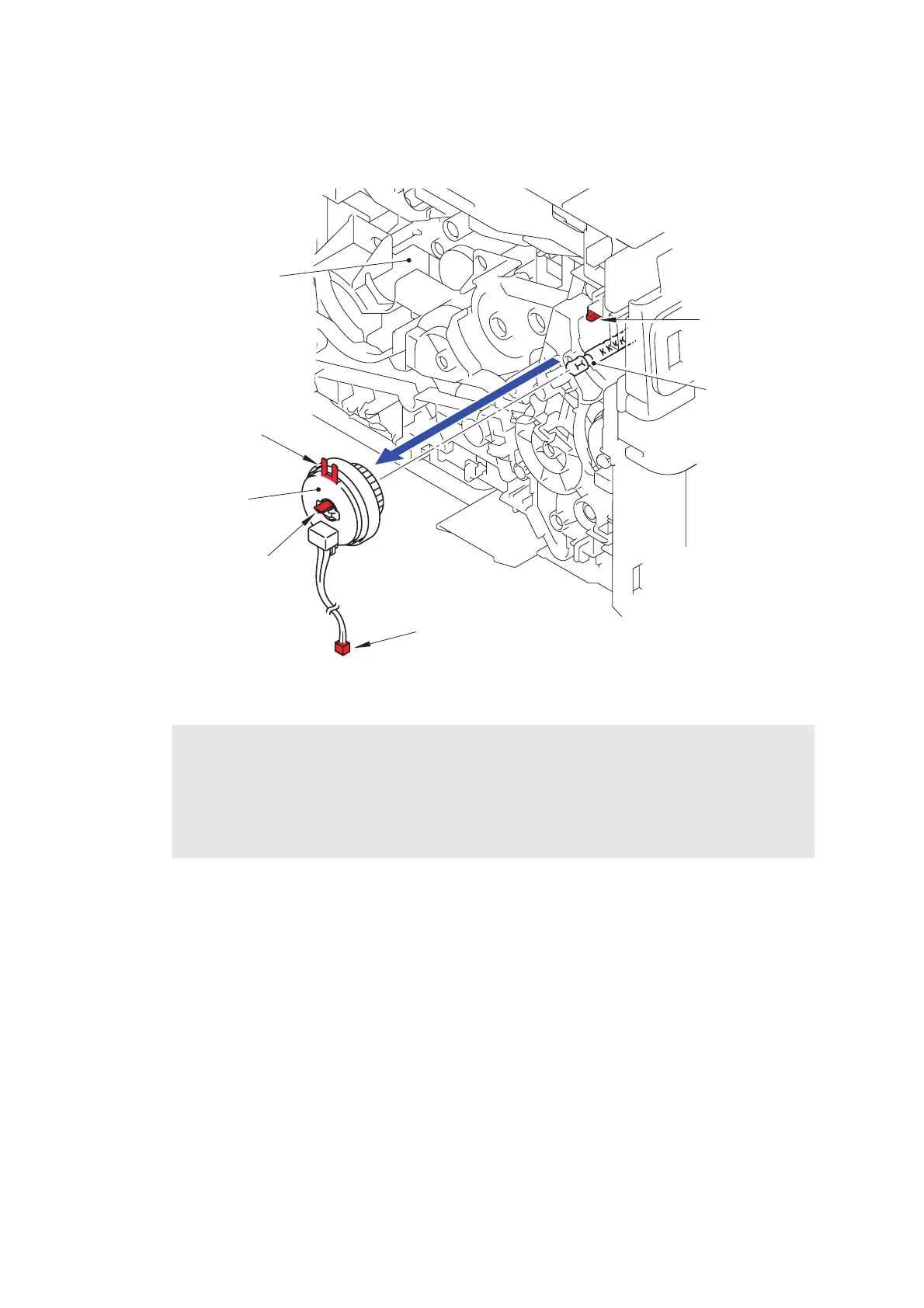

(1) Release the Hook to remove the Registration clutch from the PF registration drive joint.
Fig. 3-187
Assembling Note:
- When assembling the Registration clutch, attach the Rotation preventing hook to the Rib
of the Main body.
- Registration clutch and Paper feed clutch are both clutch parts, and they are identified
with connector colors. The connector of the Registration clutch is red. Be careful not to
install an incorrect clutch.
Hook
Registration clutch
<Left side>
Side frame L ASSY
PF registration
drive joint
Red connector
Rib
Rotation preventing hook

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
