Brother MFC-9330CDW - First Side CIS Unit;First Side CIS Flat Cable

3-104
Confidential

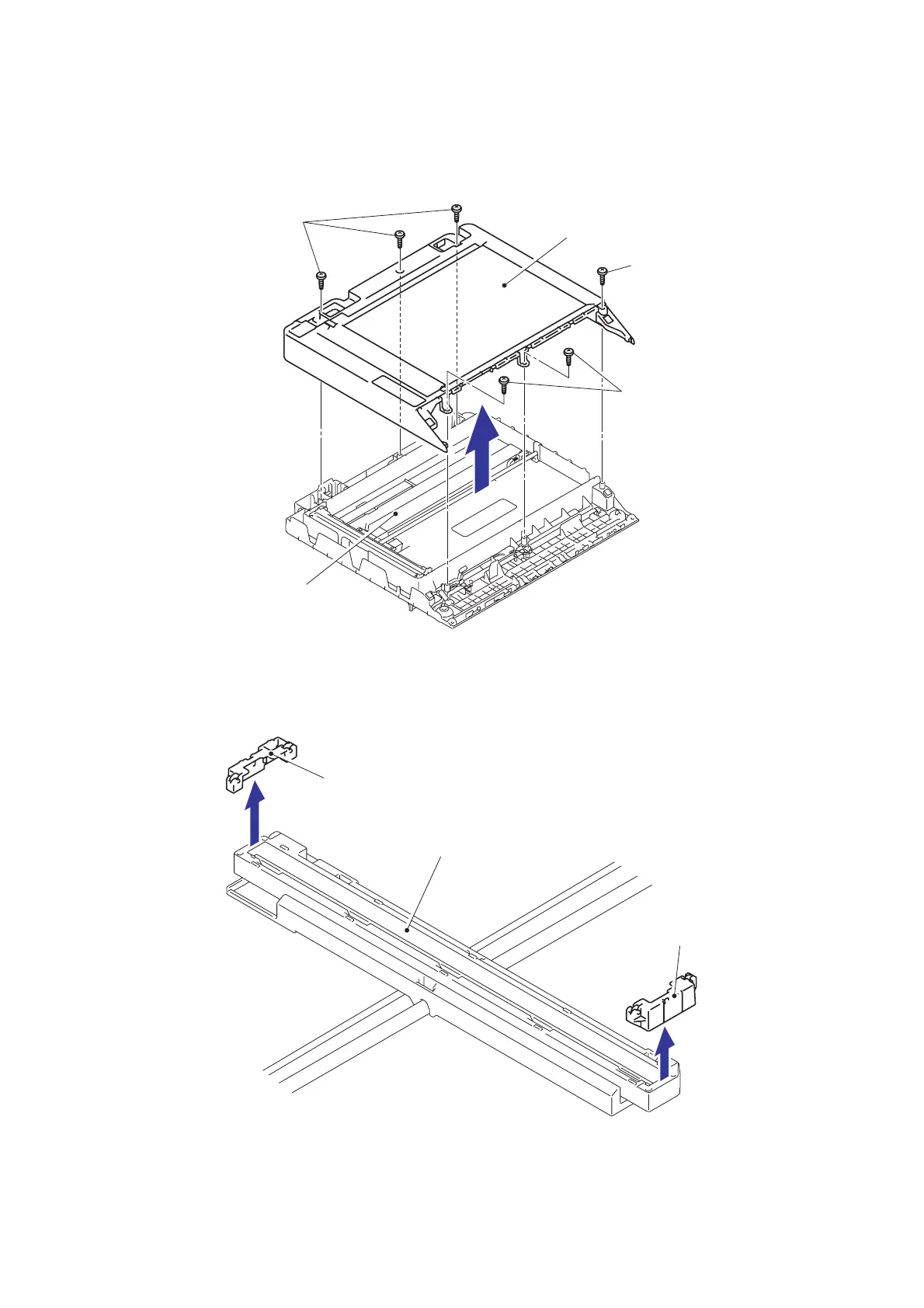

8.43 First Side CIS Unit/First Side CIS Flat Cable
(1) Remove the six Taptite bind B M4x12 screws to remove the Scanner top cover ASSY
from the Document scanner bottom cover ASSY.
Fig. 3-140
(2) Remove the CIS guide L and CIS guide R from the First side CIS unit.
Fig. 3-141
Taptite bind B M4x12
Scanner top cover ASSY
Taptite bind B M4x12
Taptite bind B M4x12
Document scanner bottom
cover ASSY
First side CIS unit
CIS guide R
CIS guide L
