3-105
Confidential

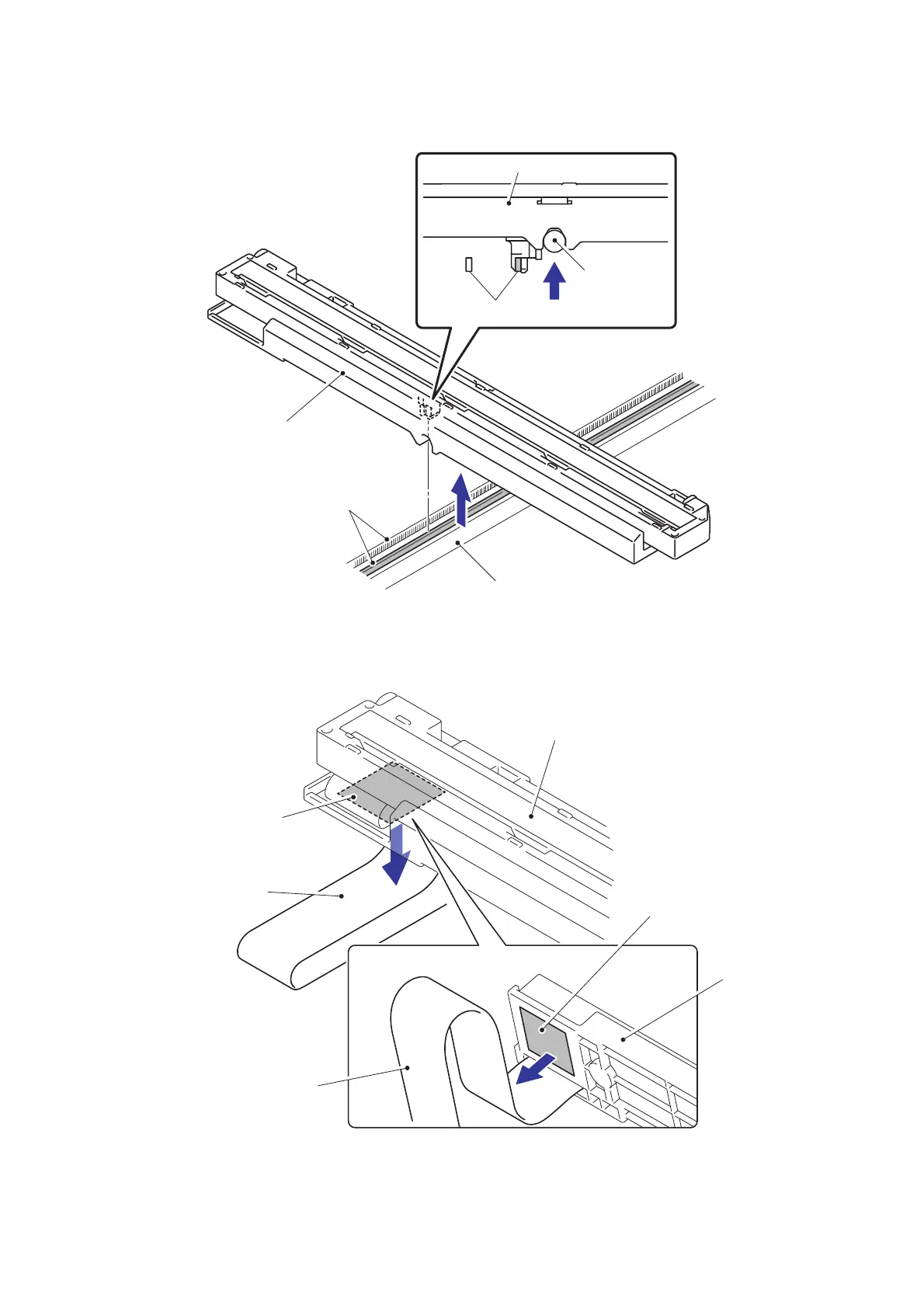

(3) Remove the First side CIS unit from the CIS drive belt.
Fig. 3-142
(4) Remove the Double-sided adhesive tape from the First side CIS flat cable.
Fig. 3-143
CIS drive belt
CIS drive belt
Guide shaft
Guide shaft
First side CIS unit
First side CIS unit
First side CIS unit
Double-sided adhesive tape
First side CIS flat cable
Double-sided adhesive tape
First side CIS
First side CIS flat cable
unit
