Brother MFC-9330CDW Service Manual

3-27
Confidential

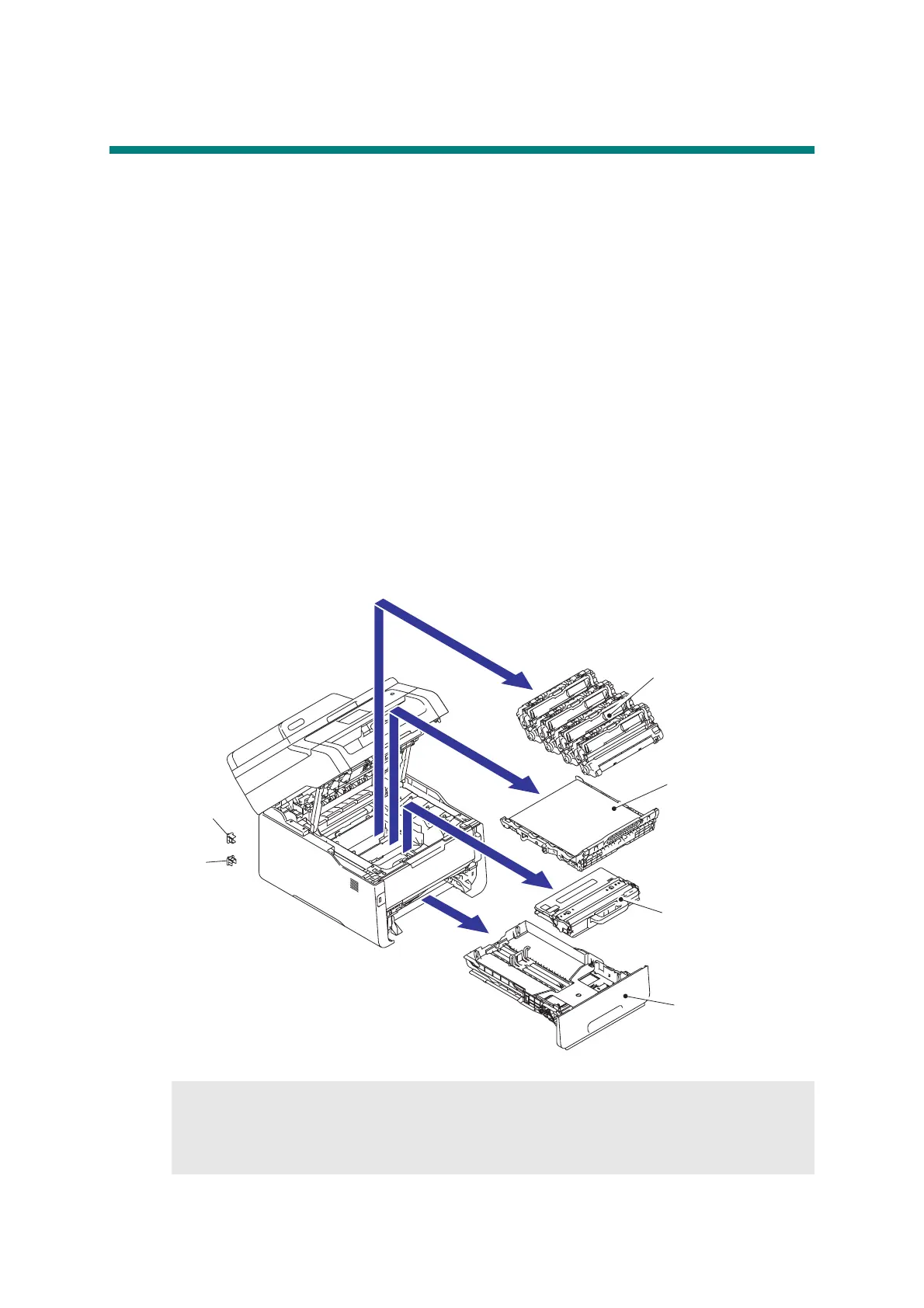

8. DISASSEMBLY PROCEDURE
■ Preparation
Prior to proceeding with the disassembly procedure,
(1) Unplug
-the AC cord,
- the USB cable, if connected, and
- the LAN cable, if connected.
(2) Remove
- the Paper tray,
- the Toner cartridge,
- the Drum unit,
- the Belt unit,
- the Waste toner box,
- EXT cap, and
- LAN port cap.
Backup of machine information (When replacing the main PCB):
Before starting repair work, back up the machine information and user setting information.
(Refer to "1.4.12 Backup of machine information" in Chapter 5.) After replacing the PCB,
restore the backup data to a new PCB.
Toner cartridge, Drum unit
Belt unit
Waste toner box
Paper tray
EXT cap
LAN port cap

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
