Brother MFC-9330CDW Service Manual

2-88
Confidential
4.3 Image Defect Troubleshooting

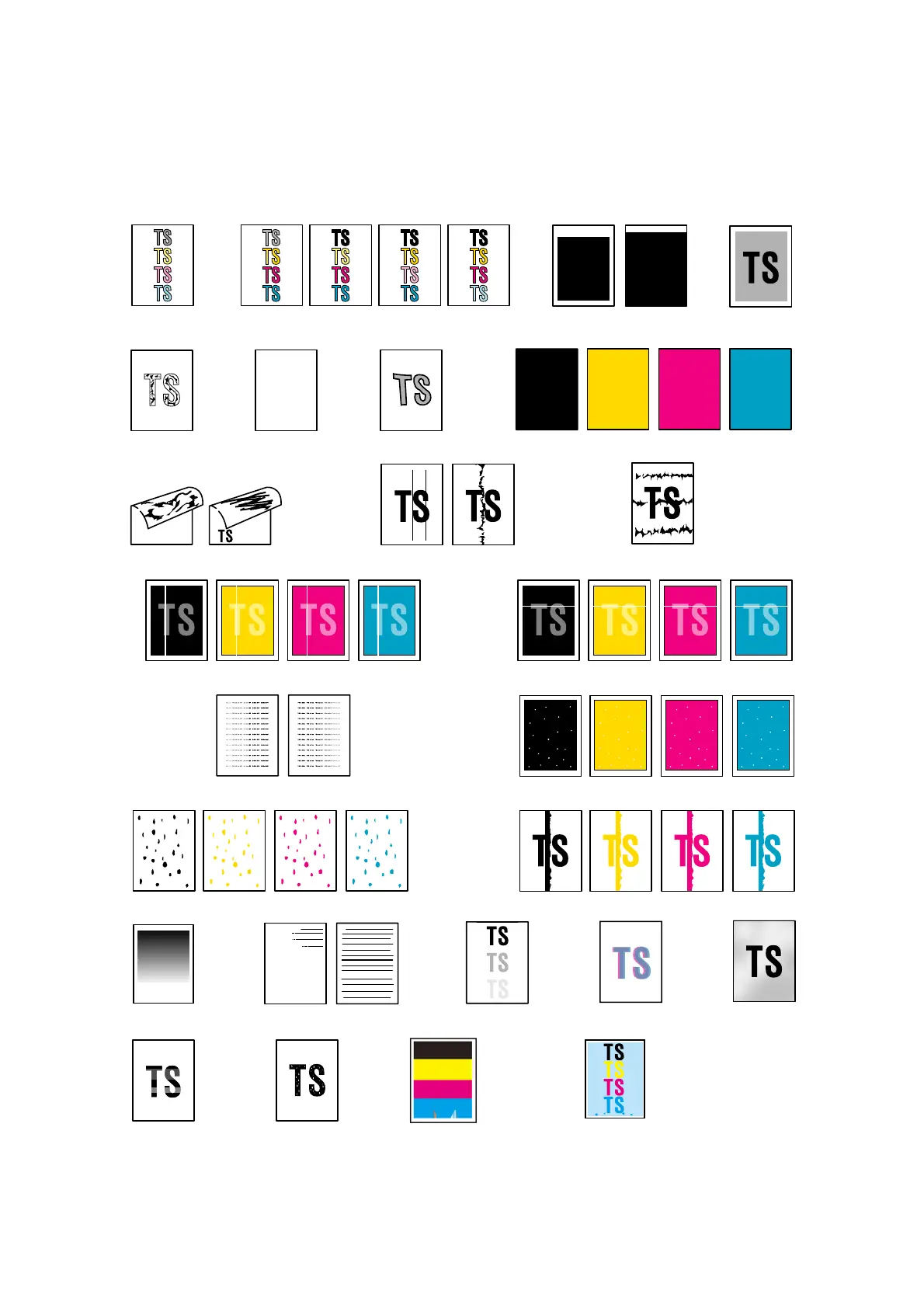

4.3.1 Image defect examples
Fig. 2-12
(2-100)
(2-101)
Spots at the rear edge of paper
Light on the whole
page (2-89)
One color is light (2-89) Faulty registration (2-90) Dark (2-90)
Poor fixing
Completely blank
(2-91)
Image distortion
(2-92)
All one color (2-92)
Dirt on back side of paper (2-93) Vertical streaks (2-94) Horizontal stripes (2-95)
Light vertical steaks and bands on one color image (2-95) White horizontal stripes on one color image (2-96)
Faint print (2-96) White spots on one color image (2-97)
One color spots or dirt (2-98) One color band (2-99)
Downward fogging
of solid color (2-99)
Horizontal lines (2-99)
Ghost (2-100) Color
misregistration (2-100)
Fogging
Unstable color density Hollow print Print crease
(2-102) (2-102)(2-101)
(2-91)

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
