Brother MFC-9330CDW Service Manual

3-139
Confidential

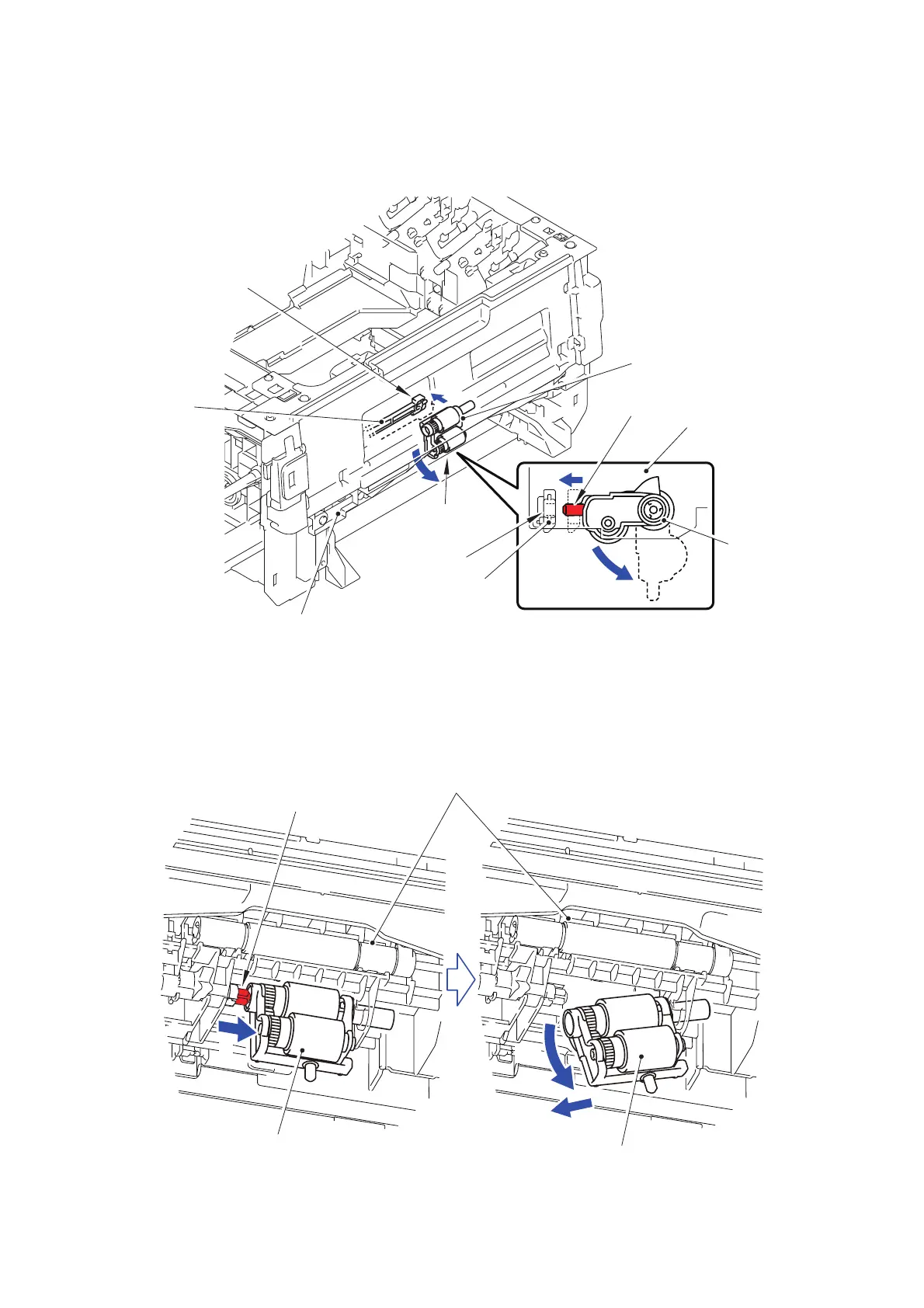

8.58 Roller Holder ASSY
(1) Push the Lift arm to the back and remove "B" of the Roller holder ASSY from "A" of the Lift
arm. Rotate the Roller holder ASSY in the direction of the arrow 1b.
Fig. 3-197
(2) Slide the Roller holder ASSY in the direction of the arrow 2 to remove it from the "C" of the
Paper feed unit.
(3) Slide the Roller holder ASSY in the direction of the arrow 3a and 3b in this order to
remove it from the Paper feed unit.
Fig. 3-198
Lift arm
Roller holder ASSY
1a
1b
1a
1b
“B”
“A”
Lift arm
“A”
Paper feed unit
Paper feed unit
“B”
Roller holder
ASSY
<Front side>
2
“C”
Paper feed unit
3b
Roller holder ASSY
Roller holder ASSY
3a

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
