Brother MFC-9330CDW Service Manual

5-2
Confidential
1.2 How to Enter the End User-accessible Maintenance Mode
Basically, the maintenance-mode functions listed in the next page should be accessed by
service personnel only. However, you can allow end users to access some of these under the
guidance of service personnel by phone, for example. The end user-accessible functions are
shaded in the table given on the next page. (codes 06, 09, 10, 11, 12, 25, 41, 43, 45, 52, 53,
54, 61, 66, 68, 71, 72, 77, 80, 82, 87, 88 and 91)
<Operating procedure>

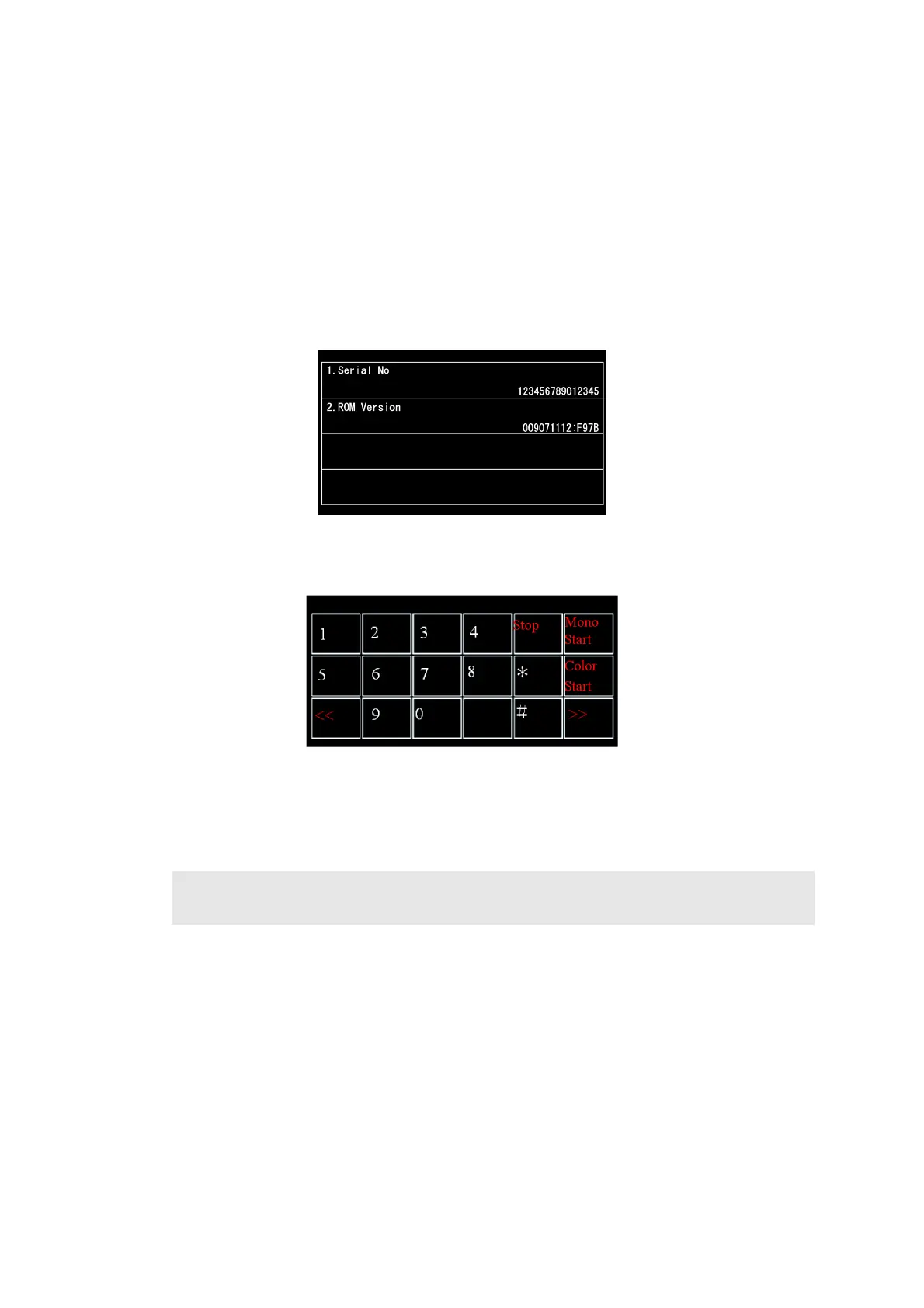

(1) Hold down the Home key for about 5 seconds while the machine is in the ready state.
The following screen is displayed on the LCD.
(2) Hold down the blank space at the bottom of the LCD for about 2 seconds. The following
screen is displayed on the LCD.
(3) Press the *, 0, and # keys on the LCD in this order. The machine gets ready for the input
of a function code. Enter the function code you want to use.
(4) When each of the maintenance mode functions is completed, the machine automatically
returns to the ready state.
Note:
To cancel an operation and return the machine to the ready state, press the Stop key.

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
