Brother MFC-9330CDW Service Manual

3-46
Confidential
8.13 Flat Cable Holder Cover

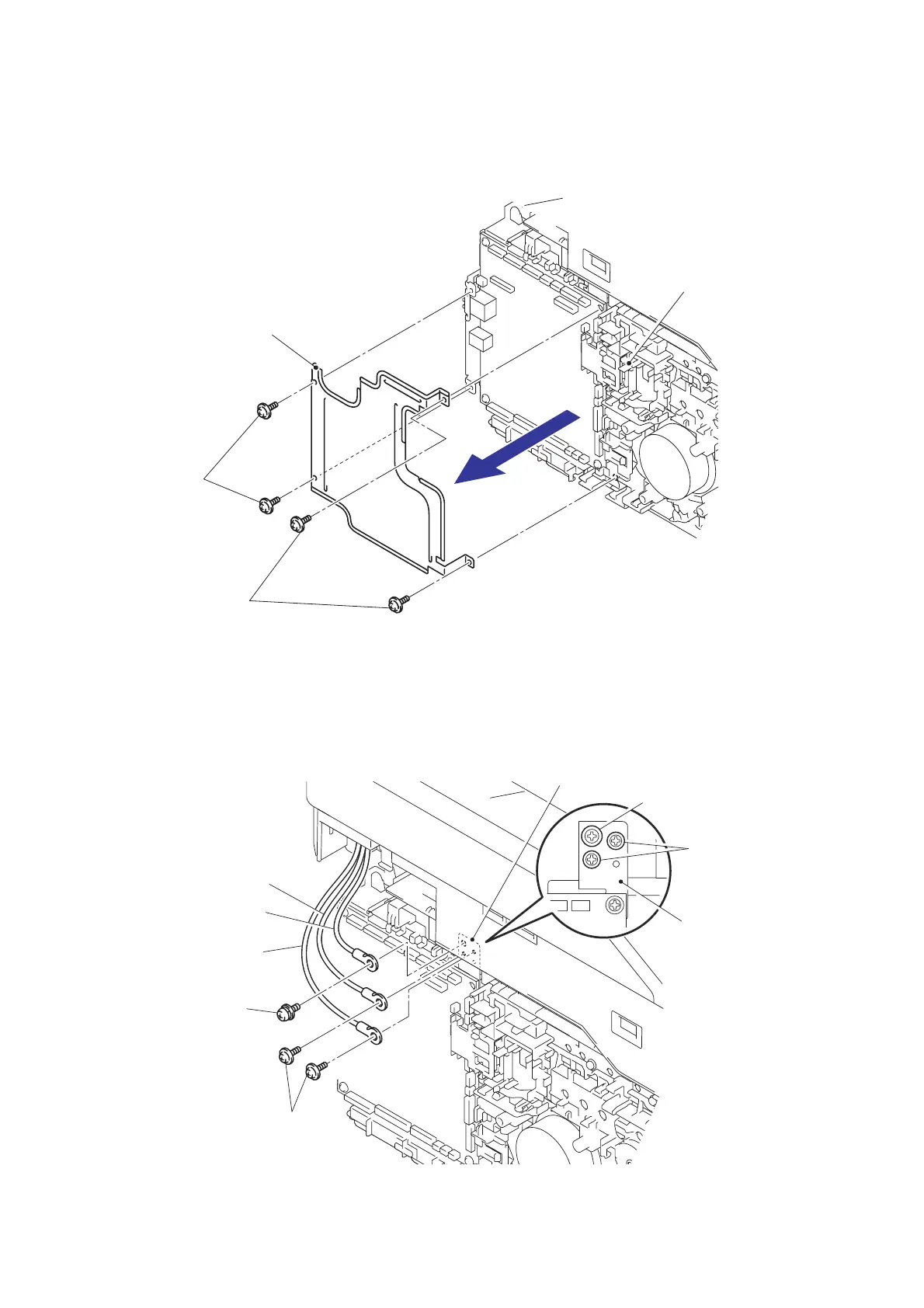

(1) Remove the four Taptite cup S M3x8 SR screws to remove the Main shield cover plate
from the Side frame L ASSY.
Fig. 3-32
(2) Remove the Screw pan (S/P washer) M3.5x6 screw to remove the Modem FG harness
from the Main body.
(3) Remove the Taptite cup S 3x8 SR screw to remove the ADF FG harness from the Main
body.
(4) Remove the Taptite cup S 3x8 SR screw to remove the Panel FG harness from the Main
body.
Fig. 3-33
Taptite cup S
Taptite cup S M3x8 SR
Side frame L ASSY
Main shield cover plate
<Left side>
M3x8 SR
Screw pan (S/P washer) M3.5x6
Taptite cup S 3x8 SR
Taptite cup S 3x8 SR
Main shield plate
M
a
i
n s
hi
e
ld
p
l
ate
ADF FG harness
Modem FG harness
Panel FG harness
Screw pan (S/P washer)
M3.5x6

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
