Brother MFC-9330CDW Service Manual

3-47
Confidential

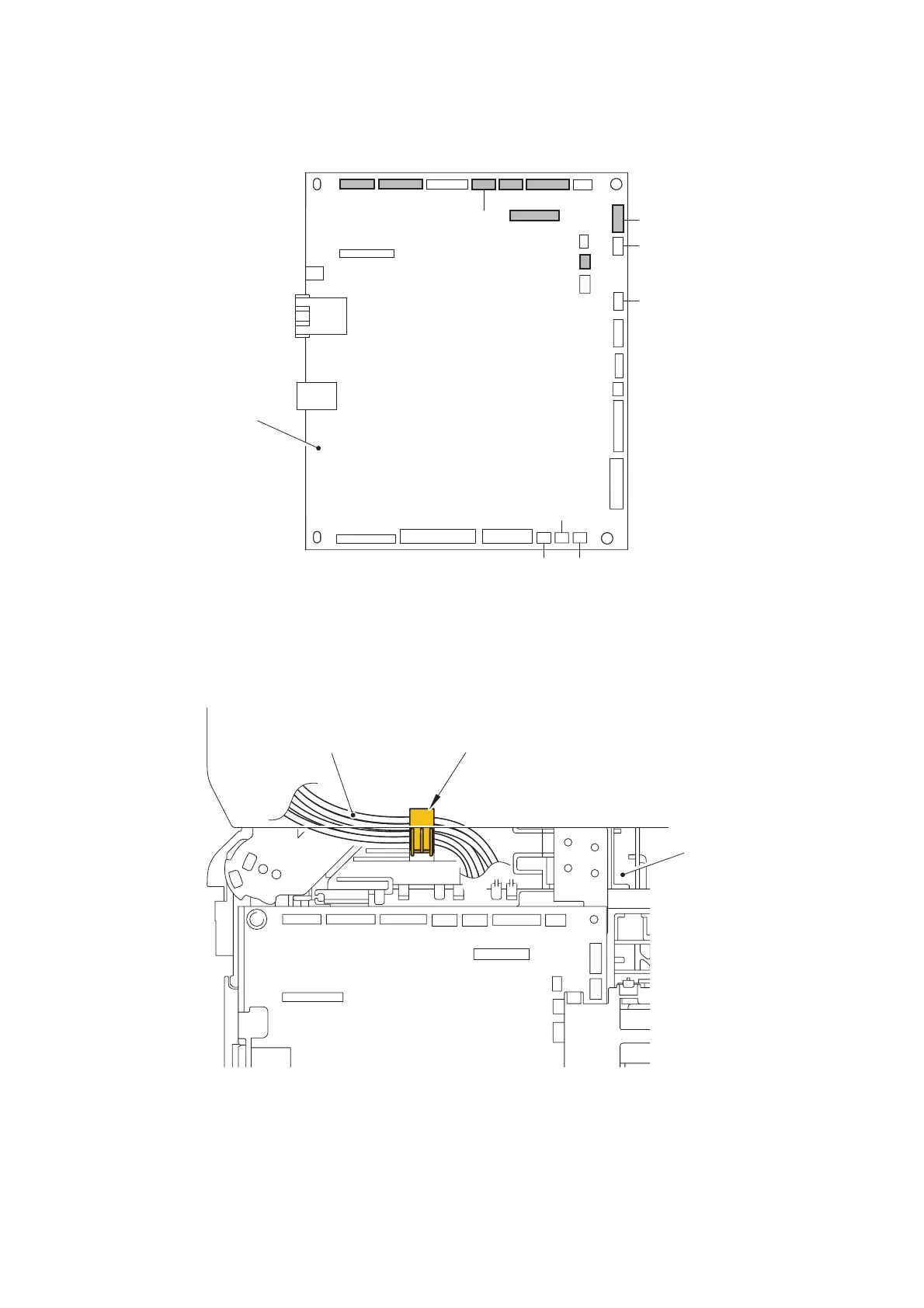

(5) Disconnect the six Connectors (CN8, CN23, CN24, CN25, CN26 and CN27) and two Flat
cables (CN29 and CN30) from the Main PCB ASSY.
Fig. 3-34
(6) Remove the all harnesses from the Hook.
Fig. 3-35
CN30
CN22
CN19
CN15
CN11
CN4
CN3 CN2
CN1 CN6
CN5
CN29 CN28 CN26 CN23
CN8
CN21
CN27
CN20
CN14
CN25
CN24
CN16
CN9
CN13
CN12
CN10
CN7
CN17
Main PCB ASSY
Hook
Harness
Side frame L ASSY
<Front side>

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
