Brother MFC-9330CDW Service Manual

2-100
Confidential

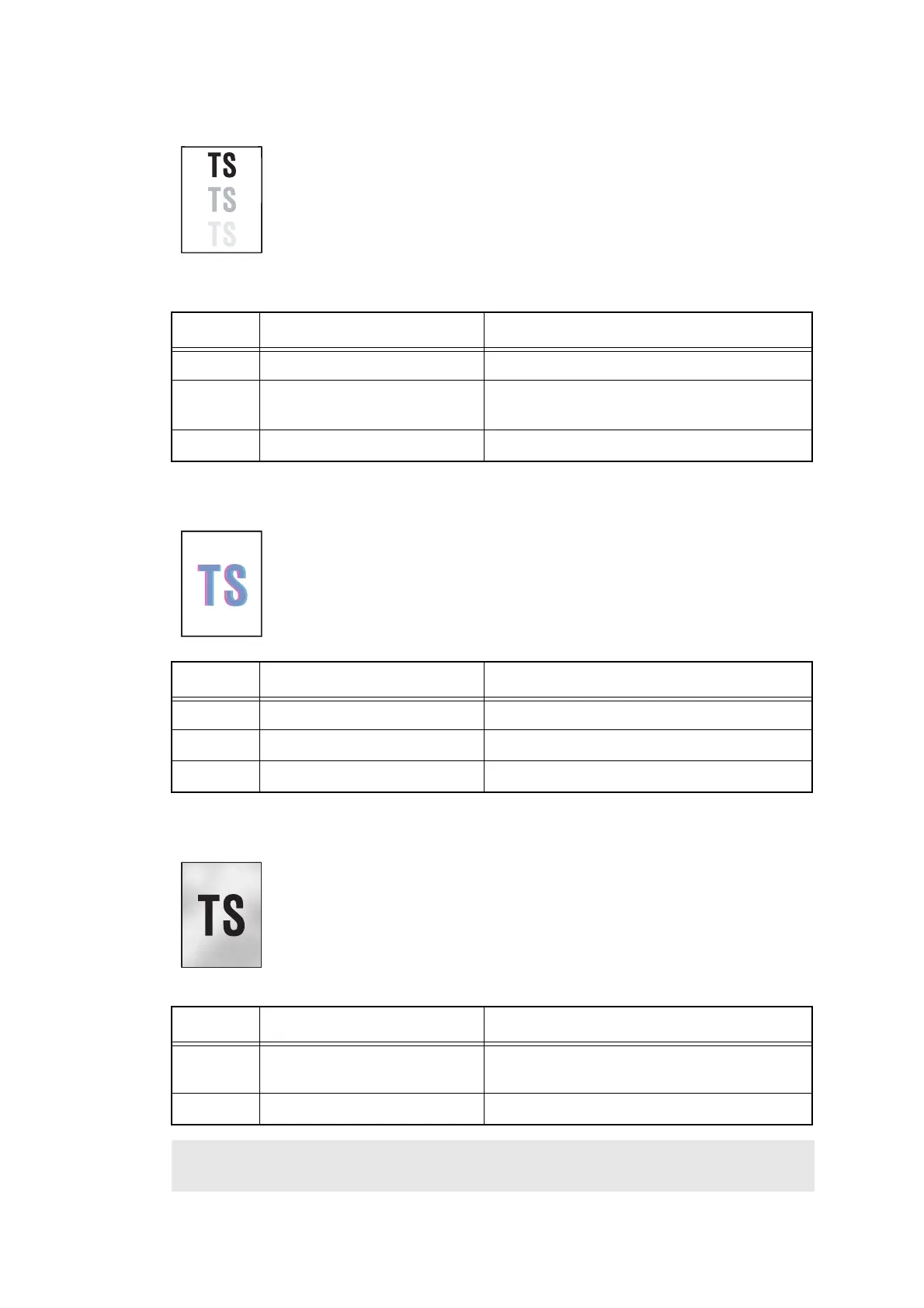

■ Ghost
■ Color misregistration
■ Fogging
<User Check>
- Check the machine’s environment. High temperature and high
humidity or low temperature and low humidity conditions can cause this
problem.
- Check whether appropriate paper type is selected on the driver.
- Select "Improve Toner Fixing Mode" in the driver.
- Replace the drum unit with a new one.
Step Cause Remedy
1 Fuser unit failure Replace the fuser unit.
2 High-voltage power supply
PCB failure
Replace the high-voltage power supply PCB
ASSY.
3 Main PCB failure Replace the main PCB ASSY.
<User Check>
- Implement the adjustment of color registration (adjustment of inter-color
position alignment).
- Replace the drum unit with a new one.
- Replace the belt unit with a new one.
- Replace the waste toner box with a new one.
Step Cause Remedy
1 Registration mark L failure Replace the registration mark L PCB ASSY.
2 Registration mark R failure Replace the registration mark R PCB ASSY.
3 Main PCB failure Replace the main PCB ASSY.
<User Check>
- Check the machine’s environment. High temperature and high
humidity or low temperature and low humidity conditions can cause this
problem.
- This symptom might stop occurring after making several prints.
- Replace the drum unit or toner cartridge with a new one.
- Do not use acid paper.
Step Cause Remedy
1 High-voltage power supply
PCB failure
Replace the high-voltage power supply PCB
ASSY.
2 Main PCB failure Replace the main PCB ASSY.
Note:
This problem often occurs when the drum unit or toner cartridge is nearly at the end of life.
