Brother MFC-9330CDW Service Manual

3-80
Confidential
8.33 Flat Cable Cover/Holder Hook/LED ASSY
(1) Release the Lock. Disconnect the two Flat cables (CN22 and CN28) from the Main PCB
ASSY.

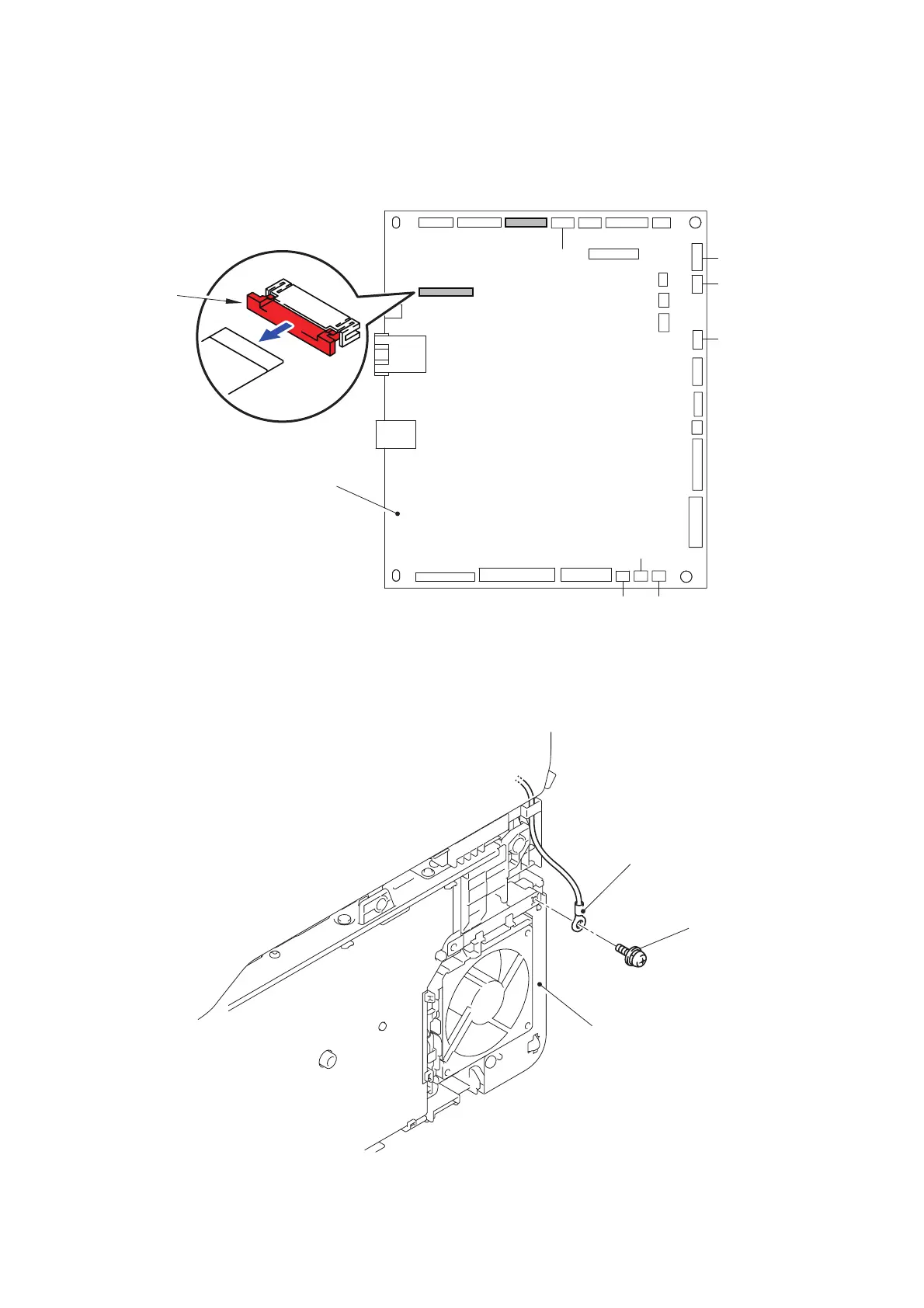

Fig. 3-97
(2) Remove the Taptite pan (washer) B M4x12 DA screw to remove the LED FG harness
from the Side frame R ASSY.
Fig. 3-98
CN30
CN22
CN19
CN15
CN11
CN4
CN3 CN2
CN1 CN6
CN5
CN29 CN28 CN26 CN23
CN8
CN21
CN27
CN20
CN14
CN25
CN24
CN16
CN9
CN13
CN12
CN10
CN7
CN17
Main PCB ASSY
Lock
Taptite pan (washer)
B M4x12 DA
LED FG harness
Side frame R ASSY
