Brother MFC-9330CDW Service Manual

3-49
Confidential
8.14 Hinge ASSY L/ADF Unit

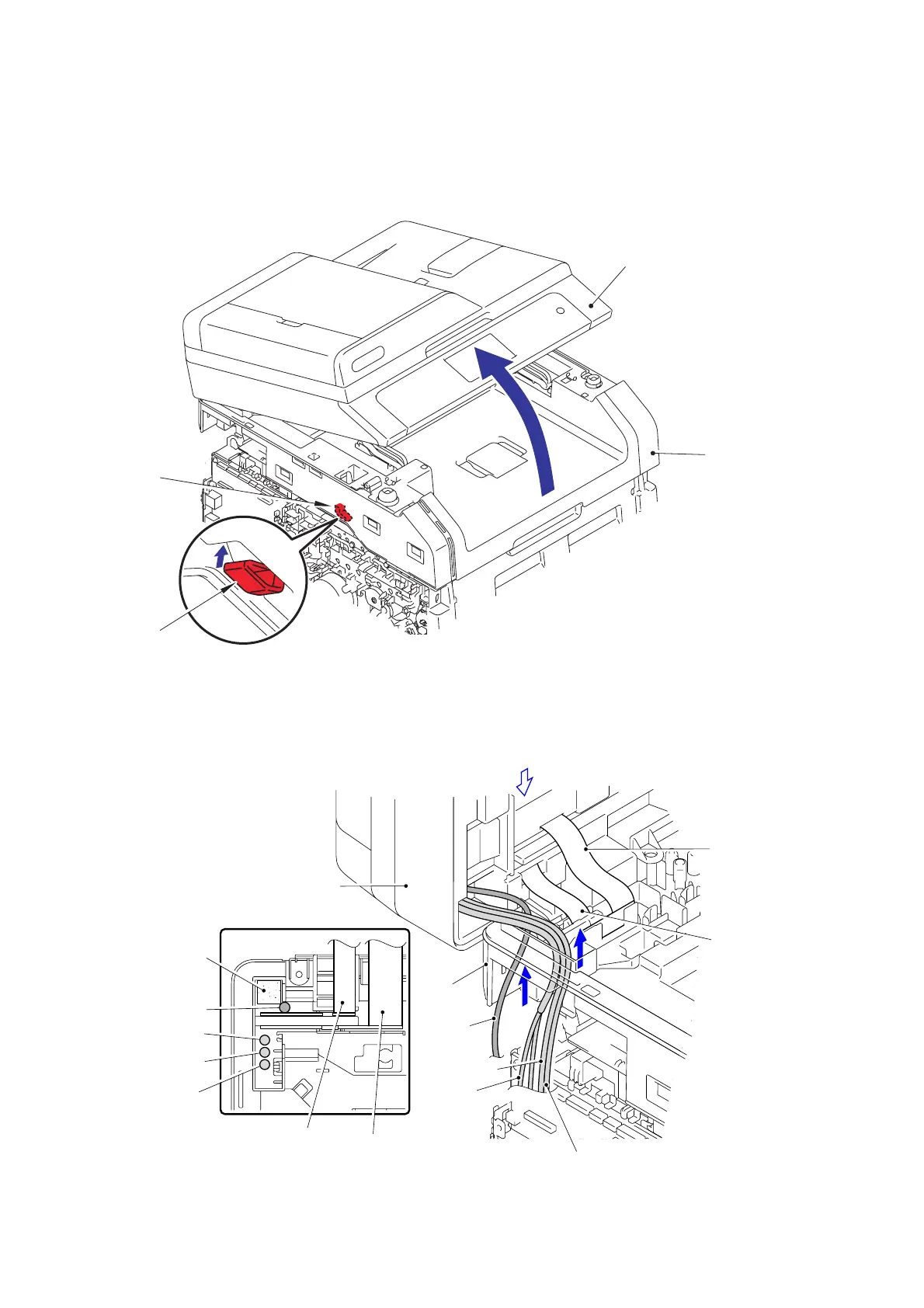

(1) Close the Joint cover ASSY.
(2) While pushing up the Lever, open the Document scanner unit.
Fig. 3-38
(3) Pull out the harness from the Joint cover ASSY.
(4) Pull out the First side CIS flat cable from the Joint cover ASSY.
(5) Pull out the Second side CIS flat cable from the Joint cover ASSY.
Fig. 3-39
Joint cover ASSY
Document scanner unit
Lever
Lever
2b
2a
<Front side>
Joint
ADF
Panel USB
Document scanner unit
First side CIS
Second side CIS
Document
Panel harness
flat cable
flat cable
cover
ASSY
harness
ADF harness
Document scanner unit harness
scanner unit
Panel harness
Panel USB
harness
First side CIS
Second side CIS
A view
<A view>
harness
harness
flat cable
flat cable
Sponge

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
