Brother MFC-9330CDW Service Manual

3-156
Confidential
8.67 Main Fan

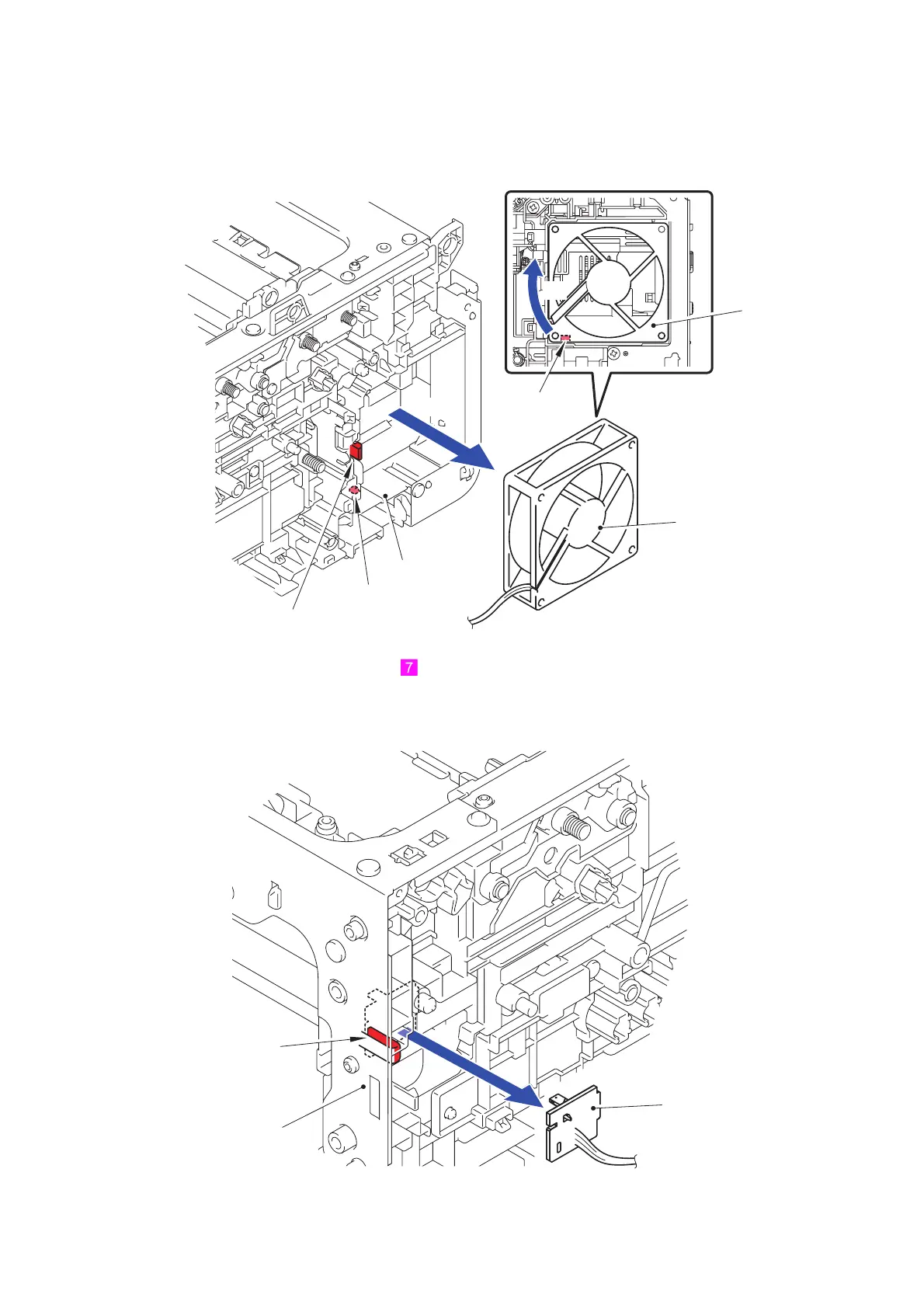

(1) As the two Hooks being removed, remove the Main fan from the Side frame R while
rotating the fan in the direction of the arrow 1a.
Fig. 3-226
Harness routing: Refer to " Main Fan"
8.68 Develop Release Sensor PCB ASSY
(1) Release the Hook to remove the Develop release sensor PCB ASSY from the Side frame R.
Fig. 3-227
Hook
Side frame R
Main fan
Main fan
1b
1a
Hook
Hook
<Right side>
Hook
Side frame R
Develop release sensor
PCB ASSY

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
